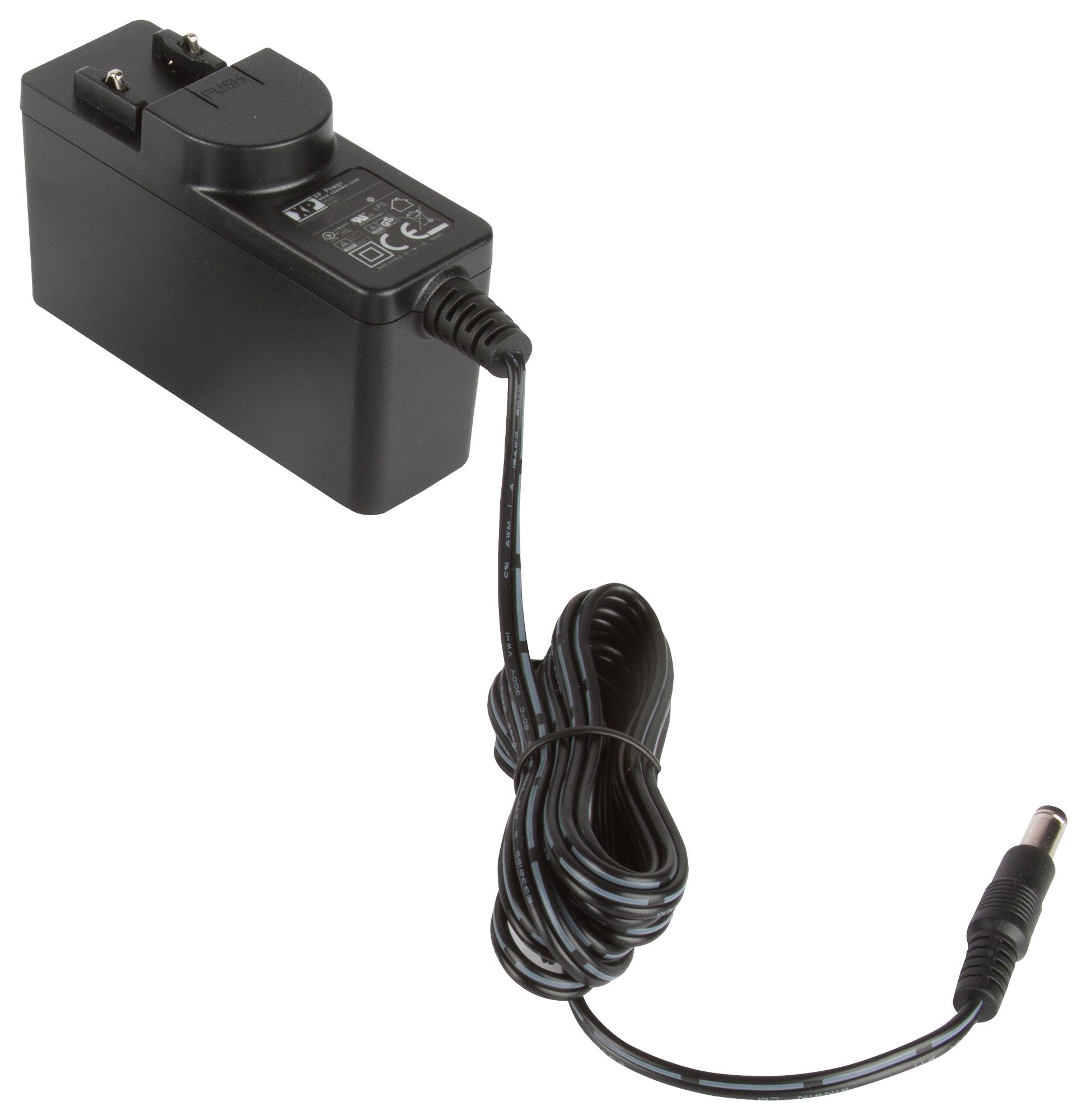

XP POWER ACM12US15 Power Adapter
The ACM12 series offers efficient 12-watt AC-DC power adapters suitable for industrial and medical applications. Compliant with energy efficiency Level VI and European CoC Tier 2 standards, these adapters feature interchangeable mains connectors, optional white versions, and output voltages from 5 V to 24 V. Designed with class II construction, they provide reliable performance, low no-load power consumption, and a 3-year warranty. Dimensions are approximately 76 x 30.3 x 48.2 mm, supporting a wide range of voltage and current levels for diverse industrial and medical device requirements.
XP POWER ACM12US15 Power Adapter Specifications:
- Power Output: 12W
- Output Voltages: 5 V, 9 V, 12 V, 15 V, 18 V, 24 V
- Output Currents: 2000 mA, 1330 mA, 4000 mA, 800 mA, 666 mA, 500 mA
- Dimensions: 76 x 30.3 x 48.2 mm (ACM body only)
- Efficiency: Up to 85.7%
- Isolation: 4000 VAC input to output, 2 x MOPP
- Operating Temperature: 5°C to +60°C
- Environmental: Humidity 5-90% RH, non-condensing
- Certifications: UL, IEC, CSA, CE
- Compliance: Energy Efficiency Level VI, European CoC Tier 2
- Warranty: 3 years
- Switching Frequency: 24-70 kHz
- Leakage Current: 30-100 uA at 264 VAC
- Switching Power Supplies for industrial and medical applications
- Green energy efficient design with low no-load consumption
Buy the XP Power ACM12 – Reliable Power Adapter for Industrial Applications
Purchase the XP Power ACM12 power supply online today to benefit from industry-leading efficiency, low noise operation, and versatile output options. Ideal for industrial and medical use, this power adapter offers high reliability, compliance with safety standards, and a 3-year warranty. With interchangeable connectors and multiple voltage options, it ensures seamless integration into your equipment. Order now to experience robust performance, energy savings, and trusted quality designed for demanding industrial environments.
Buy XP Power ACM12 series power supply now and ensure reliable performance for your industrial or medical devices with energy-efficient design.
