XP POWER TR2024S09 Switching Voltage Regulator
The TR20 is a compact switching voltage regulator capable of operating from a wide input voltage range up to 36V DC. It provides a regulated output voltage starting from 1.2V, with a maximum output of 15V DC. The device features a SIP3 package, is non-isolated, and offers high efficiency up to 96%. It consumes just 1mA of standby current and includes short circuit protection. Designed for minimal external components, it meets Class B conducted and radiated emission standards.
XP POWER TR2024S09 Switching Voltage Regulator Specifications:
- Input Voltage Range: 3V to 36V DC
- Output Voltage: 1.2V to 15V DC
- Maximum Output Current: 2A
- Efficiency: Up to 96%
- Package: SIP3
- Regulation: Line regulation ±0.2%, Load regulation 1-2%
- Standby Input Current: 1mA
- Temperature Range: -40°C to +100°C
- Short Circuit Protection: Yes
- Isolation: Non-isolated
- Operating Frequency: 1200/40 kHz
- Dimensions: 0.55 x 0.30 x 0.40 inches (14.0 x 7.5 x 10.1 mm)
- Weight: Approximately 0.005 lbs (2.4 g)
- Certification: Meets Class B conducted and radiated emissions standards
- MTBF: Over 2.6 million hours

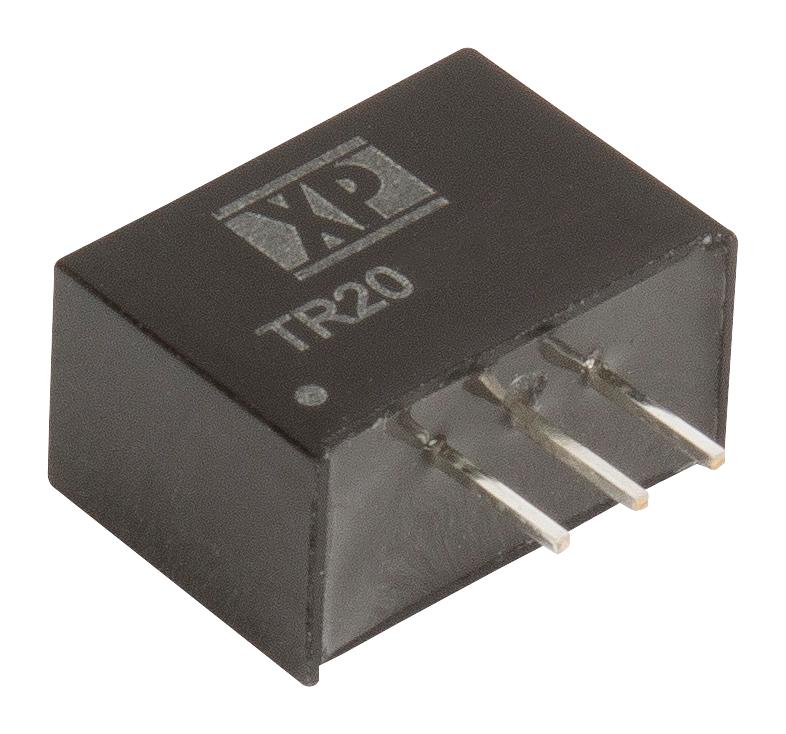

Buy the Buy XP Power DC-DC Converter Part Number TR2024S09 Online
Purchase the XP Power TR2024S09 switching voltage regulator online today. This compact, high-efficiency device operates from a wide input range up to 36V DC, providing regulated outputs from 1.2V to 15V. With a SIP3 package, non-isolated design, and efficiency up to 96%, it is ideal for space-constrained electronic projects. It features short circuit protection, low standby current of just 1mA, and reliable operation over a temperature range of -40°C to +100°C. Acquire this durable power solution easily online now.
Get XP Power TR2024S09 today—built for precision, efficiency up to 96%, and long-lasting durability in your power regulation applications.
Frequently Asked Questions
Where can I buy XP POWER TR2024S09?
You can click on the BUY or RFQ button to purchase TR2024S09 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part TR2024S09?
You can download the TR2024S09 datasheet or visit the XP POWER website for support.
Who is the manufacturer of TR2024S09?
XP POWER
