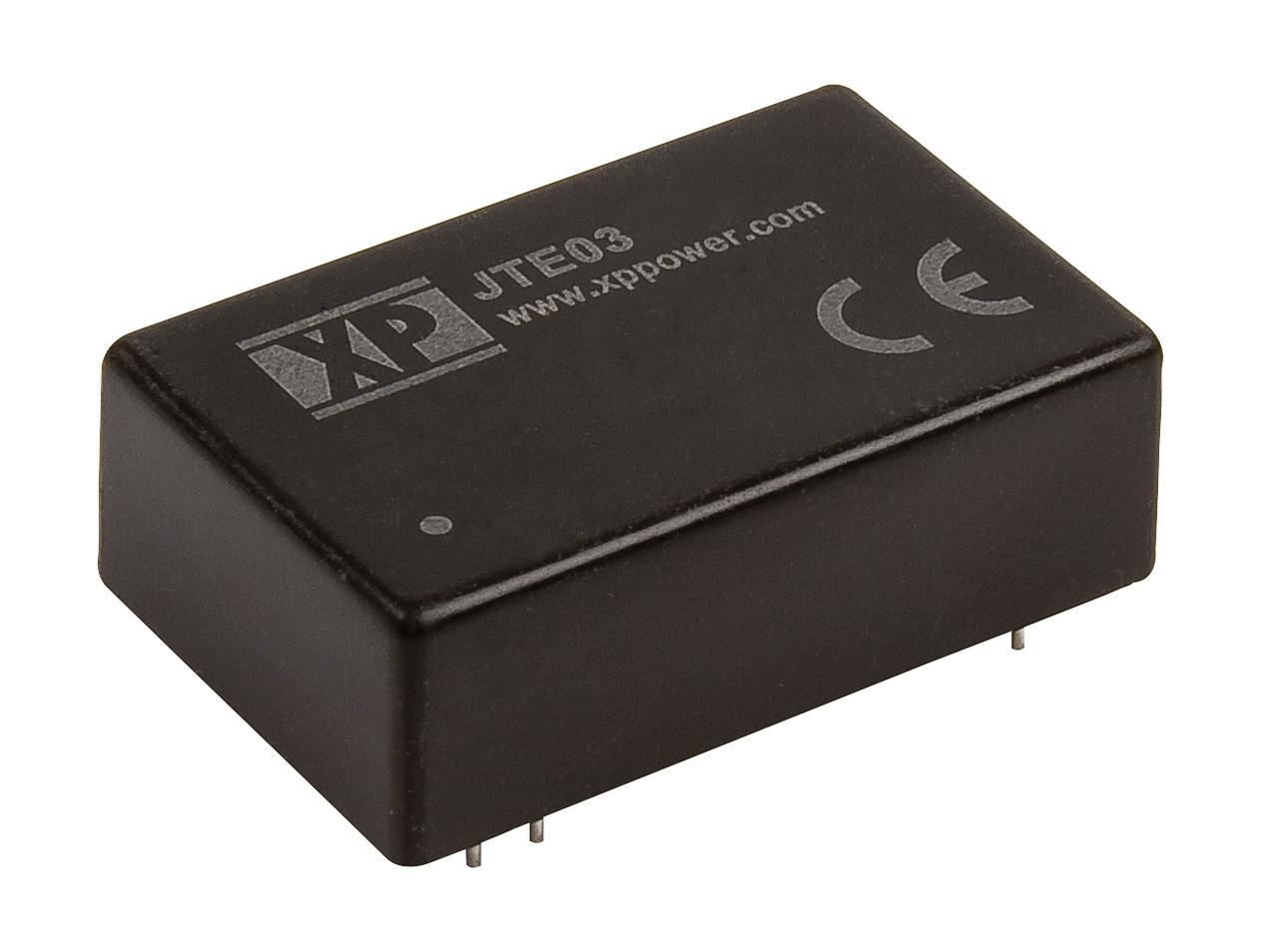

XP POWER JTE0348S15 DC-DC Converter
The JTE03 series offers an ultra-wide 4:1 input voltage range from 9V to 36V or 18V to 75V DC, making it ideal for various industrial and automation applications. It includes models with five single output voltages and five dual outputs, providing flexible power solutions in a standard DIP 24 package. These converters feature built-in overload and short circuit protection, are convection-cooled without fans, and operate reliably within -40°C to 100°C, with derating above 85°C. Optional versions support 3,000V DC isolation for safety-critical systems, suitable for sensing, instrumentation, and process control. The device ensures efficient energy transfer and system stability in harsh environments.
XP POWER JTE0348S15 DC-DC Converter Specifications:
- Input Voltage Range: 9V-36V DC (nominal 24V), or 18V-75V DC (nominal 48V)
- Output Voltage Options: 3.3V, 5V, 12V, 15V, 24V; Single or dual outputs available
- Isolation Voltage: Standard 1500V DC, optional 3000V DC with '-H' suffix
- Operating Temperature: -40°C to 100°C, derating starts at 85°C
- Maximum Case Temperature: 100°C, no minimum load required
- Efficiency: Up to 82%, depend on model
- Dimensions: 1.25 x 0.80 x 0.40 inches (31.75 x 20.32 x 10.16 mm)
- Protection: Overload and short circuit protected, continuous operation in fault conditions
- Cooling: Convection cooled, no fans or heat sinks needed
- Certifications: UL, CE, CSA suitable for industrial safety standards
- Protection Features: Overcurrent, short circuit, and surge protection included
Buy the Buy XP Power JTEO3 Series DC-DC Converter Part Number JTEO348S15 Online
Enhance your automation and industrial projects by purchasing the XP Power JTEO3 Series DC-DC Converter online. Featuring an ultra-wide 4:1 input voltage range, 1500V DC isolation (with optional 3000V), and full protection circuitry, these converters deliver stable and efficient power. Perfect for sensing, instrumentation, and process control applications, they operate reliably from -40°C to 100°C without needing heat sinks or fans. Secure your supply chain today by ordering online for quick delivery and dedicated customer support.
Order your XP Power JTEO3 Series JTEO348S15 today and secure reliable, compact power conversion for your industrial sensing and automation systems.
Frequently Asked Questions
Where can I buy XP POWER JTE0348S15?
You can click on the BUY or RFQ button to purchase JTE0348S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JTE0348S15?
You can download the JTE0348S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JTE0348S15?
XP POWER
