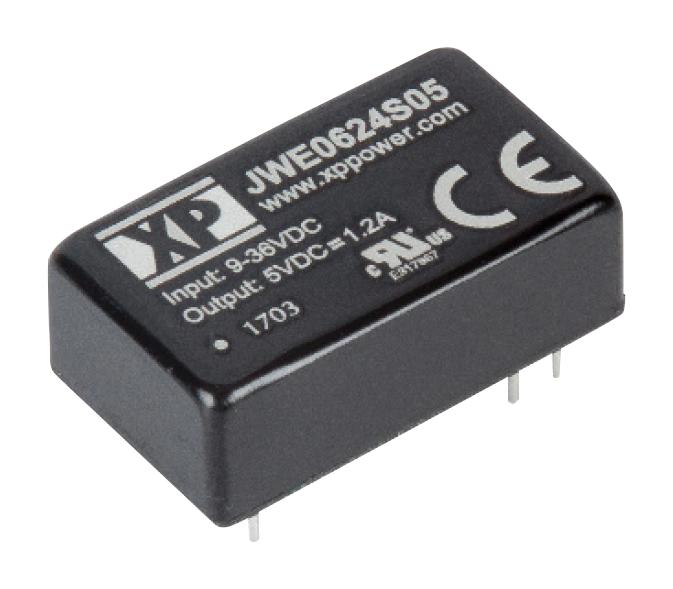

XP POWER JWE0624S3V3 DC-DC Converter
The JWEO6 Series DC-DC Converter from XP Power offers reliable 6-watt power with regulated single and dual outputs, ultra-wide input range, and high efficiency. It features a DIP16 package, 1500 VDC isolation, and operates from 9V to 75V input with output options from 3.3V to 24V. Designed for industrial applications, it provides full power up to +75°C, withstands temperature ranges from -40°C to +105°C, and has undergone comprehensive safety and EMC testing. Its compact metal case ensures durability, high power density, and stability for various electronic and industrial systems.
XP POWER JWE0624S3V3 DC-DC Converter Specifications:
- Input Voltage Range: 9.0V to 36V nominal, 18V to 75V nominal
- Output Power: 6 Watts
- Output Voltage: 3.3V, 5V, 12V, or 15V options
- Output Current: up to 1500 mA depending on model
- Isolation Voltage: 1500 VDC
- Operating Temperature: -40°C to +105°C
- Full Power Operation: up to +75°C
- Efficiency: Up to 87%
- Dimensions: 0.94 x 0.54 x 0.31 inches (23.8 x 13.7 x 8.0 mm)
- Package Type: DIP16
- Switching Frequency: 370 kHz
- Resilience: Meets safety standards UL 60950-1 and CISPR Class A EMC requirements
- Features: Hiccup mode short circuit protection, high power density, metallic case, natural convection cooling
Buy the XP Power Series JWEO6 6W DC-DC Converter: JWE0624S3V3
Purchase the XP Power JWEO6 Series 6-watt DC-DC converter online today for reliable power conversion with regulated outputs, ultra-wide input voltage, isolation, and high efficiency. Designed with a compact DIP16 package and robust metal case, this converter is suitable for industrial, embedded, and automation applications. It offers full power operation up to 75°C, features comprehensive safety approvals, and ensures durability in demanding environments. Secure your supply of high-quality power converters online with easy, fast delivery, and dedicated customer support.
Get XP Power JWEO6 6W DC-DC Converter today—built for precise voltage regulation and long-lasting durability in industrial systems.
Frequently Asked Questions
Where can I buy XP POWER JWE0624S3V3?
You can click on the BUY or RFQ button to purchase JWE0624S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part JWE0624S3V3?
You can download the JWE0624S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of JWE0624S3V3?
XP POWER
