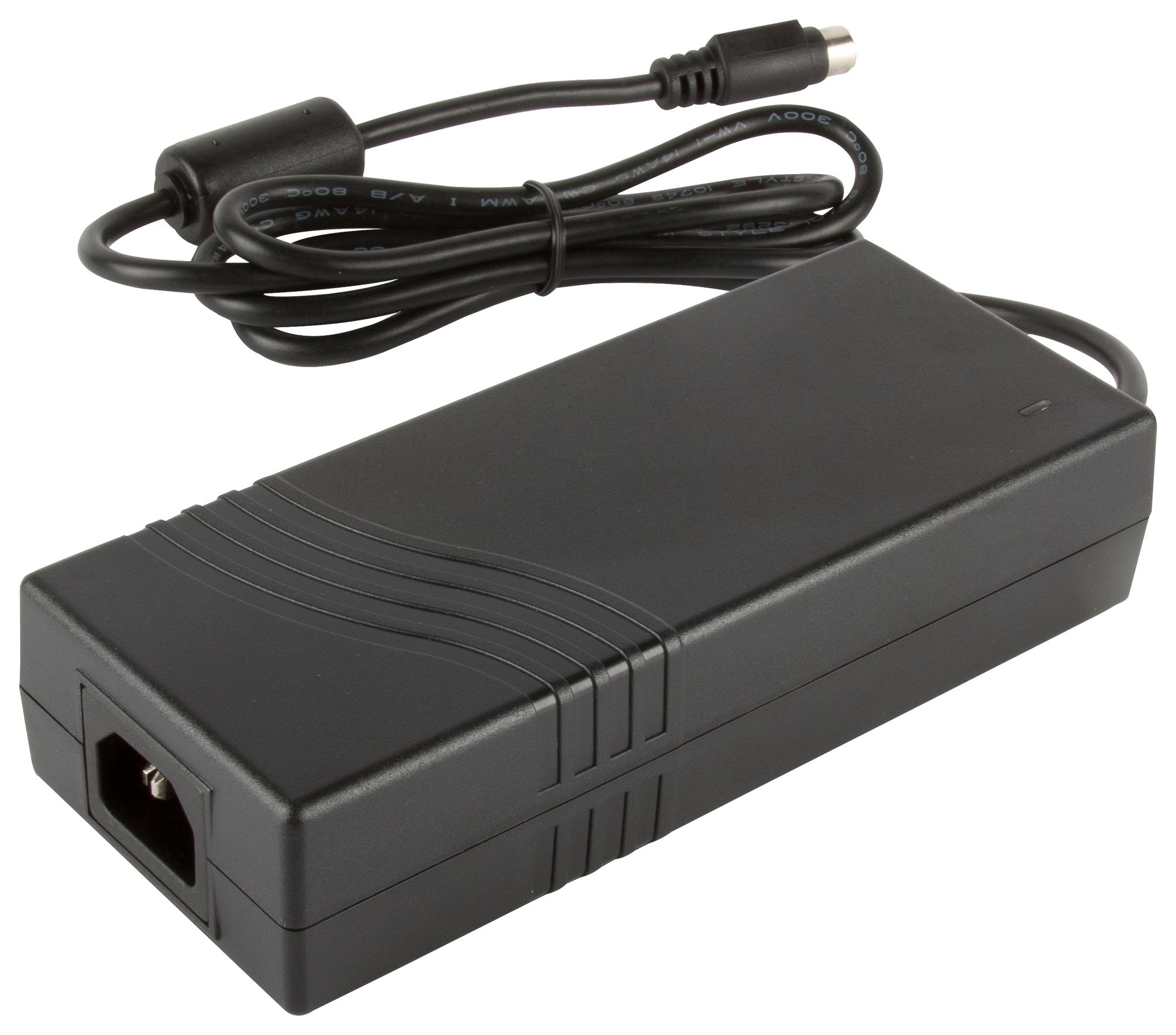

XP POWER VES180PS24 industrial power supply
The VES180 series is a 180W AC to DC power supply that complies with Energy Efficiency Level VI and CoC Tier 2 standards, ensuring minimal no-load power consumption and reduced operating costs. It offers a typical efficiency of around 92%, maintaining cool operation even at full load. Features include less than 0.15W standby power consumption, high power density, and suitability for a wide temperature range from -10°C to +60°C. The power supply is China CCC certified and measures 7.77 inches by 3.5 inches by 1.53 inches (197.4mm x 88.9mm x 39.0mm). Due to high market demand, lead times may vary, and the product is unavailable for discounts.
XP POWER VES180PS24 industrial power supply Specifications:
- Power Output: 180 Watts
- Input Voltage: 90-264VAC
- Input Frequency: 63Hz
- Input Current: 1.8/0.9A at 115/230VAC
- Inrush Current: 120A at 230VAC
- Efficiency: Typical 92%
- Standby Power: Less than 0.15W
- Output Voltage Options: 12V, 15V, 19V, 24V, 48V
- Output Current: 15A, 12A, 9.47A, 0.75A, 0.375A respectively
- Dimensions: 7.77 x 3.5 x 1.53 inches (197.4 x 88.9 x 39.0 mm)
- Operation Temperature Range: -10°C to +60°C
- Isolation: Input to Output 3000 VAC
- Certifications: UL, TUV, cB, China CCC, CE, RoHS
- Cooling: Natural convection
- Weight: Approximately 2.23 lbs (1010 g)
Buy the XP Power VES180PS24 – Reliable Power Supply for Industrial Applications
Purchase the XP Power VES180PS24 high-efficiency 180W power supply online today and enjoy dependable power solutions for your industrial needs. With low standby power, robust certifications, and compact size, this power supply guarantees optimal performance across a range of environments from -10°C to +60°C. Its high efficiency and safety features make it ideal for automation, manufacturing, and control systems. Secure your supply now and benefit from fast delivery, quality assurance, and excellent customer support for all your industrial power requirements.
Order your XP Power VES180PS24 series 180W power supply today and ensure reliable, efficient power delivery for your industrial projects.
Frequently Asked Questions
Where can I buy XP POWER VES180PS24?
You can click on the BUY or RFQ button to purchase VES180PS24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VES180PS24?
You can download the VES180PS24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VES180PS24?
XP POWER
