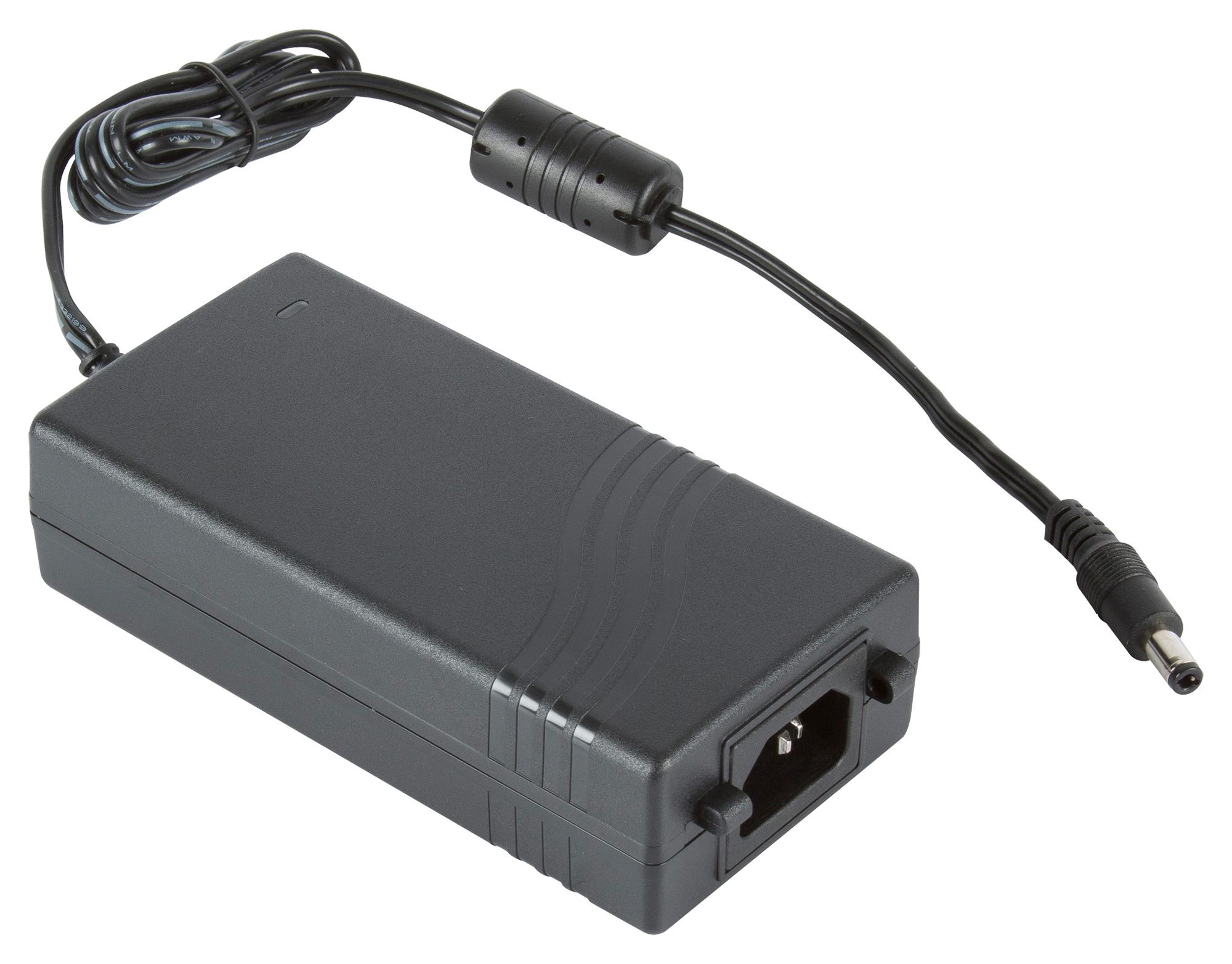

XP POWER AKM90PS15 Medical Industrial Power Supply
The AKM90PS15 is a 90-watt desktop AC-DC power supply designed for medical and industrial applications. Compliant with energy efficiency Level VI standards and European CoC Tier 2, it offers output voltages from 12V to 48V with high efficiency up to 90.9%. This power supply features low no-load power consumption, multiple safety approvals including UL and IEC60601-1 for medical environments, and optional accessories like white cases and AC cable restraints. Its durable construction and regulatory compliance ensure reliable operation in demanding settings.
XP POWER AKM90PS15 Medical Industrial Power Supply Specifications:
- Power Output: 90 Watts
- Output Voltage: 12V, 15V, 19V, 24V, 48V options
- Output Current: 7A, 5.67A, 4.76A, 3.75A, 1.88A respectively
- Efficiency: Up to 90.9%
- Energy Efficiency Level: VI
- Input Voltage: 100-240VAC, 50/60Hz
- Isolation: Input to Ground 1500 VAC
- Leakage Current: 100 μA at 264 VAC
- Switching Frequency: 25-90 kHz
- Operating Temperature Range: 0°C to 40°C
- Dimensions: 151.5 x 60.0 x 37.0 mm
- Certifications: UL62368-1, IEC60601-1, EN60601-1, CSA, CE, UKCA
- Features: Low no-load power, optional white case, optional AC cable restraint, auto restart on overload
Buy the Buy XP Power AKM90PS15 Part Number AKM90PS15 Online
Purchase the XP Power AKM90PS15 online to ensure reliable operation and compliance with industry standards. This high-efficiency, compact power supply offers adjustable outputs from 12V to 48V, making it ideal for medical, industrial, and automation applications. Designed for demanding settings, it features low no-load power consumption, broad safety approvals including UL and IEC60601-1, and optional accessories such as white cases and AC cable restraints. Secure your power needs with this durable, regulatory-compliant power solution today.
Buy XP Power AKM90PS15 now and experience unmatched reliability and performance in medical and industrial environments.
Frequently Asked Questions
Where can I buy XP POWER AKM90PS15?
You can click on the BUY or RFQ button to purchase AKM90PS15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part AKM90PS15?
You can download the AKM90PS15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of AKM90PS15?
XP POWER
