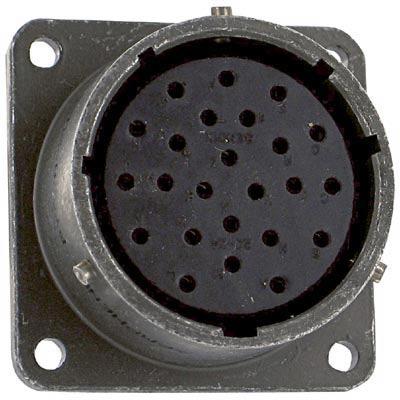

AMPHENOL INDUSTRIAL PT02A2024S Miniature Cylindrical Connector
Miniature cylindrical connector with a bayonet coupling system, suitable for general duty and environmental sealing applications. Features include gold-plated copper contacts, resilient neoprene gaskets for moisture protection, and options for hermetic sealing, printed circuit board contacts, coaxial configurations, and various insert arrangements. Suitable for industrial, military, and geophysical uses, operating from -55°C to +125°C and rated up to 1000 VAC. Available with multiple mounting styles, contact terminations, and finishes, providing high reliability in harsh environments.
AMPHENOL INDUSTRIAL PT02A2024S Miniature Cylindrical Connector Specifications:
- Shell sizes: 6 to 24
- Contact count: 2 to 61
- Material: Aluminum shell, copper alloy contacts, gold plated
- Sealing: Resilient neoprene gaskets, hermetic options available with glass sealed inserts
- Operating Temperature: -55°C to +125°C
- Voltage Rating: Up to 1000 VAC
- Contact Resistance: Max. 5 milliohms
- Dielectric Withstanding Voltage: 1500 V RMS (sea level), 2300 V RMS (service rating II)
- Helium Leak Rate: Less than 1.0 x 10^-8 cc/sec at 15 psi
- Physical Shock: 100 G's
- Vibration: Exceeds MIL-E-5272 Procedure II
- Median Insulation Resistance: >5000 MΩ
- Finish Options: Cadmium, anodic coating, electroless nickel, zinc cobalt, black zinc cobalt
Buy the Buy Amphenol PT02A2024S Online
Order the Amphenol PT02A2024S miniature cylindrical connector today online to ensure reliable performance in industrial, military, or geophysical applications. Designed for toughness, these connectors feature gold-plated copper contacts, resilient neoprene moisture sealing, and optional hermetic sealing with glass inserts. Suitable for operating temperatures from -55°C to +125°C at voltages up to 1000 VAC. Available in various mounting styles, contact configurations, and finishes. Buy now and benefit from quick shipping, trusted quality, and excellent technical support for your most demanding applications.
Get Amphenol PT02A2024S today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL PT02A2024S?
You can click on the BUY or RFQ button to purchase PT02A2024S from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part PT02A2024S?
You can download the PT02A2024S datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of PT02A2024S?
AMPHENOL INDUSTRIAL
