MAXIM INTEGRATED / ANALOG DEVICES MAX20801TPBA Photovoltaic MPPT Controller
The MAX20801 is a high-efficiency, MPPT tracking DC-DC converter designed for photovoltaic systems. It replaces traditional bypass diodes, actively manages maximum power point tracking with a rapid, highly accurate algorithm, and electronically limits output voltage and current for safety and system reliability. The device enables solar modules to optimize energy harvest under varying irradiance and temperature conditions by independently controlling each cell-string's power. Its active bypass mode offers thermal protection, hot-spot prevention, and supports electroluminescence testing, making it ideal for advanced photovoltaic modules and grid-tie systems. Compact and robust, it operates reliably over a wide temperature range and integrates seamlessly with inverter systems.
MAXIM INTEGRATED / ANALOG DEVICES MAX20801TPBA Photovoltaic MPPT Controller Specifications:
- Input Voltage Range for MPPT: 65V to 155V
- Output Voltage Limit: 10.6V to 12.7V (open circuit)
- Maximum Output Current: 14.4A
- Peak Current Capability: 13A
- Maximum Duty Cycle: 97%
- Operating Temperature Range: -40°C to +150°C
- Package: 10-FCQFN, 10-pin
- Thermal Resistance, Junction to Case: 1°C/W
- Input Quiescent Current: 8mA (active bypass), 11.2A max sourcing current
- Efficiency (Peak): 99.1%, MPPT Efficiency: 99.9%
- Voltage/Current Limiting: Electronically adjustable for safe operation
- Reverse Current Mode Support: Seamless operation during reverse currents
- Supports Electroluminescence Testing and Hot-Spot Prevention

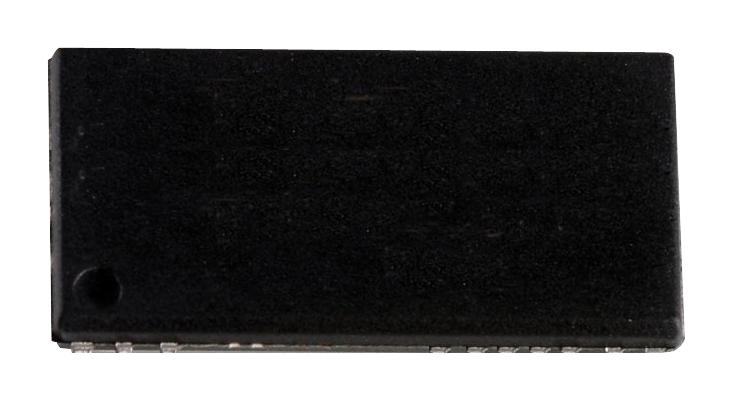

Buy the Buy Maxim Integrated MAX20801 Part Number MAX20801TPBA Online
Purchase the Maxim Integrated MAX20801 MPPT tracking DC-DC converter online today. This high-efficiency device actively manages maximum power point tracking with rapid response, electronically limits voltage and current for safe operation, and offers active bypass functionality to prevent hot-spots and thermal stress. Designed for advanced solar energy systems, it ensures optimal energy harvest under varying conditions, supports electroluminescence testing, and operates reliably over a wide temperature range. Enhance your PV system's performance with this compact, robust converter available for immediate online ordering.
Buy Maxim Integrated MAX20801 now and experience unmatched reliability and high-efficiency MPPT energy harvesting for photovoltaic applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX20801TPBA?
You can click on the BUY or RFQ button to purchase MAX20801TPBA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX20801TPBA?
You can download the MAX20801TPBA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX20801TPBA?
MAXIM INTEGRATED / ANALOG DEVICES
