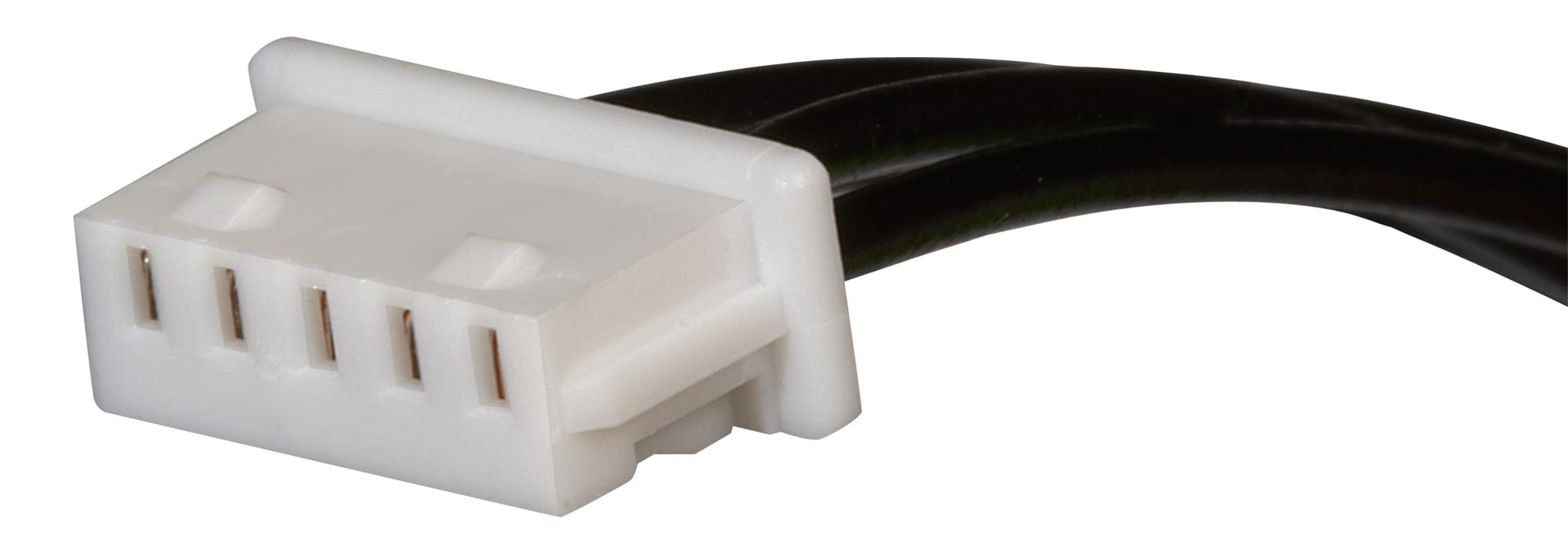

MOLEX 151340502 PicoBlade OTS Cable Assembly
The MOLEX 15134-0502 PicoBlade OTS Cable Assembly provides a pre-terminated solution for connecting PicoBlade connectors. This dual-ended cable assembly is 150mm in length and incorporates 5 circuits, making it suitable for applications requiring compact and efficient signal transmission. Constructed with phosphor bronze and tin plating, it offers excellent conductivity and durability. The natural resin provides insulation and protection. It is RoHS compliant and designed for secure and reliable connections.
MOLEX 151340502 PicoBlade OTS Cable Assembly Specifications:
- overview: PicoBlade Connector System
- assembly_configuration: Dual Ended
- connectors: PicoBlade-to-PicoBlade
- cable_length: 150.00mm
- circuits_loaded: 5
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 1.400/g
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_max_per_contact: 1.0A
- voltage_max: 125V
- sales_drawing: 2012341357-000
