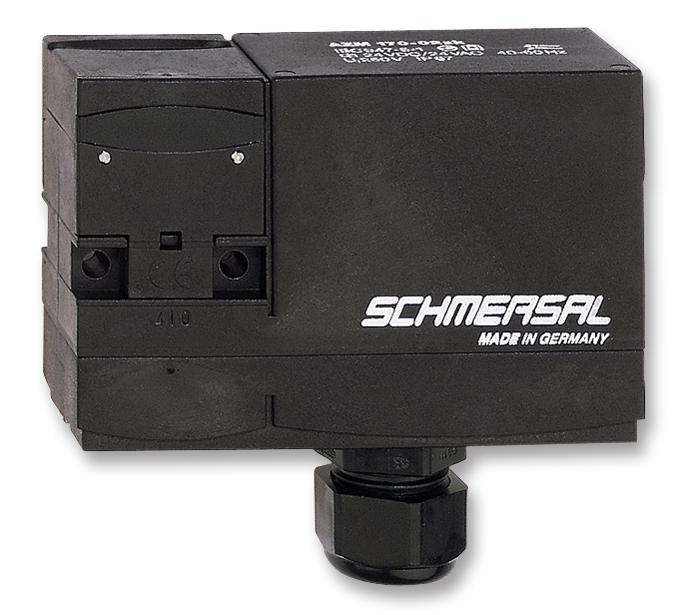

Schmersal AZM17002ZRKA24VACDC Safety Interlock Switch
The AZM 170 is a compact, double-insulated safety interlock switch designed for sliding and hinged safety guards, with high durability and long service life. It features a thermoplastic enclosure measuring 90 mm x 84 mm x 30 mm, a M20x1.5 cable entry, manual release, and IDC termination method for easy wiring. Suitable for various safety applications, it offers high holding and latching forces, with protection against incorrect locking and compliance with EN ISO 13849-1 standards. The switch supports manual operation and individual coding options, ensuring reliable safety interlocking in machinery and fencing setups.
Schmersal AZM17002ZRKA24VACDC Safety Interlock Switch Specifications:
- Dimensions: 90 mm x 84 mm x 30 mm
- Housing material: Thermoplastic, self-extinguishing
- Cable entry: M20x1.5
- Connection: IDC method of termination
- Mechanical life: > 1,000,000 operations
- Latching force: 30N
- Positive break force: 1000N
- Contact type: Normally closed (NC), optional auxiliary contacts
- Rated control voltage: 24 VAC/DC, 110VAC, 230VAC
- Power consumption: Max. 10 W
- Protection class: IP67 to IEC/EN 60529
- Switching principle: Electromechanical
- Materials: Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Ambient temperature: -25°C to +60°C
- Approval: BG, EN ISO 13849-1 compliance
- Application: Suitable for sliding and hinged safety guards, manual release available
- Weight: 278g
Buy the Schmersal Series AZM Safety Interlock Switch: AZM 170
Purchase the Schmersal AZM 170 safety interlock switch online today for excellent guard safety solutions. This high-quality device features durable thermoplastic housing, IDC wiring for quick installation, and multiple actuation options. It is suitable for sliding and hinged safety doors, with manual release and high latching force for dependable protection. Featuring an IP67 rating, this switch ensures safe operation in harsh environments. Fast, easy online ordering guarantees reliable safety equipment to meet your machinery protection needs efficiently and effectively.
Order your Schmersal Series AZM 170 safety interlock switch today and enhance your machinery safety with reliable, high-force locking capabilities and durable design.
Frequently Asked Questions
Where can I buy Schmersal AZM17002ZRKA24VACDC?
You can click on the BUY or RFQ button to purchase AZM17002ZRKA24VACDC from an authorized Schmersal distributor.
How do I troubleshoot issues or seek technical support for part AZM17002ZRKA24VACDC?
You can download the AZM17002ZRKA24VACDC datasheet or visit the Schmersal website for support.
Who is the manufacturer of AZM17002ZRKA24VACDC?
Schmersal
