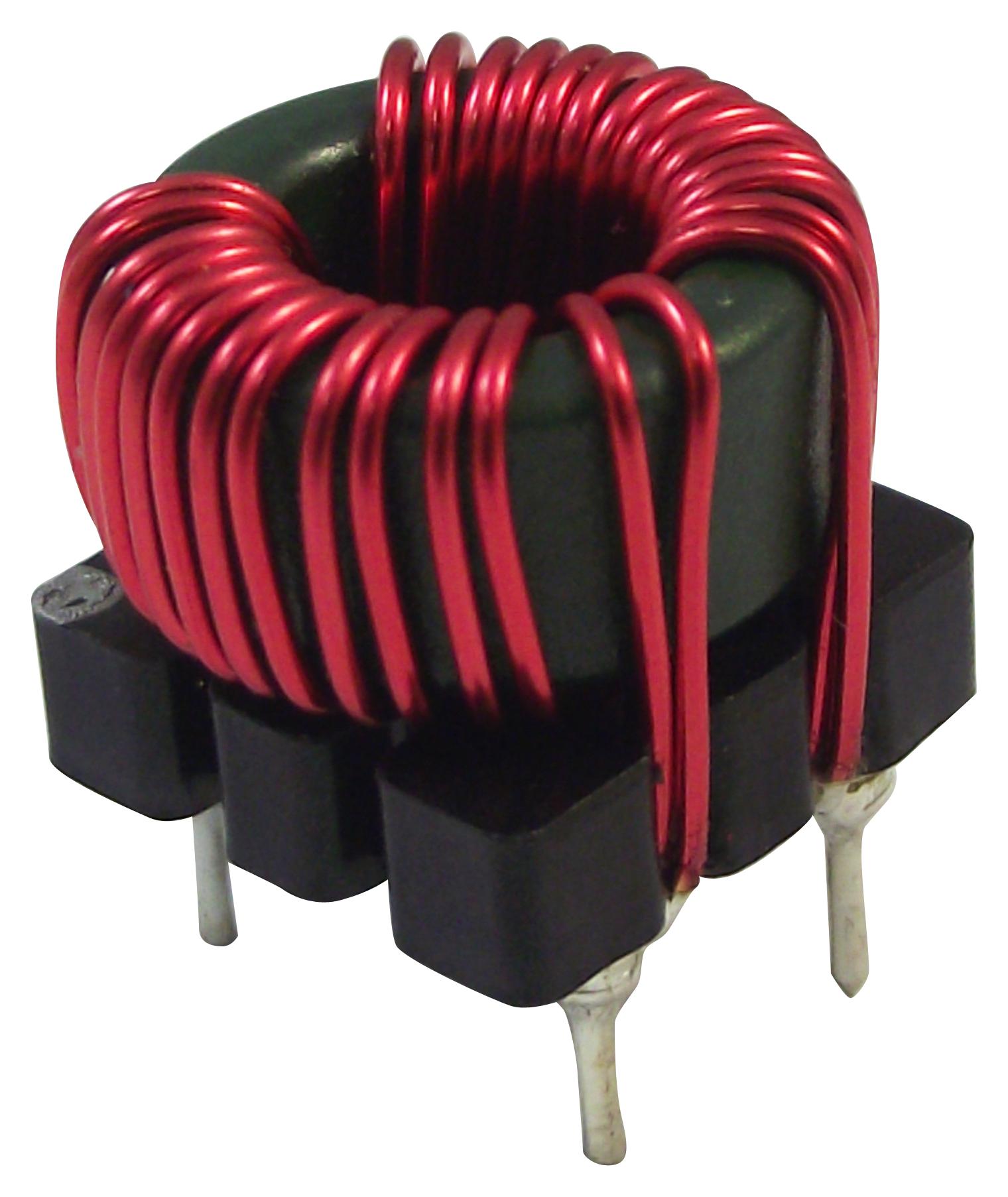

TRACO POWER TCK073 Common Mode Choke
The Common Mode Choke TCK-073 is designed for high-frequency noise filtering in power electronics. With an inductance of 305 pH ±35% at 100 kHz/100 mV, it provides impedance up to 500 ohms and a maximum DCR of 20 milliohms. Rated for a maximum current of 11.3 A and a voltage of 500 VDC, it operates reliably across a temperature range of -40°C to +105°C. This choke is ideal for applications requiring suppression of common mode noise in industrial power supplies and electronic equipment.
TRACO POWER TCK073 Common Mode Choke Specifications:
- Inductance: 305 pH ±35% at 100 kHz/100 mV
- Impedance (DCR): 20 mOhm max.
- Rated Current: 11.3 A max.
- Rated Voltage: 500 VDC max. (between windings)
- Operating Temperature: -40°C to +105°C
- Maximum Dimensions: 16.0 mm height, 16.0 mm width, 15.0 mm max length
- Impedance Curve: Up to 500 ohms at resonance frequency
- Pin 1 Marking for correct orientation
- Material: High-quality magnetic core, copper windings
- Mounting Type: Through-hole for PCB assembly
- Certifications: RoHS compliant
Buy the Traco Power TCK-073 – Reliable Common Mode Noise Filter for Industrial Applications
Purchase the Traco Power Common Mode Choke TCK-073 online today. Engineered for high-frequency noise filtering, it offers an inductance of 305 pH, a maximum current of 11.3 A, and withstands up to 500 VDC. Its robust construction ensures reliable operation across a temperature range of -40°C to +105°C, making it perfect for industrial power supplies and electronic circuits. Buy now for quality, performance, and durability in your power filtering applications.
Get Traco Power TCK-073 today—designed for noise suppression and long-lasting durability in power electronics.
