TRACO POWER TEN602413WIR Railway DC/DC Converter

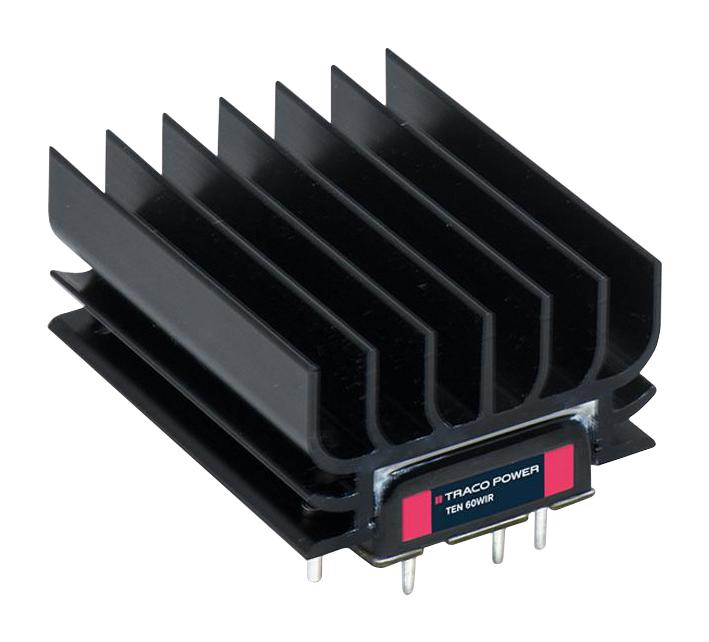

The TEN 6OWIR series offers rugged, high-efficiency 60 Watt DC/DC converters tailored for railway and transportation systems with EN 50155 approval. Featuring a compact 2”x1” metal package, these converters operate efficiently up to 92%, support a wide 4:1 input voltage range from 9V to 160VDC, and include selectable outputs, remote on/off, and active under-voltage lockout. Designed for rugged applications, they withstand electrical noise, shock, vibration, thermal shocks, and operate reliably from -40°C to +70°C without derating. Certifications include EN 45545-2 for fire safety, and IEC/EN 62368-1 for safety, making them ideal for demanding industrial and railway environments.
TRACO POWER TEN602413WIR Railway DC/DC Converter Specifications:
- Input Voltage Range: 9-36V, 18-75V, 36-160VDC support wide 4:1 range
- Output Power: 60 Watts with adjustable voltage and dual/multi-output options
- Efficiency: Up to 92% for optimal power conversion
- Operating Temperature: -40°C to +70°C without derating, case max 105°C
- Isolation Voltage: 3,000 VDC input-to-output and input-to-case
- Protection Features: Overvoltage, undervoltage lockout, short circuit, automatic recovery
- Certification: EN 50155, EN 61373, EN 45545-2 fire safety, IEC/EN 62368-1 safety standard
- Dimensions: 2” x 1” (50.8mm x 25.4mm) package with heatsink included
- Mechanical: Ruggedized, shock and vibration resistant, continuous conduction cooling
- Remote Control: On/Off remote pin, TTL compatible
- Ripple & Noise: Up to 300mVp-p depending on output voltage
- Safety & EMC: Meets industrial EMI standards, high immunity to electromagnetic disturbances
- Construction: Copper housing, potting material for durability, internal Pi-type filter
Buy the Traco Power Series TEN 6OWIR DC/DC Converter: TEN602413WIR
Purchase the Traco Power Series TEN 6OWIR 60 Watt DC/DC Converter online now for dependable power in demanding environments. Its rugged design, high efficiency up to 92%, and extensive certifications including EN 50155 and EN 45545-2 ensure safe, reliable operation across industrial, transportation, and railway applications. With a wide input voltage range from 9V to 160VDC, adjustable outputs, remote on/off, and comprehensive protection features, this converter is ideal for critical systems requiring durability, safety, and efficiency. Buy today to enhance your project's power reliability.
Order your Traco Power Series TEN 6OWIR 60 Watt DC/DC Converter today and give your railway or industrial project the reliable power supply it needs.
