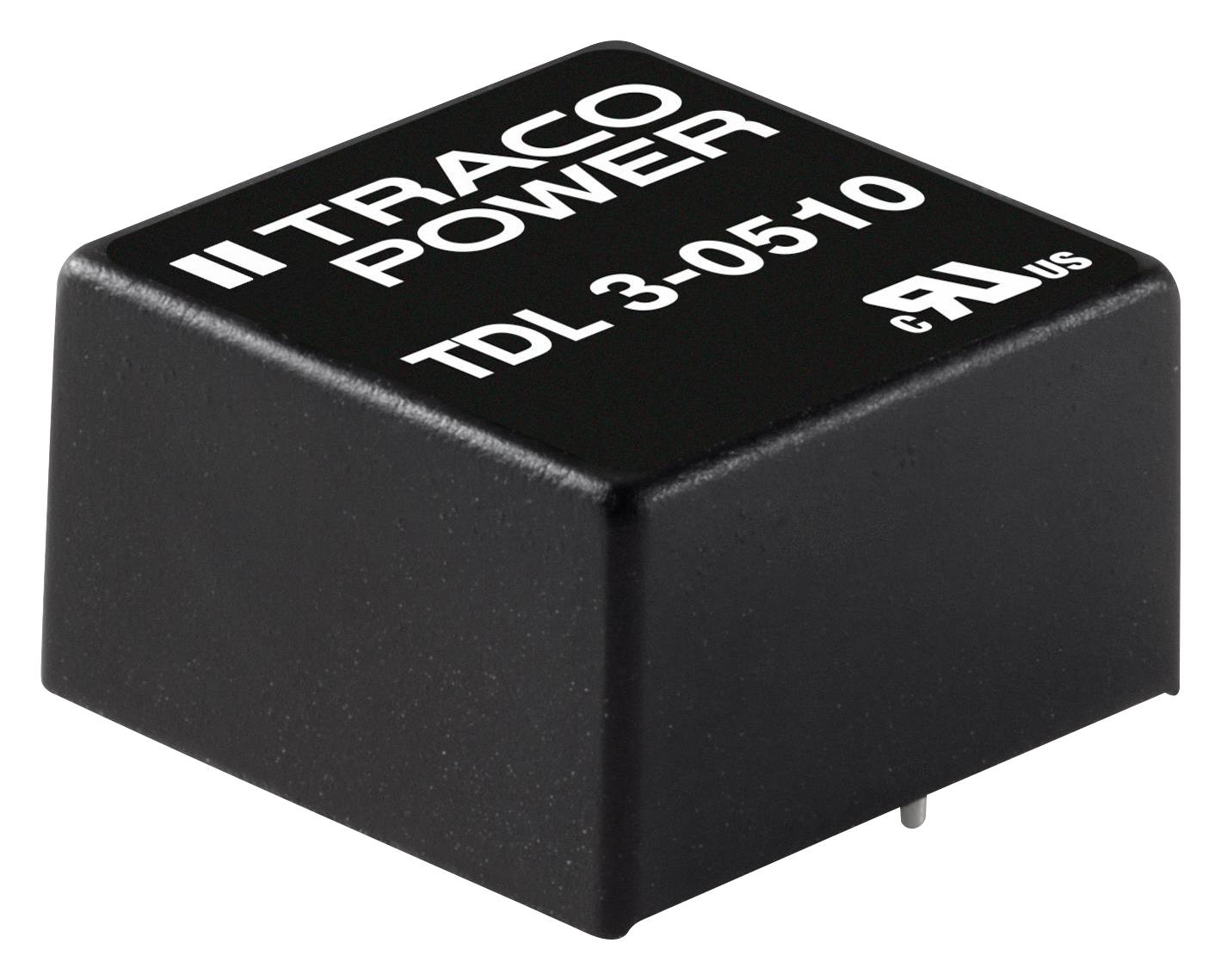

TRACO POWER TDL32423 DC/DC Converter
The TDL 3 series from TracoPower are 3W DC/DC converters with single or dual regulated outputs. These compact modules feature a wide 2:1 input voltage range and are housed in a small DIP package measuring 14mm W x 8mm H x 14mm D. They provide continuous, automatic recovery short circuit and overload protection, ensuring reliable operation. The converters support various input voltages including 5VDC, 12VDC, 24VDC, and 48VDC, with outputs like 3.3VDC, 5VDC, 12VDC, 15VDC, and bipolar options. Efficiency reaches up to 87%, operating at a frequency of at least 100kHz. They offer an isolation voltage of 1500VDC, with typical capacitance of 100pF and resistance exceeding 1GΩ. The modules are certified UL 60950-1 and IEC/EN 60950-1, operate from -40°C to 70°C, and come with a 3-year warranty, making them ideal for industrial and embedded power applications.
TRACO POWER TDL32423 DC/DC Converter Specifications:
- Power: 3 Watt
- Input Voltage Range: 4.5V to 48V DC (2:1 ratio)
- Output Voltage: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Output Current: up to 600mA (single), lower for dual outputs
- Efficiency: up to 87%
- Operating Temperature: -40°C to +70°C
- Isolation Voltage: 1500VDC (60 sec.)
- Isolation Capacitance: 100pF typical
- Isolation Resistance: >1 GΩ
- Ripple & Noise: approximately 70mVp-p
- Switching Frequency: ≥100kHz
- Short Circuit Protection: Yes, automatic recovery
- Overload Protection: at 170% of rated output, foldback
- Certifications: UL 60950-1, IEC/EN 60950-1
- Housing Material: UL 94 V-0 rated non-conducting plastic
- Dimensions: 14.0 x 14.0 x 7.62 mm
- Soldering Temperature: max 260°C for 10 sec.
- Weight: 3.99 oz.
- Safety & Environmental Compliance: Reach, RoHS
Buy the TracoPower TDL32423 – Reliable DC/DC Converter for Industrial Applications
Purchase the TracoPower TDL 3 series DC/DC converter online today to benefit from a compact, reliable, and high-efficiency power module. With wide input voltage ranges from 4.5 to 48 volts, these converters support various output voltages including 3.3V, 5V, 12V, and 15V, along with bipolar options for versatile applications. Designed for industrial environments, they feature 1500VDC isolation, automatic short circuit recovery, and safety certifications, ensuring robust performance from -40°C to 70°C. Secure your reliable power solution now and enhance your system’s efficiency and safety.
Order your TracoPower Series TDL32423 3W DC/DC converter today and ensure dependable power delivery for your industrial projects.
Frequently Asked Questions
Where can I buy TRACO POWER TDL32423?
You can click on the BUY or RFQ button to purchase TDL32423 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDL32423?
You can download the TDL32423 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDL32423?
TRACO POWER
