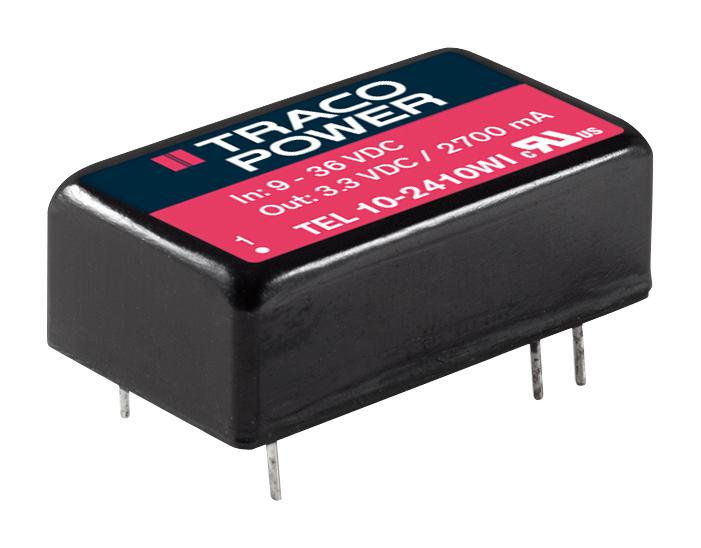

TRACO POWER TEL102411WI DC/DC Module
The TEL 10WI series consists of ultra-compact, 10 Watt isolated DC/DC converters housed in DIP-16 metal packages, designed for space-critical applications. Offering an ultra wide input voltage range of 4:1 and efficiency up to 88%, these modules provide reliable power with low thermal loss. Suitable for industrial, instrumentation, and IT use, they feature built-in filters, high immunity to conducted emissions, and are compliant with safety standards IEC/EN/UL 60950-1 and 62368-1, making them ideal for demanding environments requiring compact and efficient power conversion solutions.
TRACO POWER TEL102411WI DC/DC Module Specifications:
- Input Voltage Range: 4:1 wide (9 V to 36 V or 18 V to 75 V)
- Output Power: 10 Watts
- Efficiency: Up to 88%
- Operating Temperature Range: -40°C to +88°C
- Isolation Voltage: 1500 VDC input to output
- Case Material: Aluminium alloy, black anodized
- Dimensions: 16.5 x 9.0 x 12.0 mm (approximate)
- Protection: Short circuit, overcurrent (up to 195%), under-voltage lockout
- EMC Compliance: EN 55032, EN 61000-4 series
- Switching Frequency: 355–485 kHz
- Safety standards: IEC/EN/UL 60950-1, 62368-1
- Input fuse recommendation: 1 A or 2 A slow blow
- Pin Material: Tinned copper
- Weight: 6.5 g
- Soldering Temperature: 260°C / 10 seconds max
Buy the Buy Traco Power TEL 10WI Series 10 Watt Part Number TEL102411WI Online
Experience the high efficiency and compact design of the Traco Power TEL 10WI series DC/DC converters available online. These 10 Watt modules feature an ultra-wide input voltage range from 9 V to 36 V or 18 V to 75 V, providing stable output voltages with up to 88% efficiency. Built-in filters ensure low EMI emission, meeting standards like EN 55032. Designed for demanding industrial, instrumentation, and IT environments, these converters offer excellent thermal management, safety certification, and reliable protection features—making them ideal for space-constrained applications requiring dependable power conversion.
Order your Traco Power TEL 10WI Series 10 Watt converter today and enhance your industrial, instrumentation, or IT projects with reliable, space-saving power solutions.
Frequently Asked Questions
Where can I buy TRACO POWER TEL102411WI?
You can click on the BUY or RFQ button to purchase TEL102411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEL102411WI?
You can download the TEL102411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEL102411WI?
TRACO POWER
