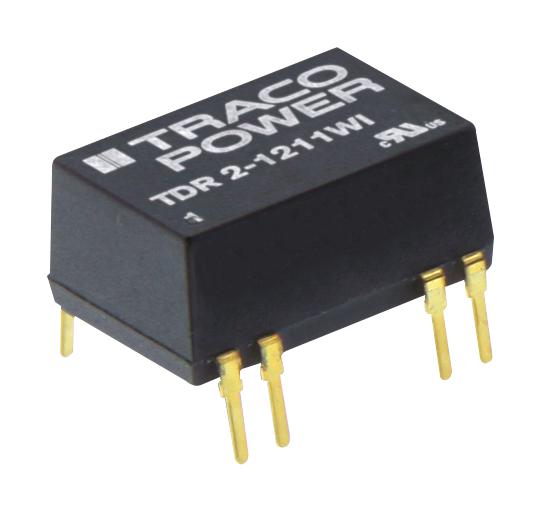

TRACO POWER TDR22411WI DC/DC Converter
The TDR-2WI series by Traco Power offers compact 2 W ultra-wide input DC/DC converters suitable for space-critical applications in communication, industrial, and instrumentation sectors. Available in SMD or DIP packages, they feature a 4:1 input voltage range, fully regulated outputs with low ripple and noise of 30mV pk-pk, and operate in temperatures from -40°C to +85°C without derating. These converters provide 1600 VDC isolation, continuous short-circuit protection, remote On/Off control, and excellent environmental immunity, ensuring reliable performance in harsh conditions. They are ideal for high-end electronic systems requiring small size and high efficiency.
TRACO POWER TDR22411WI DC/DC Converter Specifications:
- Input Voltage Range: 4:1 wide voltage range, models vary (e.g., 5V, 12V, 15V, 24V, 36V, 48V)
- Output Power: 2 W
- Output Voltage: Various options (e.g., 5V, 12V, 15V, 9V, 18V)
- Output Current: Up to 483 mA depending on model
- Ripple and Noise: 30 mV pk-pk
- Efficiency: 78% to 82% depending on model
- Operating Temperature: -40°C to +85°C without derating
- Isolation Voltage: 1600 VDC input/output
- Surge Voltage: up to 100 V max (48V models)
- Humidity: 5-95% non-condensing
- Case Material: Non-conductive UL94V-0 plastic or SMD recommended pad
- Protection: Continuous short circuit, remote On/Off control
- Switching Frequency: 0.1–2.5 MHz
- Dimensions: In accordance with SMD and DIP packages, detailed measurements available
- Certifications: UL/cUL 60950-1, RoHS, Reach
Buy the Buy Traco Power TDR-2WI Series Part Number TDR22411WI Online
Purchase the Traco Power TDR22411WI DC/DC converter today for your industrial and communication projects. This 2W power supply features ultra-wide input voltage range, regulated output, low ripple and noise, and operates reliably in temperatures from -40°C to +85°C without derating. Its high efficiency, 1600 VDC isolation, and short-circuit protection make it an ideal core component for space-constrained high-end electronic devices. Enjoy fast delivery, secure online ordering, and the performance you need for demanding engineering applications.
Get Traco Power TDR22411WI today—compact, high-efficiency 2W DC/DC converter with wide temperature operation and isolation for reliable industrial electronics.
Frequently Asked Questions
Where can I buy TRACO POWER TDR22411WI?
You can click on the BUY or RFQ button to purchase TDR22411WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TDR22411WI?
You can download the TDR22411WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TDR22411WI?
TRACO POWER
