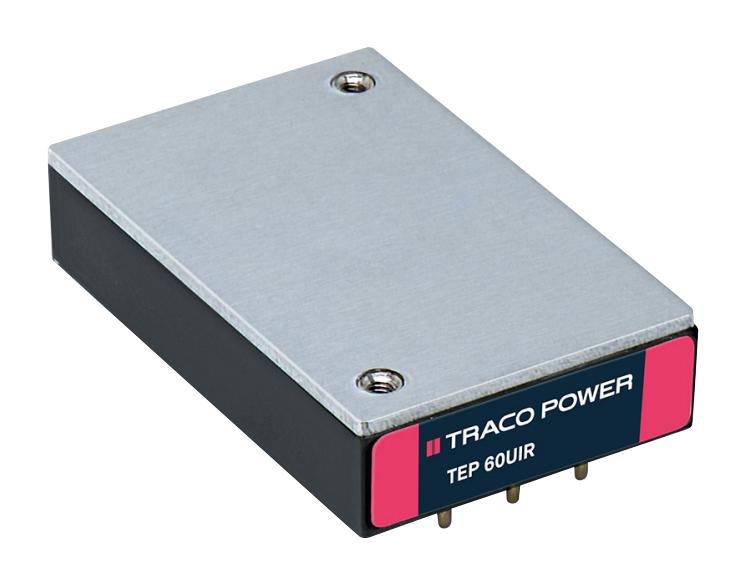

TRACO POWER TEP603612UIR Railway DC/DC Converter
The TEP 6OUIR series by Traco Power offers high-performance 60 Watt railway DC/DC converters with an ultra-wide 12:1 input voltage range from 9-75 VDC and 14-160 VDC. Compact and lightweight (2.3”x1.45”x0.5”), these modules feature high efficiency up to 91%, reinforced or basic insulation ratings, and extensive approvals including EN 50155 and EN 61373, making them ideal for railway applications. They support adjustable output voltages, remote On/Off, over-voltage and under-voltage lockout, and operate reliably from -40°C to +75°C, ensuring long-term durability in demanding environments.
TRACO POWER TEP603612UIR Railway DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC and 14-160 VDC
- Input Current (no load): 20 mA typ.
- Surge Voltage: 100 VDC max. (1 s), 185 VDC max. (1 s)
- Operating Temperature: -40°C to +75°C
- Efficiency: Up to 91%
- Isolation Voltage: 3000 VAC input to output
- Output Voltage Adjustment: ±20% to +10% via external resistor
- Output Power: 60 Watts
- Output Current: From 1,250 mA to 12,000 mA depending on model
- Ripple and Noise (20 MHz bandwidth): 75-300 mVp-p depending on output voltage
- Start-up Time: 75 ms typ., max 100 ms
- Protection: Continuous short circuit, overvoltage, and overcurrent
- Certifications: EN 62368-1, IEC 62368-1, UL 62368-1, EN 50155
- Mechanical: Compact metal package (2.3"x1.45"x0.5")
- Isolation Resistance: 1000 MΩ at 500 VDC
- Housing Material: Aluminum base-plate with silicone potting
- Cooling: Natural convection
- Vibration & Shock: MIL-STD-810F, EN 61373
Buy the Buy Traco Power TEP 6OUIR Series Part Number TEP603612UIR Online
Purchase the Traco Power TEP 6OUIR series online today. These 60-watt railway DC/DC converters feature ultra-wide input voltage ranges, high efficiency up to 91%, and certifications like EN 50155 and EN 61373. With adjustable output, remote On/Off, and robust protection features, they are perfect for industrial and transportation applications. Their compact size (2.3x1.45x0.5 inches), reinforced insulation, and temperature ranges from -40°C to +75°C ensure reliable operation in harsh environments. Buy now for dependable power conversion in demanding railway systems.
Get Traco Power TEP 6OUIR Series today—compact, railway-approved DC/DC converter designed for high efficiency and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TRACO POWER TEP603612UIR?
You can click on the BUY or RFQ button to purchase TEP603612UIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEP603612UIR?
You can download the TEP603612UIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEP603612UIR?
TRACO POWER
