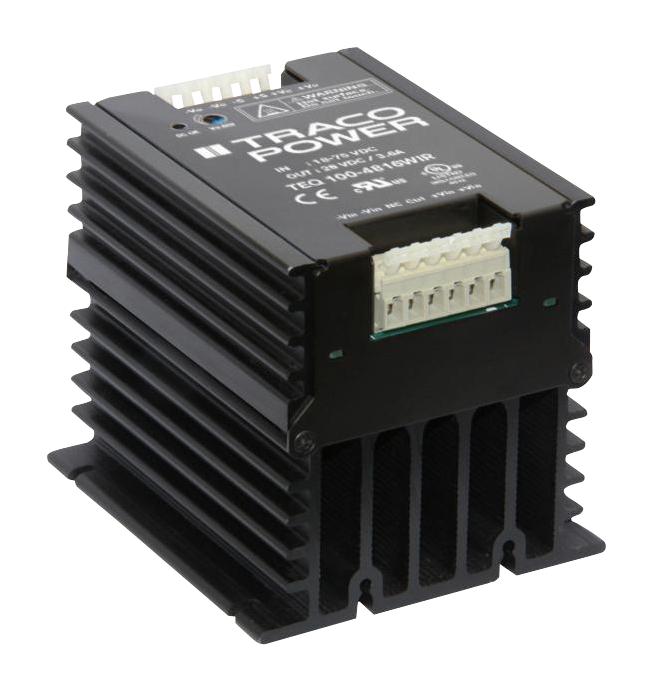

TRACO POWER TEQ1004812WIR Industrial DC/DC Converter
The TEQ 100WIR series from TracoPower consists of 100W isolated high-performance DC/DC converters housed in a rugged, sealed metal case. Designed for industrial applications where PCB mounting is not feasible, these modules can be mounted on chassis. They feature an ultra-wide 4:1 input voltage range, including options for 24VDC, 48VDC, and 110VDC inputs, with reverse input voltage protection. The converters provide adjustable output voltages of 12VDC, 24VDC, 28VDC, or 48VDC, with maximum currents ranging from 2.1A to 8.4A. They offer high efficiency up to 90%, making them suitable for battery-powered systems. Additional features include remote on/off, output voltage trimming, undervoltage lockout, soft-start, output current limiting, overvoltage protection, and automatic recovery short circuit protection. These modules meet multiple safety and electromagnetic compatibility standards—including IEC/EN 60950-1, UL 508, CSA C22.2, and EN 50155 for railway use—and have a low ripple and noise profile. They operate across a temperature range from -40°C to 105°C (up to +85°C without derating) and are suitable for demanding industrial and railway applications.
TRACO POWER TEQ1004812WIR Industrial DC/DC Converter Specifications:
- Casing material: Aluminium
- Potting material: Silicone (UL94V-0 rated)
- Weight: 800 g
- Input voltage: 12 VDC to 110 VDC with various models
- Output voltage: 12 V, 24 V, 28 V, 48 V
- Output current max.: 2.1A to 8.4A depending on model
- Efficiency: Up to 90%
- Operating temperature: -40°C to +105°C (up to +85°C without derating)
- Storage temperature: -40°C to +105°C
- Isolation voltage input/output: 2250 VDC
- Ripple and noise: 125–350 mVp-p depending on model
- Surge voltage: Up to 185 V max.
- Switching frequency: 250-300 kHz
- Protection features: Overvoltage, short circuit (auto recovery), Remote On/Off
- Standards: IEC/EN 60950-1, UL 508, CSA, EN 50155 railway
- Humidity: 5% to 95% RH, non-condensing
Buy the TracoPower Series TEQ 100WIR DC/DC: TEQ1004812WIR
Purchase the TracoPower TEQ 100WIR series DC/DC converter online today. These durable, high-efficiency modules are ideal for demanding industrial and railway applications. With ultra-wide input voltage ranges, adjustable outputs, and comprehensive safety standards, they ensure reliable power conversion in challenging environments. Designed for easy mounting on chassis, they feature remote on/off, overvoltage, and short circuit protections, while operating across a broad temperature range. Buy now for robust performance, long-term reliability, and seamless integration into your power systems.
Get TracoPower TEQ1004812WIR today—built for industrial resilience and long-lasting performance.
