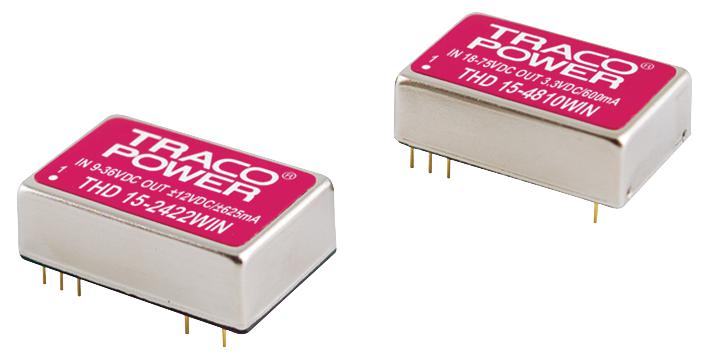

TRACO POWER THD152423WIN DC/DC Converter
The THD 15WIN series offers compact, high-efficiency 15 Watt DC/DC converters with a shielded metal case, isolated baseplate, and extensive international safety and EMC certifications. Designed for space-constrained environments such as mobile equipment, instrumentation, communication, and industrial electronics, these converters feature ultra-wide 4:1 input ranges, no minimum load requirement, and remote On/Off control. Operating from -40°C to +85°C with derating and a 3-year warranty, they ensure reliable, regulated output with low noise, high efficiency up to 90%, and robust isolation characteristics suitable for demanding applications.
TRACO POWER THD152423WIN DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC with ultra-wide 4:1 range
- Output Power: 15 Watt
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +85°C with derating
- Isolation Voltage: 1500 VDC
- Isolation Capacitance: 2000 pF
- Switching Frequency: 330 kHz
- Output Voltage Accuracy: ±1%
- Ripple and Noise: 60 mVp-p (20 MHz BW)
- Over Voltage and Short Circuit Protection: Yes
- MTBF: >1,600,000 hours (MIL-HDBK-217F, at +25°C)
- Physical: Nickel-coated copper case, non-conductive FR4 baseplate, silicon potting, weight 14.4 g
- Certifications: UL 60950-1, EN 55022 Class A EMC, IEC/EN 61000-4 series immunity
Buy the TracoPower Series THD 15WIN DC/DC Converter: THD152423WIN
Enhance your electronic systems with the high-efficiency, compact TracoPower Series THD 15WIN DC/DC converter. With a 15 Watt output, ultra-wide input range, and high isolation, this device is perfect for demanding industrial, communication, and instrumentation applications. It features a robust shielded case, remote On/Off, low ripple, and noise, along with certifications for safety and EMC compliance. Reliable and easy to integrate, the THD 15WIN series offers excellent performance, durability, and a 3-year warranty, making it a smart choice for sensitive electronics requiring stable power in limited space.
Order your TracoPower Series THD 15WIN DC/DC converter today and ensure reliable, space-efficient power for your industrial and communication projects.
Frequently Asked Questions
Where can I buy TRACO POWER THD152423WIN?
You can click on the BUY or RFQ button to purchase THD152423WIN from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THD152423WIN?
You can download the THD152423WIN datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THD152423WIN?
TRACO POWER
