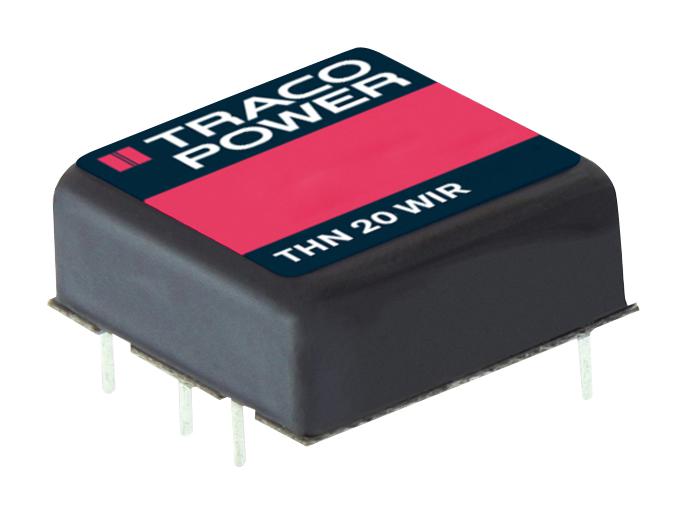

TRACO POWER THN202422WIR DC/DC Converter
The THN 20WIR series consists of ruggedized 20 Watt DC/DC converters designed for high reliability in harsh environments, including railway and transportation systems. Encased in a compact 1” x 1” metal package, these converters feature a wide 4:1 input voltage range from 9 to 36 VDC, 18 to 75 VDC, and 36 to 160 VDC, with efficiencies reaching up to 91%. They offer thermal, shock, vibration, and electromagnetic interference resistance, along with certifications like EN 50155, EN 61373, and fire safety according to EN 45545-2. Built-in protections include overload, overvoltage, short circuit, and remote control functions, supporting reliable operation in demanding applications without derating from -40°C to +65°C.
TRACO POWER THN202422WIR DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC, 18-75 VDC, 36-160 VDC
- Output Power: 20 Watts
- Efficiency: Up to 91%
- Operating Temperature Range: -40°C to +65°C without derating
- Isolation Voltage: 3000 VDC (Input to Output)
- Protection: Overload, Overvoltage, Short Circuit
- Dimensions: 1" x 1" x 0.39" (25.4 mm x 25.4 mm x 10 mm)
- Switching Frequency: 270-330 KHz
- Input Current (No load): 0.5-2.5 mA at 24V, 4-8 mA at 48V
- Input Surge Voltage: 100-185 VDC, 220-441 VDC
- Remote On/Off Function: Yes
- Built-in EMI Filter: EN 55032 class A
- Case Material: Copper, with silicone potting
- Certifications: EN 50155, EN 61373, EN 45545-2, UL 62368-1, IEC 62368-1
- Vibration/Shock Resistance: MIL-STD-810F
Buy the TRACO-POWER Series THN202422WIR DC/DC Converter: 20W Rugged Power Supply
Buy the Traco Power THN 20WIR series online today to ensure your systems operate reliably in demanding environments. These 20-watt rugged DC/DC converters feature a wide input voltage range, high efficiency up to 91%, and comprehensive certifications such as EN 50155, EN 61373, and EN 45545-2. With protections like overload, overvoltage, short circuit, and remote control functions, they are ideal for railway, transportation, and industrial applications. The compact metal package and advanced EMI filtering make installation easy and dependable for critical projects needing consistent power conversion.
Order your Traco Power THN 20WIR series 20 Watt industrial-grade DC/DC converter today and enhance your project’s reliability with top-grade performance.
Frequently Asked Questions
Where can I buy TRACO POWER THN202422WIR?
You can click on the BUY or RFQ button to purchase THN202422WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN202422WIR?
You can download the THN202422WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN202422WIR?
TRACO POWER
