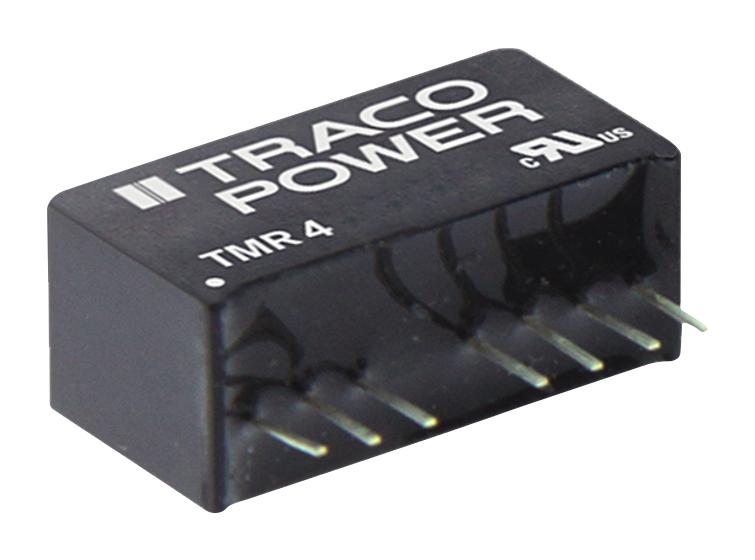

TRACO POWER TMR41222 DC/DC Power Converter
The TMR 4 series is a compact 4 Watt DC/DC converter offering a 2:1 input voltage range, high efficiency up to 87%, and an operating temperature of -40°C to +70°C without derating. It features 1/0 galvanic isolation of 1600 VDC, remote On/Off control, and protection against short-circuits and overloads. Designed for industrial applications, it complies with IEC/EN/UL 62368-1 standards. Available in single and dual output models, this converter provides a reliable, efficient power solution suitable for demanding environments and space-constrained systems.
TRACO POWER TMR41222 DC/DC Power Converter Specifications:
- Input Voltage Range: 9-18 VDC, 12 VDC, 24 VDC, 36-75 VDC, 48 VDC nominal options
- Output Power: 4 Watts
- Efficiency: Up to 87%
- Isolation Voltage: 1600 VDC
- Operating Temperature: -40°C to +70°C without derating
- Remote On/Off: Yes
- Input Current: 10–409 mA depending on model
- Input Surge Voltage: 25 VDC to 100 VDC (1 sec)
- Ripple and Noise (20 MHz BW): ≤80 mVp-p
- Protection: Short-circuit, overload with foldback mode
- Start-up Time: Approx. 10 ms
- Dimensions: SIP-8 package, weight 48g
- Compliance: IEC/EN/UL 62368-1
- Cooling: Natural convection
- Housing: UL94 V-0 rated plastic
- Isolation Resistance: ≥17 MΩ at 500 VDC
- Pin Material: Phosphor Bronze
- Certification: UL, IEC, EN standards
Buy the Traco Power Series TMR 4 DC/DC Converter: TMR41222
Purchase the Traco Power TMR41222 DC/DC converter online today for a highly efficient, compact, and reliable power solution suited for industrial applications. Featuring a wide input voltage range, galvanic isolation of 1600 VDC, remote On/Off control, and protection against overloads and short circuits, this 4 Watt converter ensures optimal performance in demanding environments. Its compact SIP-8 package, high efficiency up to 87%, and compliance with IEC/EN/UL 62368-1 standards make it an excellent choice for space-constrained systems requiring stable, regulated power. Order now and enjoy fast delivery and quality assurance.
Get Traco Power TMR41222 today—built for high efficiency, compact design, and reliable industrial performance.
Frequently Asked Questions
Where can I buy TRACO POWER TMR41222?
You can click on the BUY or RFQ button to purchase TMR41222 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMR41222?
You can download the TMR41222 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMR41222?
TRACO POWER
