TRACO POWER THN302412WI DC-DC Converter Module
The THN-30-2412WI is a high-performance, board-mounted isolated DC-DC converter with a single output. It features a precisely regulated output voltage and an ultra-wide input voltage range of 4:1, making it suitable for various power management applications. This 30W converter offers high efficiency, up to 92%, and high power density, ensuring reliable performance. It incorporates a shielded metal case with an isolated baseplate, over-temperature protection, and an adjustable output voltage. The module supports remote on/off control, has no minimum load requirement, and provides 1500V DC isolation between input and output. Its operational temperature spans from -40°C to +80°C, making it suitable for industrial, communication, and networking environments, especially where space is limited on the PCB.
TRACO POWER THN302412WI DC-DC Converter Module Specifications:
- Power Output: 30W
- Input Voltage Range: 4:1 ultra-wide range
- Input current at no load: 10 mA at 24V, 8 mA at 48V
- Output Voltage: 3.3V, 5V, 12V, 15V, 24V, or adjustable up to 6V
- Output Current Max: 7000 mA for 3.3V and 5V models, 2500 mA for 12V, 2000 mA for 15V, 1250 mA for 24V
- Efficiency: Up to 92%
- Temperature Range: -40°C to +80°C, up to +85°C with heat sink
- Isolation Voltage: 1500 VDC input/output, 11000 VDC input/case
- Dimensions: 1.0” x 1.0” x 0.4” (25.4 x 25.4 x 10.16 mm)
- Operating Humidity: 5% to 95% RH non-condensing
- Over Temperature Protection: Yes, shutdown at 115°C
- Over Voltage Protection: Yes, within specified voltage ranges
- Ripple & Noise: 75 mVp-p (typical)
- Short Circuit & Overload Protection: Yes, hiccup mode
- Compliance: UL/cUL 60950-1, IEC/EN 60950-1, RoHS compliant
- Isolation Capacitance: 1500 pF max

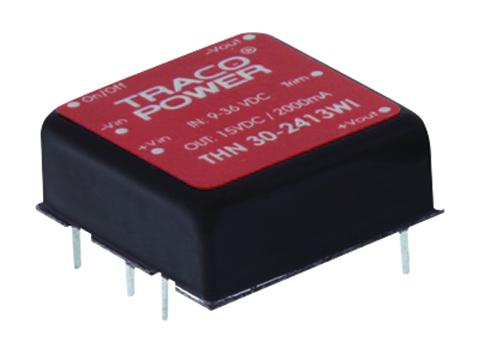

Buy the Buy Traco Power DC/DC Converter Part Number THN 30WI Series Online
Purchase the Traco Power DC-DC converter module online today to ensure your system benefits from high efficiency, wide input range, and robust isolation. Its compact size fits perfectly in space-limited applications like industrial control, communications, and instrumentation. Designed with reliability in mind, it features adjustable output voltage, over-temperature and short-circuit protections, and up to 92% efficiency for optimal power conversion. Easy remote on/off control, no minimum load requirement, and operation from -40°C to +80°C make this module ideal for demanding environments requiring durable and efficient power solutions.
Get Traco Power THN 30WI series converter today—compact, high efficiency, and built for reliable power management in space-constrained environments.
Frequently Asked Questions
Where can I buy TRACO POWER THN302412WI?
You can click on the BUY or RFQ button to purchase THN302412WI from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THN302412WI?
You can download the THN302412WI datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THN302412WI?
TRACO POWER
