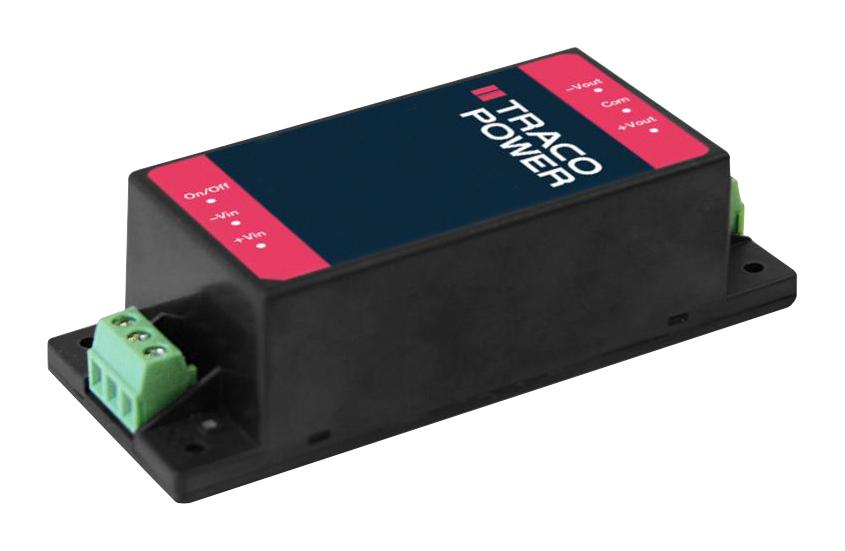

TRACO POWER TMDC104825 Industrial DC/DC Converter
The TMDC 10 series is a compact, fully encapsulated DC/DC converter delivering 10 watts output power, designed for harsh industrial environments. It features an ultra-wide input voltage range of 9-36 VDC or 18-75 VDC with regulated outputs, and high efficiency up to 86%. The modules offer 3000 VDC isolation, integrated filters that minimize emissions and enhance immunity, and operate reliably from -40°C to +80°C without derating. Certified to IEC/EN/UL 62368-1 standards, they include DC-OK and remote On/Off functions, making them ideal for demanding industrial applications.
TRACO POWER TMDC104825 Industrial DC/DC Converter Specifications:
- Input Voltage Range: 9-36 VDC or 18-75 VDC
- Output Power: 10 Watts
- Output Voltage Options: 5.1 V, 12 V, 15 V, 24 V, ±12 V, ±15 V, ±24 V
- Input Current at No Load: 24V models 30 mA typ., 48V models 20 mA typ.
- Surge Voltage: 50 VDC (24V), 100 VDC (48V, 1s)
- Isolation Voltage: 3000 VDC
- Operating Temperature Range: -40°C to +80°C without derating
- Efficiency: Up to 86%
- Protection: Overload, undervoltage, short circuit
- Dimensions: 3.11 x 1.34 x 0.87 inches (79 x 34 x 22 mm)
- EMC Standards: EN 55032 Class A, EN 55035 immunity
- Certifications: IEC/EN/UL 62368-1, RoHS, Reach
- Cooling: Natural convection
- Housing Material: UL 94V-0 plastic
- Remote ON/OFF Control: 3.5-12 VDC or open circuit for ON, 0-1.2 VDC for OFF
Buy the Traco Power TMDC 10-4815 U–Reliable Industrial DC/DC Converter for Harsh Environments
Purchase the Traco Power Series TMDC 10-4815 today for robust 10-watt power conversion with wide input range, enhanced EMC immunity, and 3000 VDC isolation. This compact, fully encapsulated module is ideal for demanding industrial applications, providing regulated outputs and operating reliably from -40°C to +80°C without derating. Featuring UL 62368-1 safety certification, integrated EMC filters, and remote On/Off control, this converter ensures dependable performance in harsh environments. Enhance your system’s reliability by ordering online now.
Order your Traco Power Series TMDC 10-4815 high-performance industrial DC/DC converter today and ensure reliable power delivery in tough environments.
