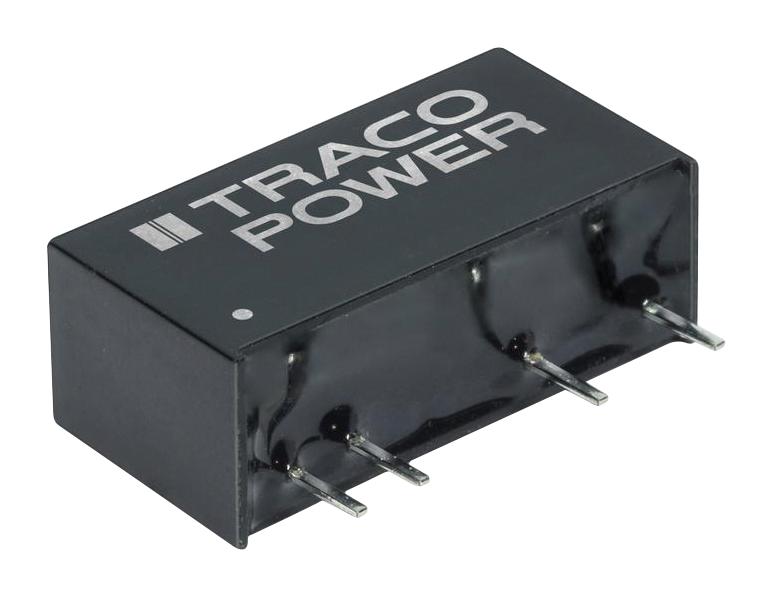

TRACO POWER TRV10521M Medical Power Converter
The TRV 1M series offers compact 1 watt DC/DC converters designed for medical and industrial applications. Featuring reinforced isolation of 5000 VAC, these converters ensure patient safety and reliable operation. They support input voltages from 5V to 24V, with semi-regulated outputs and protections including short circuit and low leakage current below 2 pA. Certified according to IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1, they operate efficiently up to 85% and withstand temperatures from -40°C to +85°C without derating. Suitable for high-altitude, medical equipment and isolation systems, these converters combine safety, durability, and performance in a small SIP-9 package.
TRACO POWER TRV10521M Medical Power Converter Specifications:
- Input Voltage Range: 5V, 12V, 15V, 24V DC (±10%)
- Input Current at no load: 5V models 30 mA, 12V models 30 mA, 15V models 15 mA, 24V models 10 mA
- Surge Voltage: 5V models 6 VDC max, 12V/15V models 25 VDC max (1 s), 24V models 40 VDC max (1 s)
- Output Power: 1 Watt
- Output Voltage Range: 3.3V, 5V, 12V, 15V with corresponding max currents
- Output Voltage Tolerance: ±3.5% max at 60% load; ±3.5% max at 90% load for some models
- Output Regulation: 0.2% max. (single output), 10% max. (dual output, 3.3V and 5V models), 7% max. (other models)
- Ripple and Noise: 75 mVp-p typical, 100 mVp-p max.
- Operating Temperature Range: -40°C to +85°C without derating
- Efficiency: up to 85%
- Isolation Voltage: 5000 VAC (input to output)
- Isolation Resistance: >70,000 MΩ at 500 VAC
- Leakage Current: <2 pA
- Certifications: IEC/EN/ES 60601-1 3rd edition, IEC/EN/UL 62368-1
- Dimensions: Approximately 0.5x0.25 inches (12.7x6.35 mm), through-hole mounting
- Housing: Non-conductive UL94 V-0 plastic, silicone potting
- Altitude: Up to 5000 meters
- Cooling: Natural convection
- Switching Frequency: 220-380 kHz
- Safety Standards: Medical, safety isolation and reinforced insulation
Buy the Traco Power Series Medical DC/DC Converter: TRV10521M
Order the Traco Power TRV10521M online today and enjoy high-quality medical-grade DC/DC conversion. Perfect for safety-critical applications needing reinforced 5000 VAC isolation, wide input voltage support, and low leakage current. Suitable for medical devices, industrial equipment, and high-altitude environments, this 1-watt converter offers up to 85% efficiency, certified safety standards, and operation from -40°C to +85°C without derating. Compact, reliable, and easy to integrate for applications demanding safety, durability, and performance.
Get Traco Power TRV10521M today—reliable medical-grade insulation and compact design for precise applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRV10521M?
You can click on the BUY or RFQ button to purchase TRV10521M from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRV10521M?
You can download the TRV10521M datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRV10521M?
TRACO POWER
