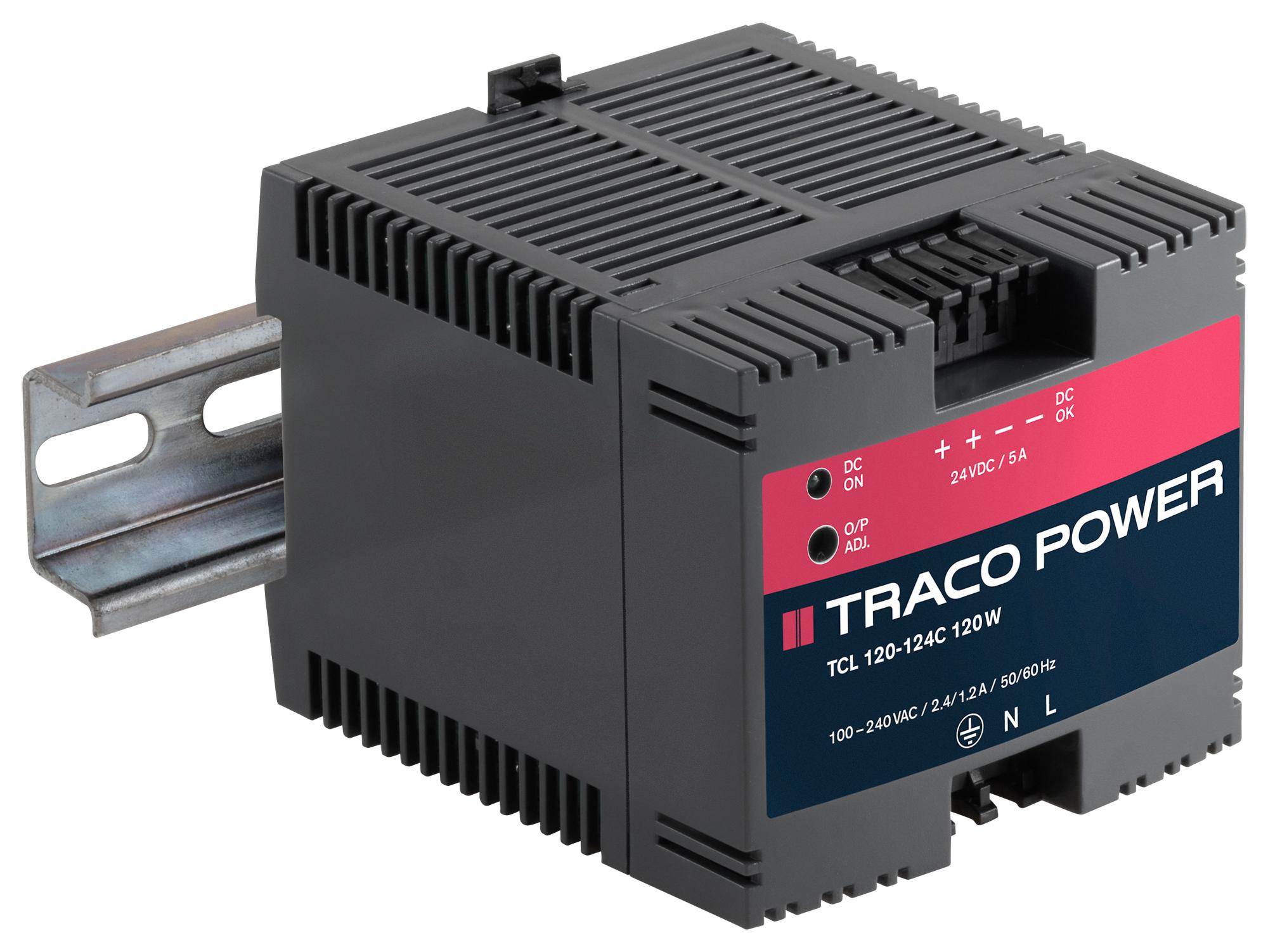

TRACO POWER TCL120124C Industrial Power Supply
The TCL120124C is a high-performance DIN-rail power supply with an output of 24 VDC and a maximum current of 5 A. It features an universal input range of 85-264 VAC, low ripple and noise, overvoltage and short-circuit protection, and a compact design suitable for industrial and automation applications. The power supply is certified with UL, CSA, and CE safety standards, ensuring reliable operation in harsh environments. Its robust construction, efficient performance, and adjustable output voltage make it ideal for sensitive electronic loads and industrial automation systems.
TRACO POWER TCL120124C Industrial Power Supply Specifications:
- Input Voltage Range: 85-264 VAC, 85-375 VDC
- Output Voltage: 24 VDC, adjustable between 24-28 VDC
- Output Current: 5 A
- Maximum Power: 120 W
- Ripple and Noise: <50 mV pk-pk
- Efficiency: 88% typ.
- Isolation Voltage: 3000 VAC
- Protection: Overvoltage, short-circuit, overload
- Mounting: DIN-rail with optional wall/chassis mounting brackets
- Operating Temperature: -10°C to +70°C, derating at higher temperatures
- Safety Standards: UL 60950-1, CSA C22.2, EN 60950-1, IEC 60950-1
- Dimensions: 100 mm x 99 mm x 30 mm
- Weight: 440 g
Buy the TracoPower Series TCL24VDC: TCL120124C
Order the Traco Power TCL120124C online now to ensure your industrial projects are powered with a reliable, efficient, and UL/CSA certified power supply. Designed with adjustable output voltage from 24 to 28 VDC and capable of delivering up to 5 A, this compact DIN-rail power supply provides minimal ripple and noise for sensitive electronic loads. Its robust construction ensures durability in industrial environments. Easy to install with snap-on DIN-rail mounting or optional wall brackets, it offers exceptional performance for automation, industrial control systems, and electronic devices. Secure your supply today!
Buy Traco Power TCL120124C now and experience unmatched reliability and performance in industrial and automation power applications.
Frequently Asked Questions
Where can I buy TRACO POWER TCL120124C?
You can click on the BUY or RFQ button to purchase TCL120124C from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TCL120124C?
You can download the TCL120124C datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TCL120124C?
TRACO POWER
