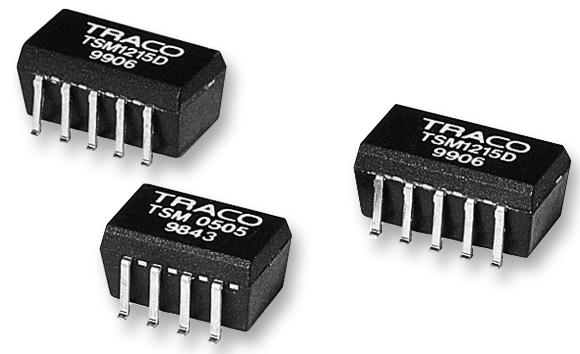

TRACO POWER TSM0512S DC/DC Converter
The TSM Series 1 Watt DC/DC converters are compact, high-efficiency, isolated power modules ideal for point-of-load applications, noise reduction, and digital interfaces. Packaged in SMD SOIC-14/18 form, these converters operate from -40°C to +85°C and support lead-free reflow soldering up to 245°C. They feature 1000 VDC isolation, high pin co-planarity accuracy, and are rohs compliant with a 3-year warranty, suitable for automated SMT assembly, ground loop elimination, and low-profile power conversion needs.
TRACO POWER TSM0512S DC/DC Converter Specifications:
- Power: 1 Watt
- Input Voltage Range: 5 VDC, 9 VDC, 12 VDC, 15 VDC, 24 VDC models available
- Output Voltage: 5V, 9V, 12V, 15V, 24V options; dual and single output configurations
- Output Current: Up to 200 mA depending on model
- Isolation Voltage: 1000 VDC between input and output
- Efficiency: Up to 82%
- Operating Temperature: -40°C to +85°C without derating
- Reflow Solder Temperature: Up to 245°C
- Dimensions: Small footprint with pin pitch of 2.54 mm; typical length approximately 7.62 mm and width 6.5-8.3 mm depending on model
- Construction: Lead frame technology, epoxy molded casing, RoHS compliant
- Reliability: MTBF greater than 2,000,000 hours
- Certifications: UL94V-0 flammability, RoHS compliant
- Humidity: Up to 95% non-condensing
Buy the TracoPower Series TSM DC/DC Converter: TSM0512S
Purchase the TracoPower TSM0512S DC/DC converter online today and experience reliable, high-efficiency power conversion in a compact SMD package. Perfect for low-voltage applications, it offers isolated output voltages up to 12V, with a maximum current of 80mA. Its industrial-grade construction ensures durability, wide operating temperature, and RoHS compliance. Ideal for replacing bulky transformers or linear regulators, this converter enables efficient power management for industrial, automation, or digital interface systems, all with the convenience of online ordering.
Get TracoPower TSM0512S today—built for precision, reliability, and long-lasting durability in space-saving power modules.
Frequently Asked Questions
Where can I buy TRACO POWER TSM0512S?
You can click on the BUY or RFQ button to purchase TSM0512S from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TSM0512S?
You can download the TSM0512S datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TSM0512S?
TRACO POWER
