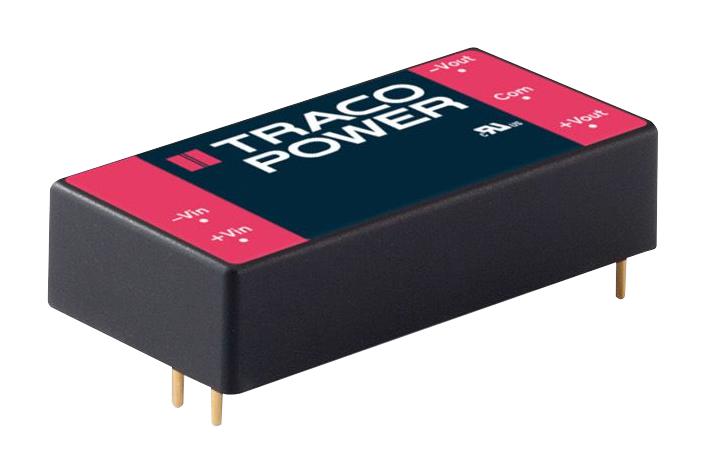

TRACO POWER TRI202412 DC/DC Converter
The TRI 20 Series is a high-isolation, regulated 20-watt DC/DC converter designed in a compact 2”x1” package. It offers reinforced insulation with withstand voltages up to 8000 VDC and 5940 VDC rated for 1000 VAC working voltage. The series features excellent efficiency up to 90%, low no-load power consumption (240-480 mW), and an input voltage range of 9-75 VDC with various output options. Suitable for industrial, transportation, and instrumentation applications, it complies with IEC/EN/UL 62368-1 safety standards and provides protection against overload, overvoltage, and short circuits.
TRACO POWER TRI202412 DC/DC Converter Specifications:
- Input Voltage Range: 9-75 VDC, 2:1 range
- Input Current (full load): 10-20 mA typ.
- Isolation Voltage: 8000 VDC test, 1000 VAC working
- Output Power: 20 Watts
- Efficiency: Up to 90%
- Operating Temperature: -40°C to +76°C (deratings for temperatures above +55°C)
- Protection: Overload, overvoltage, short circuit
- Ripple & Noise: 50-150 mVp-p depending on output
- Dimensions: 2” x 1”, weight approx. 30 g
- Safety Certifications: IEC 62368-1, UL 62368-1
- Isolation Resistance: >10 MΩ at 500 VDC
- Insulation System: Reinforced insulation, dielectric withstand voltage up to 8000 VDC
- Housing: Non-conductive plastic (UL94 V-0 rated)
- Cooling: Natural convection
- Start-up Time: <30 ms
- Pin Configuration: Through-hole (THD)
- Compliance: RoHS, Reach
Buy the Traco Power Series TRI 20 DC/DC Converter: TRI202412
Enhance your industrial or instrumentation systems with the high-performance Traco Power TRI 20 series DC/DC converter. Offering reinforced isolation up to 8000 VDC, efficiency up to 90%, and a wide input range from 9 to 75 VDC, this compact 20-watt power module ensures reliable and safe operation in demanding environments. Its excellent protections against overload, overvoltage, and short circuit, along with compliance to IEC/EN/UL 62368-1 safety standards, make it the ideal choice for professionals seeking durability and efficiency. Order online today for fast delivery and reliable power solutions.
Buy Traco Power TRI 20 series DC/DC converter now and experience unmatched reliability, high isolation, and efficient power regulation for demanding industrial applications.
Frequently Asked Questions
Where can I buy TRACO POWER TRI202412?
You can click on the BUY or RFQ button to purchase TRI202412 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TRI202412?
You can download the TRI202412 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TRI202412?
TRACO POWER
