XP POWER FASMA10SFR EMI Filter

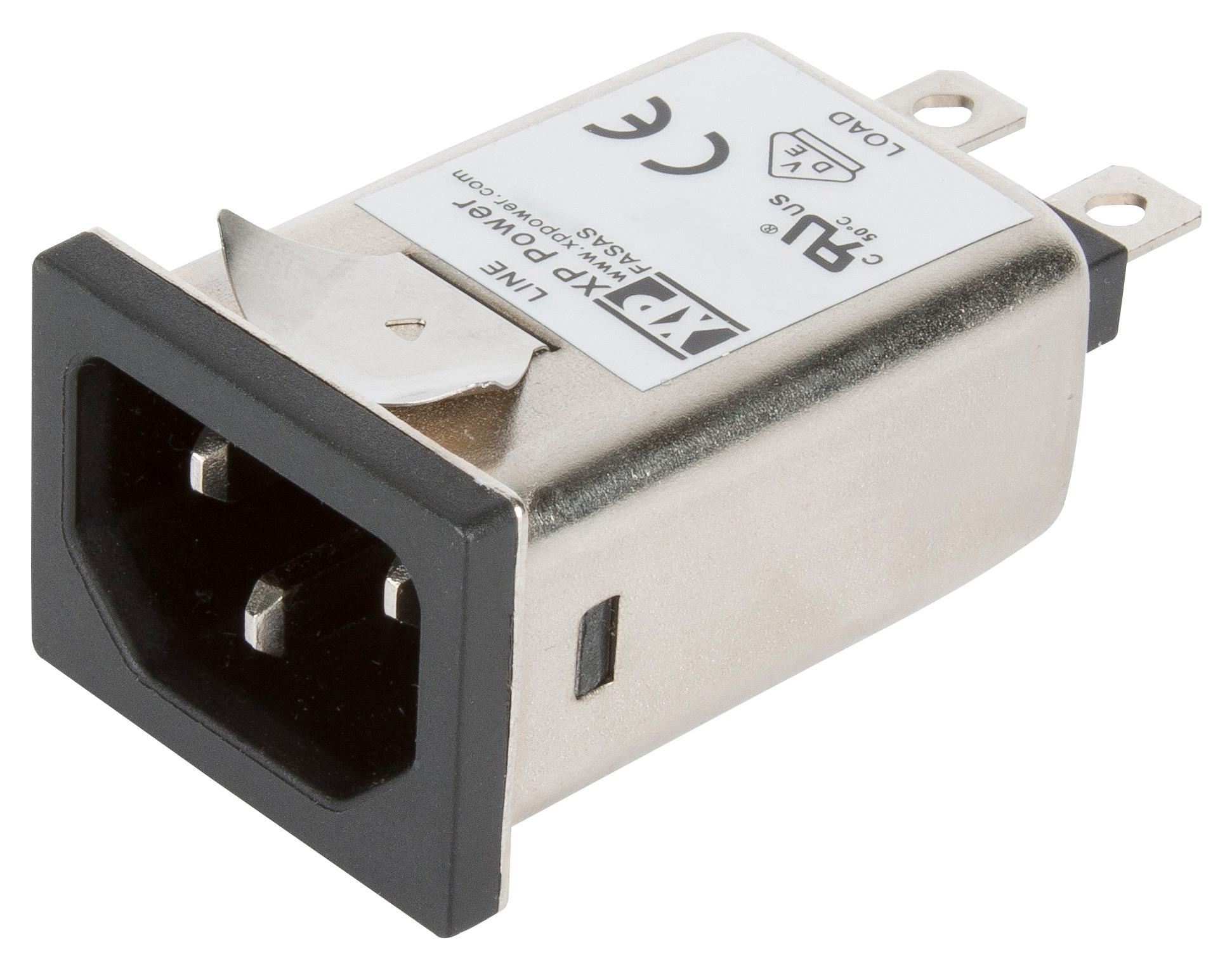

The FASM is a compact EMI filter with an IEC 320-C14 inlet, designed to provide excellent attenuation of electromagnetic interference in electrical equipment. It features a shielded metal body, a bleed resistor for safe discharge of filter capacitors, and is suitable for medical and general appliance applications. The filter has a low earth leakage current of 5µA at 250VAC, meets safety approvals such as EN60939-2 and ANSI/UL1283, and operates across a wide temperature range from -40°C to +110°C, with full power capability up to +50°C. Available in ratings of 1A, 3A, 6A, and 10A, with screw mount and Faston terminals.
XP POWER FASMA10SFR EMI Filter Specifications:
- Rated Voltage: 250VAC
- Rated Current: 1A, 3A, 6A, 10A (see models)
- Earth Leakage Current: 5µA @ 250VAC
- Frequency: 50/60Hz
- Connection Terminals: Faston 6.3 x 0.8mm
- Operating Temperature Range: -40°C to +110°C
- Full Power Operation: Up to +50°C
- Protection: Metal shielded body, bleed resistor for capacitor discharge
- Safety Approvals: EN60939-2, ANSI/UL1283
- Applicable for medical and general appliances
- Dimensions: Mounting holes 0.85 inches (21.6 mm) apart, panel cut-out recommended
- Certifications: CE, UKCA
Buy the Buy XP Power EMI Filter Part Number FASMA10SFR Online
Order the XP Power EMI Filter FASMA10SFR online today to enhance your electrical equipment with superior EMI attenuation. This compact, shielded filter features a robust construction, safety approvals, and an integrated bleed resistor for safe capacitor discharge. Suitable for medical and appliance applications, it operates efficiently across wide temperature ranges. With rated currents up to 10A and low earth leakage, it guarantees reliable performance and safety compliance. Experience fast, secure online purchasing and improve your equipment’s electromagnetic compatibility today.
Buy XP Power FASMA10SFR now and ensure reliable electromagnetic interference suppression with a high-quality, medical-grade EMI filter.
