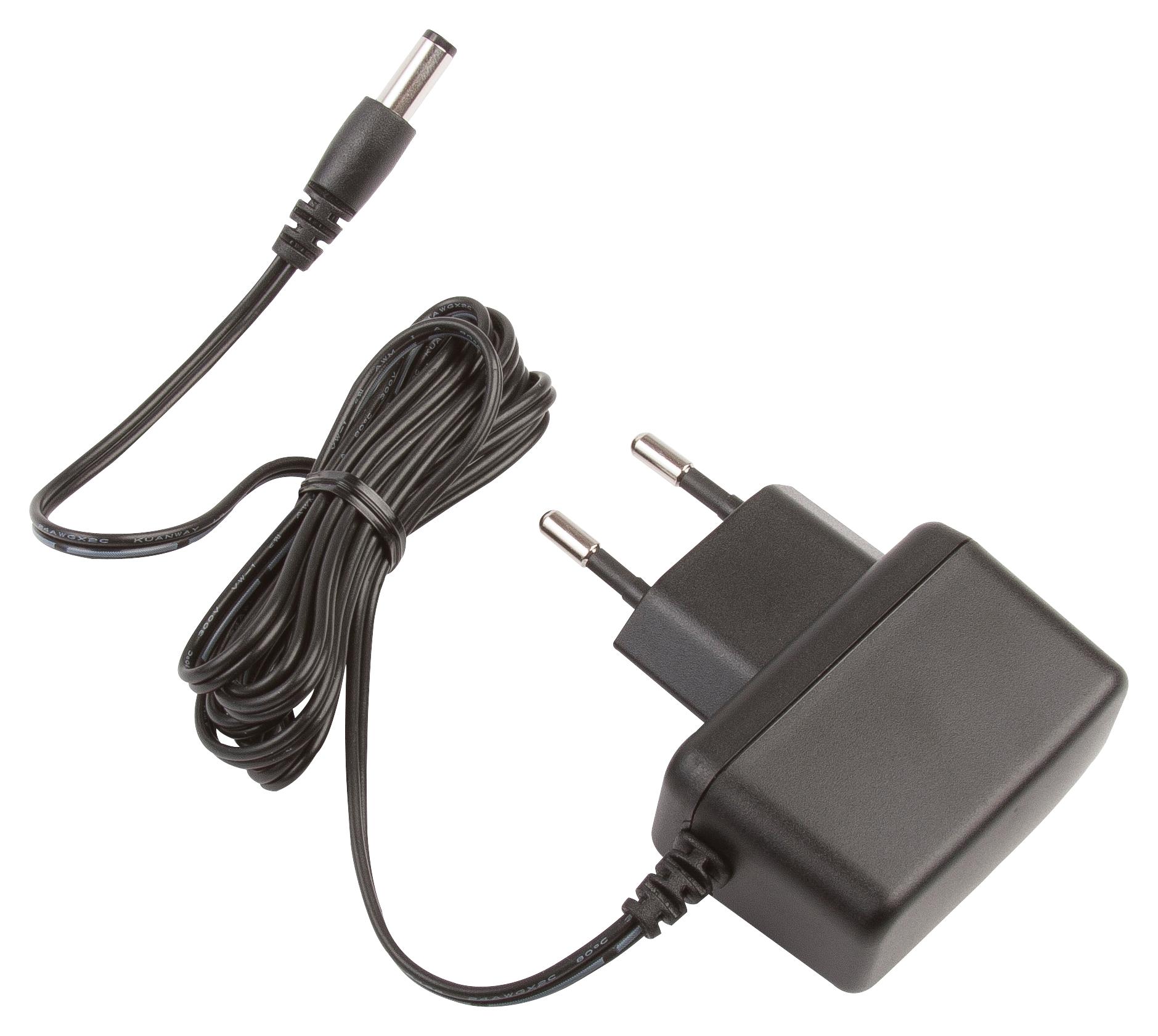

XP POWER VEL36US180EUJA Power Supply
The VEL36 series wall plug adaptors meet the latest Energy Efficiency Level VI standards, offering high active mode efficiency and extremely low no-load power consumption. Equipped with a standard DC jack connector, these power adapters are suitable for a wide range of cost-sensitive applications while maintaining industry-leading performance. They feature Universal Input, fixed mains connectors, and output voltages ranging from 12V to 24V. The output connector is a 5.5mm x 2.1mm x 12mm DC jack. Built with Class II construction, they are approved under UL/cUL 60950-1 and EN 60950-1 standards. Dimensions are 94mm x 35mm x 64.8mm. Typical applications include power management and consumer electronics.
XP POWER VEL36US180EUJA Power Supply Specifications:
- Input Voltage: 100-240 VAC
- Input Frequency: 50/60 Hz
- Input Current: Not specified
- Power Factor: EN61000-3-2, class A
- Efficiency: 87% at full load
- Energy Efficiency Level: VI
- Output Voltage: 12V, 16V, 18V, 24V (model dependent)
- Output Power: 36W
- Output Connector: 5.5mm x 2.1mm x 12mm DC jack
- Dimensions: 94mm x 35mm x 64.8mm
- Protections: Overcurrent, short circuit; UL/cUL 60950-1, EN 60950-1 approved
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Isolation: 3000 VAC
- Switching Frequency: 70 kHz
- Material: Class II construction, UL listed
Buy the XP Power Series Power Supply: VEL36US180EUJA
Purchase the XP Power VEL36US180EUJA power supply online today for reliable, energy-efficient operation. Designed for consumer electronics, industrial, and automation applications, it provides stable output voltages from 12V to 24V, with a compact size of 94mm x 35mm x 64.8mm. Featuring high efficiency at 87%, UL/cUL and EN certifications, and low no-load power consumption, this power supply ensures safety, durability, and compliance for cost-sensitive projects. Order now for quick delivery and support.
Get XP Power VEL36US180EUJA today—built for precision and long-lasting durability in power supply solutions.
