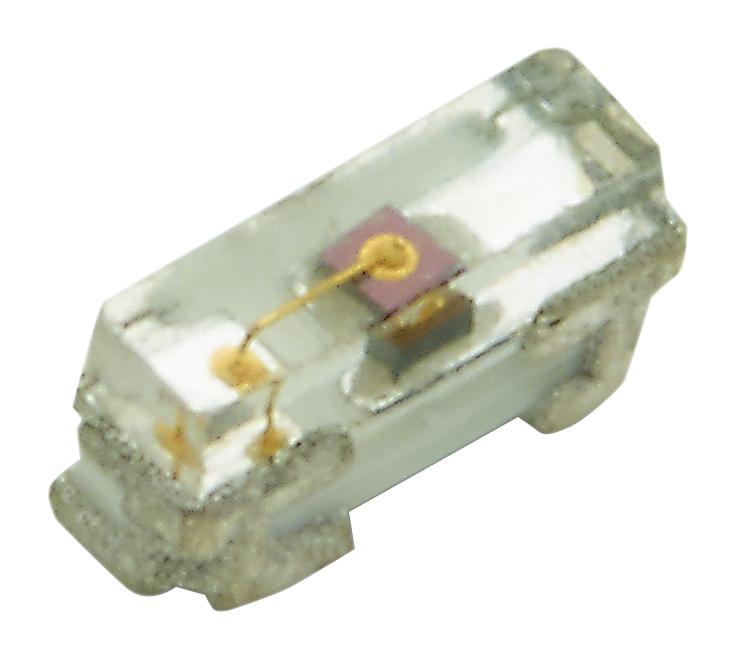

BROADCOM HSMRC230 Blue Side-Mount ChipLED
The Broadcom HSMR-C230 is a compact blue side-emitting surface-mount chipLED designed for tight spaces like wearables and portable devices. Measuring just 1.0 mm x 0.55 mm with a low profile height of 0.3 mm, it offers high brightness with efficient InGaN technology. Suitable for applications such as backlighting and indicators, it integrates seamlessly with industry-standard manufacturing processes like reflow soldering. Its rugged design ensures reliable performance in a wide operating temperature range, making it ideal for modern miniaturized electronic devices.
BROADCOM HSMRC230 Blue Side-Mount ChipLED Specifications:
- Package dimensions: 1.0 mm x 0.55 mm x 0.3 mm height
- Material: InGaN
- Color: Blue
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- DC Forward Current: 10 mA
- Peak Forward Current: 40 mA
- Power Dissipation: 31 mW
- Forward Voltage: 2.55 to 3.15 V
- Luminous Intensity: 18 cd typical
- Dominant Wavelength: 468 nm
- Viewing Angle: 175 degrees
- Reflow compatible, packaged on 8 mm reel
Buy the Broadcom Series HSMR-C230 Blue Color Side-Mount ChipLED: HSMRC230
Purchase the Broadcom HSMR-C230 Blue Side-Mount ChipLED online today and enhance your small electronic devices with high brightness and reliable performance. Its compact size of 1.0 mm x 0.55 mm and low profile height of 0.3 mm make it ideal for wearables, portable gadgets, and indicator applications. Designed for reflow soldering, this LED ensures easy integration into industry-standard manufacturing processes. With excellent brightness, wavelength, and angle, it guarantees optimal visibility and efficiency in space-constrained designs, delivering durability and consistent operation in various environments.
Order your Broadcom Series HSMR-C230 Blue Color Side-Mount ChipLED today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy BROADCOM HSMRC230?
You can click on the BUY or RFQ button to purchase HSMRC230 from an authorized BROADCOM distributor.
How do I troubleshoot issues or seek technical support for part HSMRC230?
You can download the HSMRC230 datasheet or visit the BROADCOM website for support.
Who is the manufacturer of HSMRC230?
BROADCOM
