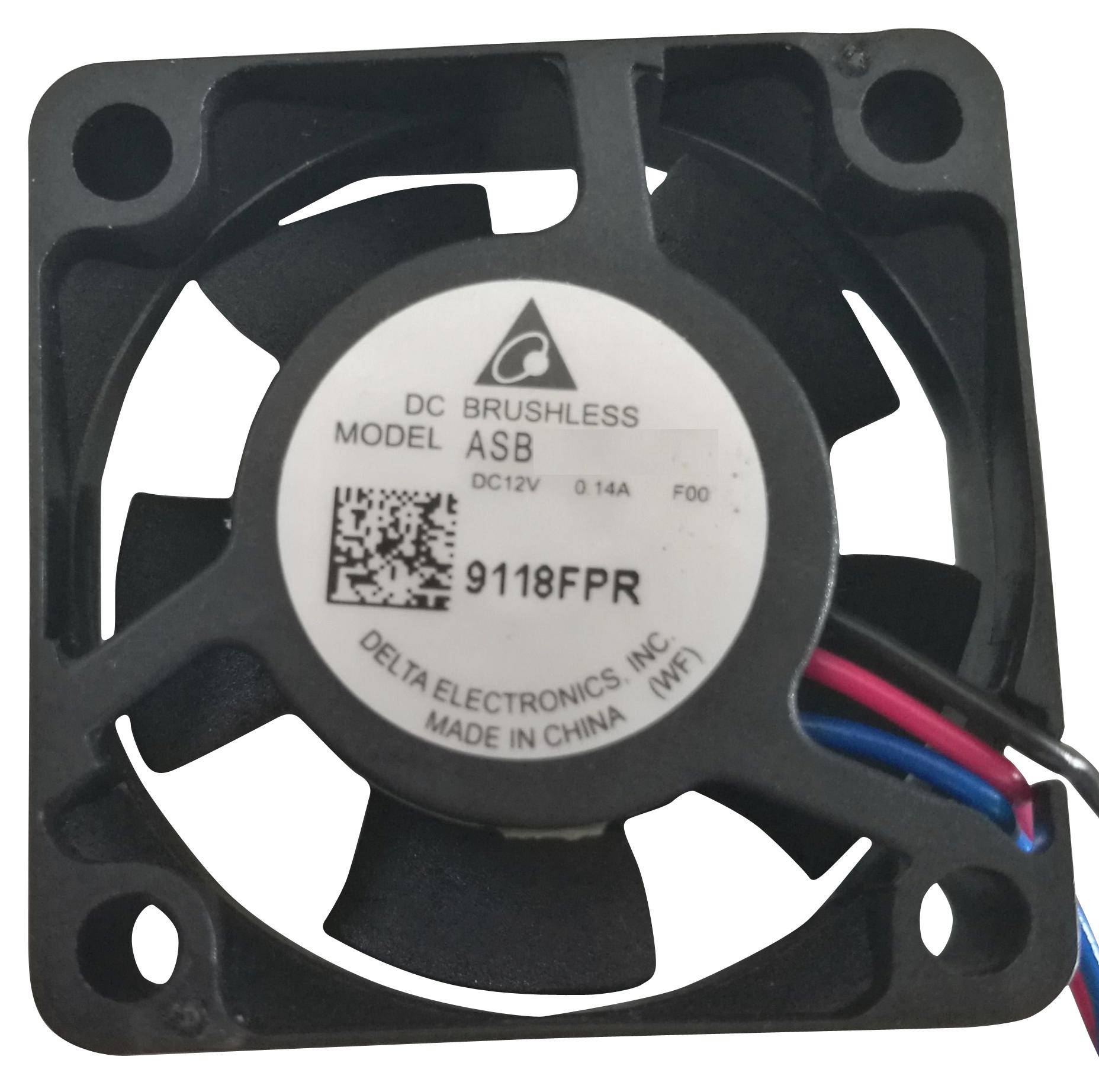

DELTA ELECTRONICS / FANS ASB0312HADR00 Axial Cooling Fan
This compact, high-performance DC brushless axial flow fan operates at 12 VDC with a maximum current of 0.14 A, providing up to 0.122 m³/min airflow at 10500 RPM. Designed for reliable continuous operation with a lifespan of 20,000 hours at 40°C and 65% RH, it features UL Class A insulation, open external cover, and sleeve bearings for durability. Suitable for cooling electronic systems, server equipment, and industrial applications, it ensures stable performance under various environmental conditions with low noise levels and robust protection features including locked rotor and polarity safeguards.
DELTA ELECTRONICS / FANS ASB0312HADR00 Axial Cooling Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage Range: 7.0 - 13.2 VDC
- Minimum Start Voltage: 7.0 VDC
- Input Current (Max): 0.14 A
- Input Power (Max): 1.68 W
- Speed: 10500 RPM
- Max Air Flow: 0.122 m3/min
- Max Air Pressure: 5.44 mmH20
- Acoustical Noise: 27.0 dB-A
- Insulation Type: UL Class A
- Lifespan: 20,000 hours at 40°C, 65% RH
- Rotation: Counterclockwise from front view
- Lead Wires: UL 1061 AWG #28 with Black (–), Red (+), Blue (lock signal)
- Environmental Temperature Range: -10°C to +70°C
- Storage Temperature Range: -40°C to +75°C
- Operating Humidity: 5% to 90% RH
- Protection: Locked rotor and polarity protection
- Material: Plastic UL:94V-0 for frame and impeller
- Connector: External wire leads
Buy the Delta Series Axial Fan: ASB0312HA-DROO
Purchase the Delta Series Axial Cooling Fan ASB0312HA-DROO online today for reliable performance in cooling electronic devices, servers, and industrial machinery. This fan features a durable plastic frame, UL Class A insulation, and sleeve bearings, offering up to 20,000 hours of continuous operation. It operates at 12 VDC with a maximum current of 0.14 A and provides an airflow of 0.122 m³/min at 10500 RPM, making it ideal for maintaining optimal temperature and ensuring equipment longevity. Easy to install and tested for performance, this fan is your reliable cooling solution.
Get Delta Series Axial Fan ASB0312HA-DROO today—built for precision cooling and long-lasting durability in electronic and industrial applications.
Frequently Asked Questions
Where can I buy DELTA ELECTRONICS / FANS ASB0312HADR00?
You can click on the BUY or RFQ button to purchase ASB0312HADR00 from an authorized DELTA ELECTRONICS / FANS distributor.
How do I troubleshoot issues or seek technical support for part ASB0312HADR00?
You can download the ASB0312HADR00 datasheet or visit the DELTA ELECTRONICS / FANS website for support.
Who is the manufacturer of ASB0312HADR00?
DELTA ELECTRONICS / FANS
