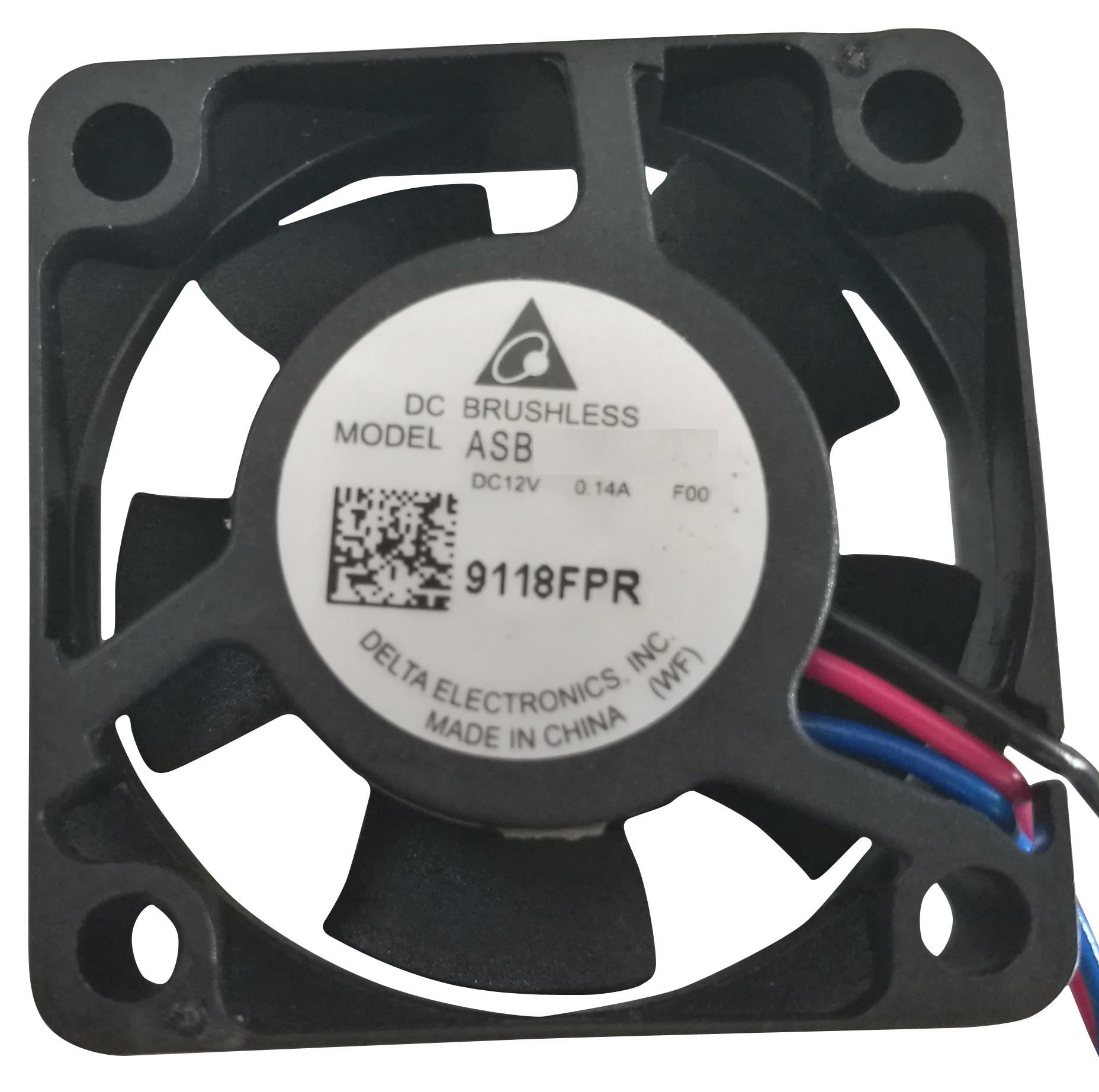

DELTA ELECTRONICS / FANS ASB0312MADR00 Cooling Fan
This DC brushless fan features a 12V DC rated voltage with a wide operational voltage range of 7.0 to 13.2V DC, ensuring reliable cooling performance in various applications. It has a rated speed of 9000+15% RPM, airflow of 0.105 m3/min, and maximum noise level of 27.5 dB-A, providing effective cooling with minimal noise. The fan is constructed with UL: 94V-0 plastic components, sleeve bearing system, and an open external cover for proper airflow. It has a life expectancy of 20,000 hours under continuous operation at 40°C with 65% RH, making it suitable for industrial and electronic cooling needs.
DELTA ELECTRONICS / FANS ASB0312MADR00 Cooling Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage: 7.0 - 13.2 VDC
- Minimum Start Voltage: 7.0 VDC
- Current: 0.06 (MAX. 0.12) A
- Input Power: 0.72 (MAX. 1.44) W
- Speed: 9000+15% RPM
- Max Air Flow: 0.105 MIN. (0.089) M3 / MIN.
- Max Air Pressure: 4.25 mmH20
- Sound Level: 23.0 MAX. (27.5) dB-A
- Insulation: UL: CLASS A
- Insulation Resistance: 10 MEG OHM MIN. AT 500 VDC
- Dielectric Strength: 5 mA MAX. AT 500 VAC 50/60 Hz
- External Cover: Open Type
- Life Expectancy: 20,000 hours
- Rotation: Counterclockwise from front view
- Lead Wires: UL 1061 AWG #28, Black (-), Red (+), Blue (Lock Signal)
- Mechanical Dimensions: Refer to detailed drawing
- Material: Plastic UL: 94V-0
- Bearings: Sleeve
- Operating Temp: -10°C to +70°C
- Storage Temp: -40°C to +75°C
- Humidity Range: 6% to 90% RH operating, 5% to 95% RH storage
- Protection: Locked Rotor Impedance, Polarity
- RoHS Compliant: Yes
- Production Location: China or Thailand
Buy the Delta Series Cooling Fan: ASB0312MA-DRO0
Order the Delta Series Cooling Fan ASB0312MA-DRO0 online today. Designed for optimal airflow and low noise operation, it provides dependable cooling for electronic devices and industrial equipment. Featuring a lifespan of 20,000 hours, UL certification, and a compact design, this fan ensures long-term performance and safety. Easy to install, with a wide voltage range from 7.0 to 13.2V DC, it is suitable for a variety of applications. Enhance your cooling systems now by purchasing this high-quality, durable fan online.
Get Delta Series Cooling Fan ASB0312MA-DRO0 today—built for reliable cooling with long-lasting durability in electronic and industrial applications.
