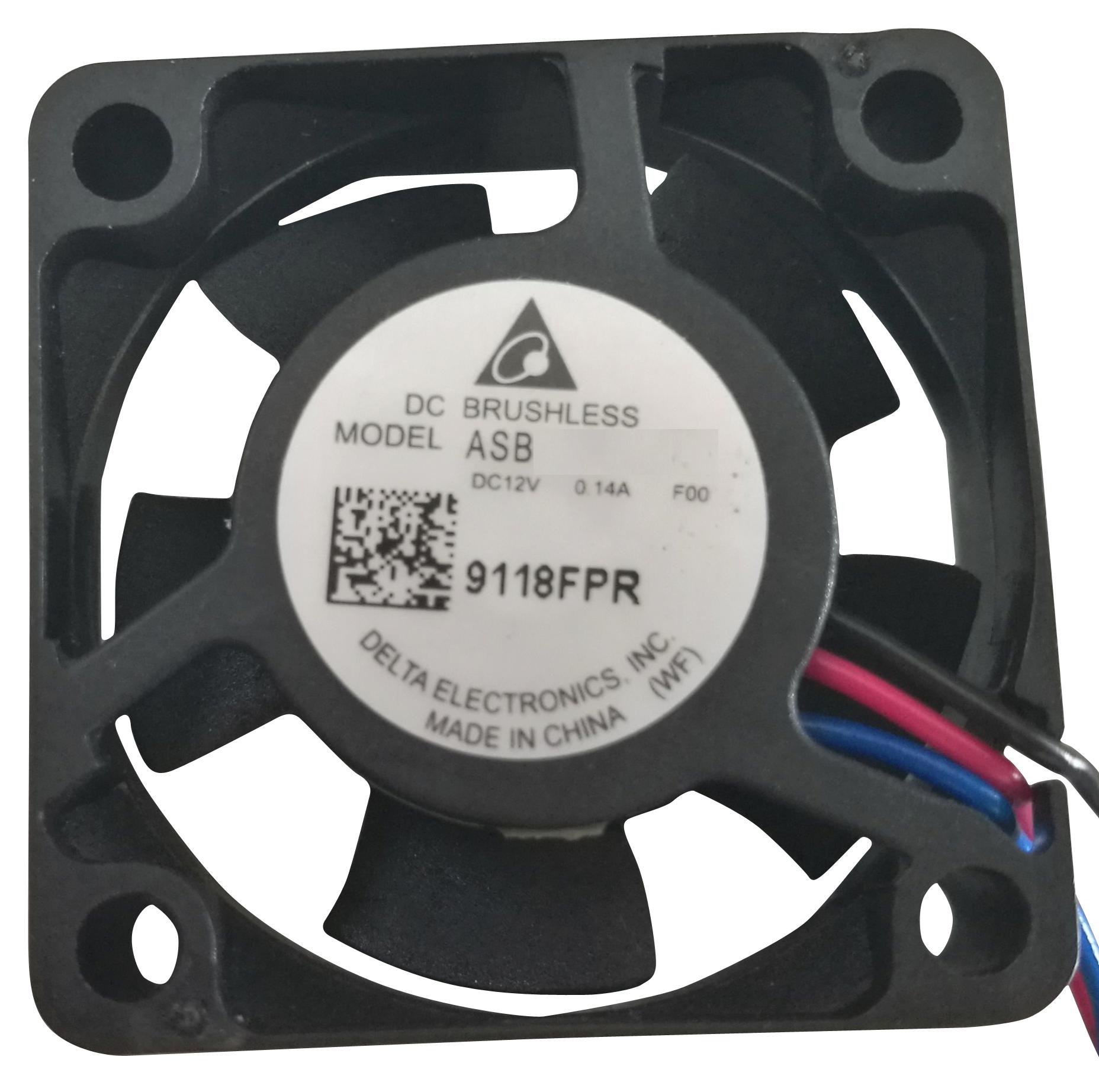

DELTA ELECTRONICS / FANS ASB0312LADR00 DC Fan
This DC fan is a compact, high-performance brushless blower designed for cooling and ventilation applications. It features a rated voltage of 12 VDC with an operational range of 7.0 - 13.2 VDC. The fan offers a maximum speed of approximately 8000 RPM, airflow of at least 0.077 M3/min, and a low noise level under 25.5 dB-A. Built with UL Class A insulation and a sleeve bearing system, it provides durable, long-lasting operation with an estimated lifespan of 20,000 hours at 40°C and 65% humidity. Suitable for electronic cooling, industrial equipment, and HVAC systems.
DELTA ELECTRONICS / FANS ASB0312LADR00 DC Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage: 7.0 - 13.2 VDC
- Minimum Start Voltage: 7.0 VDC
- Input Current: 0.05 (MAX. 0.10) A
- Input Power: 0.60 (MAX. 1.20) W
- Speed: 8000 ± 15% RPM
- Max Air Flow: 0.091 MIN. M3/Min. (3.21 CFM)
- Max Air Pressure: 3.33 MIN. mmH20 (0.131 inH20)
- Acoustical Noise: Max. 25.5 dB-A
- Insulation Type: UL Class A
- Insulation Strength: ≥10 MΩ at 500 VDC
- Dielectric Strength: Max. 5 mA at 500 VAC
- External Cover: Open type
- Life Expectancy: 20,000 hours at 40°C with 65% RH
- Rotation: Counterclockwise from front view
- Lead Wires: UL 1061 AWG #28, Black (-), Red (+), Blue (Lock Signal)
- Mechanical Dimensions: Refer to detailed drawing, approx. mm in inches
- Environmental Conditions: Operating -10°C to +70°C, Storage -40°C to +75°C, Humidity 5-90% RH
- Protection: Locked rotor, reverse polarity capable, RoHS compliant
- Production Location: China or Thailand
Buy the Buy Delta DC Fan Part Number ASB0312LA-DRO0 Online
Purchase the Delta DC Fan ASB0312LA-DRO0 online and ensure reliable cooling for your electronic devices, industrial machinery, or HVAC systems. Designed for durability, it offers a smooth operation with low noise, a lifespan exceeding 20,000 hours, and UL Class A insulation safety standards. Easy to install, this high-performance blower features adjustable operation voltage, efficient airflow, and robust construction to withstand demanding environments. Elevate your cooling solutions now with our fast, secure online ordering process for long-term operational reliability.
Get Delta DC Fan ASB0312LA-DRO0 today—built for precise cooling and long-lasting performance in industrial and electronic systems.
Frequently Asked Questions
Where can I buy DELTA ELECTRONICS / FANS ASB0312LADR00?
You can click on the BUY or RFQ button to purchase ASB0312LADR00 from an authorized DELTA ELECTRONICS / FANS distributor.
How do I troubleshoot issues or seek technical support for part ASB0312LADR00?
You can download the ASB0312LADR00 datasheet or visit the DELTA ELECTRONICS / FANS website for support.
Who is the manufacturer of ASB0312LADR00?
DELTA ELECTRONICS / FANS
