DELTA ELECTRONICS / FANS ASB0405HHAAF00 DC Fan
This is a high-performance DC brushless axial flow fan designed for reliable cooling applications. It features a compact plastic frame and impeller made of UL 94V-0 rated material, sleeve bearing system for durability, and operates at an input voltage range suitable for various electronic devices. The fan offers a maximum air flow of 0.231 m³/min with noise levels averaging 29.5 dB-A, ensuring efficient cooling while maintaining low operational noise. Its protection features include locked rotor and polarity protections, with an expected lifespan of 30,000 hours under continuous operation at 40°C, making it ideal for maintaining optimal thermal management in electronic equipment.
DELTA ELECTRONICS / FANS ASB0405HHAAF00 DC Fan Specifications:
- Operation Voltage: 7 V
- Input Current: 0.07 A
- Input Power: 0.49 W
- Max Air Flow: 0.231 m³/min (8.154 CFM)
- Air Pressure: 4.831 mmH20
- Air Flow at Zero Static Pressure: 0.196 m³/min
- Static Pressure at Zero Airflow: 0.137 inch H2O
- Noise Level: 29.5 dB-A
- Insulation: UL Class A
- Insulation Resistance: 10 Meg Ohm Min at 500 VDC
- Dielectric Strength: 5 mA Max at 500 VAC 60 Hz
- External Cover: Open Type
- Life Expectancy: 30,000 hours
- Rotation: Clockwise when viewed from nameplate side
- Wire: UL 1007 - AWG #28, black negative, red positive, blue frequency
- Dimensions: As per drawing, approximately 32.0 mm diameter, thickness 10.0 mm
- Environmental Conditions: -10°C to +70°C operating, -40°C to +75°C storage, humidity 5–90% RH operating, 5–95% RH storage
- Bearing System: Sleeve bearing
- Material: Plastic UL 94V-0
- Protection: Locked rotor, polarity
- Vibration Resistance: 3.2 g RMS
- Shock Resistance: 20 G for 11 ms pulse
- Application: Suitable for electronic and industrial cooling, ventilators, and similar equipment

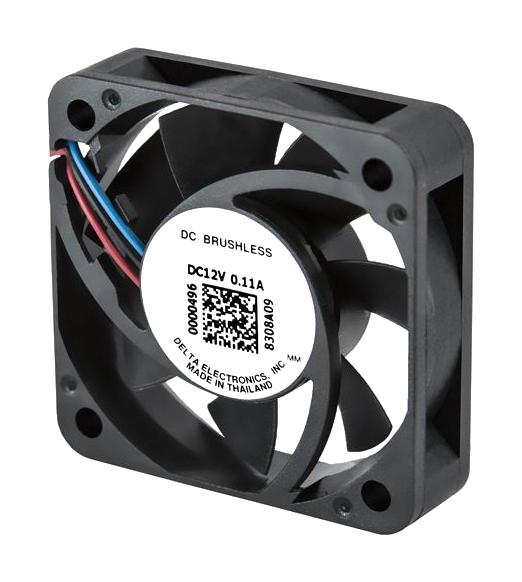

Buy the Buy Delta DC Brushless Axial Fan Part Number ASB0405HHA-AF00 Online
Purchase the Delta DC Fan online today for dependable thermal management in electronics and industrial applications. Designed with a UL 94V-0 plastic frame and sleeve bearings, this fan offers a max airflow of 0.231 m³/min with low noise levels for quiet operation. Its robust protection features, including locked rotor and polarity safeguards, ensure long-term durability up to 30,000 hours. Ideal for maintaining device efficiency, this fan is easy to install and suitable for environments from -10°C to +70°C. Order now for reliable cooling performance.
Get Delta ASB0405HHA-AF00 today—built for precision, durability, and reliable cooling in electronic systems.
