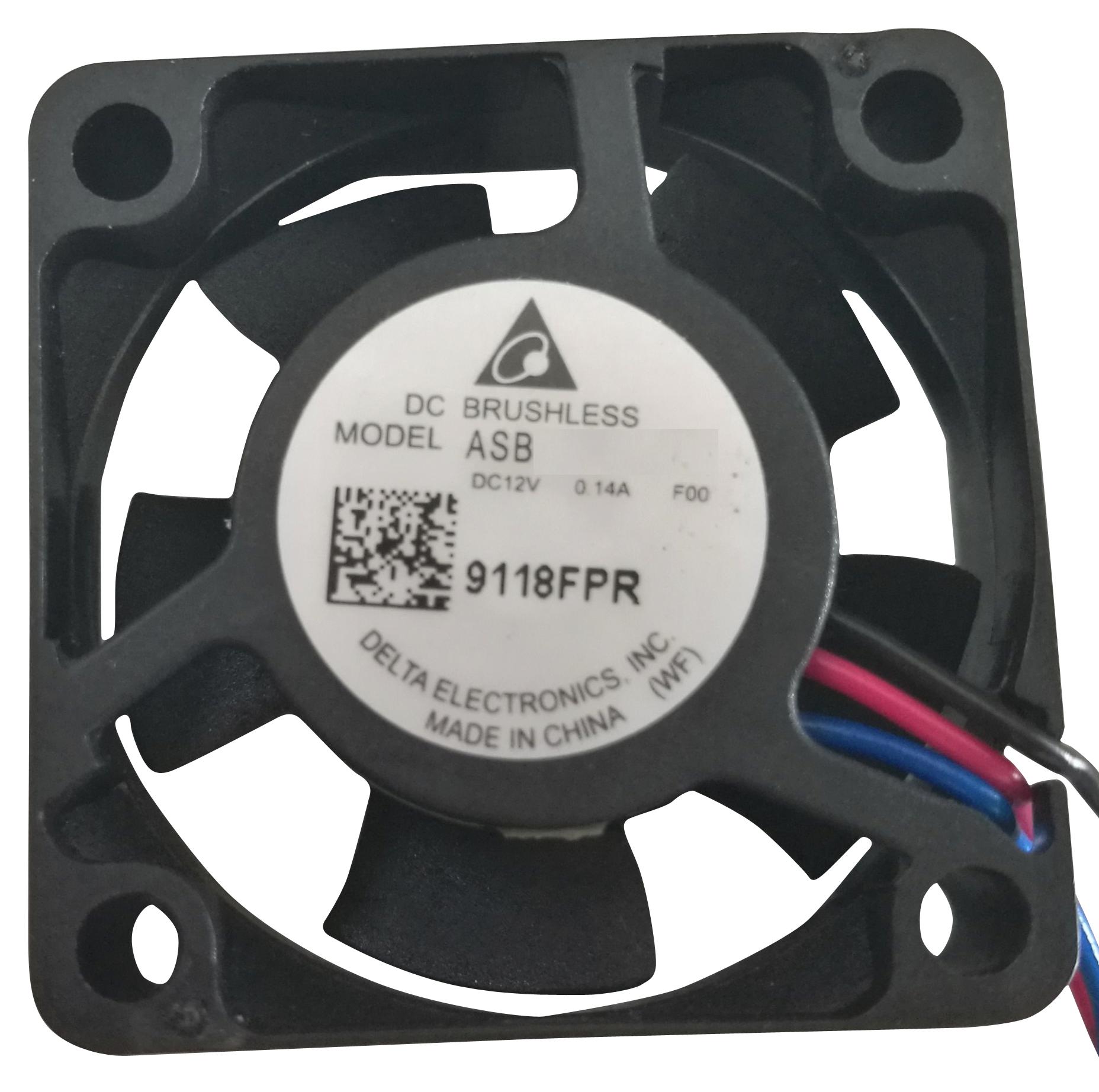

DELTA ELECTRONICS / FANS ASB0305MADF00 DC Fan
This high-quality DC brushless axial fan is designed for efficient cooling applications in electronic and industrial equipment. Operating at 5V DC with a maximum speed of 9000 RPM, it delivers an airflow of up to 0.105 m³/min and features UL Class A insulation. The fan boasts a lifespan of 20,000 hours, a sleeve bearing system, and a plastic UL 94V-0 frame and impeller, ensuring durability and low noise. Suitable for environments from -10°C to +70°C, it offers reliable performance with low power consumption and built-in safety protections.
DELTA ELECTRONICS / FANS ASB0305MADF00 DC Fan Specifications:
- Rated Voltage: 5 VDC
- Operation Voltage: 4.5 - 5.5 VDC
- Minimum Start Voltage: 4.0 VDC
- Input Current: 0.11 A (MAX. 0.19 A)
- Input Power: 0.55 W (MAX. 0.95 W)
- Speed: 9000+15% R.P.M.
- Max Air Flow: 0.105 m³/min (MIN. 0.086)
- Max Air Pressure: 4.25 mmH2O (MIN. 2.86)
- Acoustical Noise: 23.0 dB-A (MAX. 27.5)
- Insulation Type: UL Class A
- Insulation Strength: 10 Meg OHM MIN. at 500 VDC
- Dielectric Strength: 5 mA MAX. at 500 VAC 50/60 Hz
- Dimensions: Refer to detailed drawing, approximately 30mm x 24mm x 10mm
- Frame Material: Plastic UL: 94V-0
- Bearing System: Sleeve bearing
- Life Expectancy: 20,000 hours
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +75°C
- Operating Humidity: 5% to 90% RH
- Storage Humidity: 5% to 95% RH
- Lead Wires: UL1061 AWG #28 (Black: negative, Red: positive, Blue: frequency)
- Rotation: Counterclockwise from intake side
- Protection: Locked rotor impedance, polarity protection
- Compliance: RoHS, UL 1061, CE
Buy the Buy Delta DC Fan Part Number ASBO305MA-D F00 Online
Purchase the Delta DC Fan ASBO305MA-D F00 online now to ensure optimal cooling performance for your electronics or industrial equipment. Designed with a durable plastic frame and sleeve bearing, this fan offers a lifespan of 20,000 hours at 5V operation, making it ideal for continuous use. Its low noise level and high airflow capacity help maintain system stability. Easy to install with UL certification and compliance with RoHS standards, order today and enjoy fast delivery and excellent customer service for your cooling needs.
Order your Delta Series ASBO305MA-D F00 high-performance DC fan today and enhance your cooling system with reliable, low-noise operation.
Frequently Asked Questions
Where can I buy DELTA ELECTRONICS / FANS ASB0305MADF00?
You can click on the BUY or RFQ button to purchase ASB0305MADF00 from an authorized DELTA ELECTRONICS / FANS distributor.
How do I troubleshoot issues or seek technical support for part ASB0305MADF00?
You can download the ASB0305MADF00 datasheet or visit the DELTA ELECTRONICS / FANS website for support.
Who is the manufacturer of ASB0305MADF00?
DELTA ELECTRONICS / FANS
