DELTA ELECTRONICS / FANS ASB0305HADF00 DC Fan
This high-performance DC brushless fan features a 5 VDC rated voltage with an airflow of 0.122 to 0.103 m3/min at zero static pressure, providing reliable cooling in electronic applications. Constructed with UL94V-0 plastic for the frame and impeller, it offers a life expectancy of 20,000 hours under continuous operation at 40°C with 65% RH. Designed for optimal efficiency, it operates in a counterclockwise rotation from the front view, with insulation type UL Class A. Suitable for cooling systems requiring durable, quiet operation in a compact size.
DELTA ELECTRONICS / FANS ASB0305HADF00 DC Fan Specifications:
- Rated Voltage: 5 VDC
- Operation Voltage Range: 4.5 - 5.5 VDC
- Start Voltage: 4.0 VDC
- Input Current: 0.14 A (max), 0.24 A (max safety)
- Input Power: 0.70 W (max), 1.20 W (max)
- Speed: 10500 RPM ± 15%
- Airflow: 0.122 to 0.103 m3/min (at zero static pressure)
- Airflow: 4.30 to 3.65 CFM (at zero static pressure)
- Air Pressure: Max 5.44 mmH2O, Min 3.93 mmH2O
- Acoustic Noise: 27.0 to 32.0 dB-A (average)
- Insulation Type: UL Class A
- Insulation Strength: Min 10 Meg Ohm at 500 VDC
- Dielectric Strength: Max 5 mA at 500 VAC, 50/60 Hz for 1 minute
- External Cover: Open type
- Life Expectancy: 20,000 hours
- Rotation: Counterclockwise from front view
- Lead Wires: UL 1061 AWG #28, Black negative, Red positive, Blue frequency
- Environment: Operating temperature -10°C to +70°C, Humidity 5-90% RH
- Material: Plastic UL 94V-0
- Bearing System: Sleeve bearing

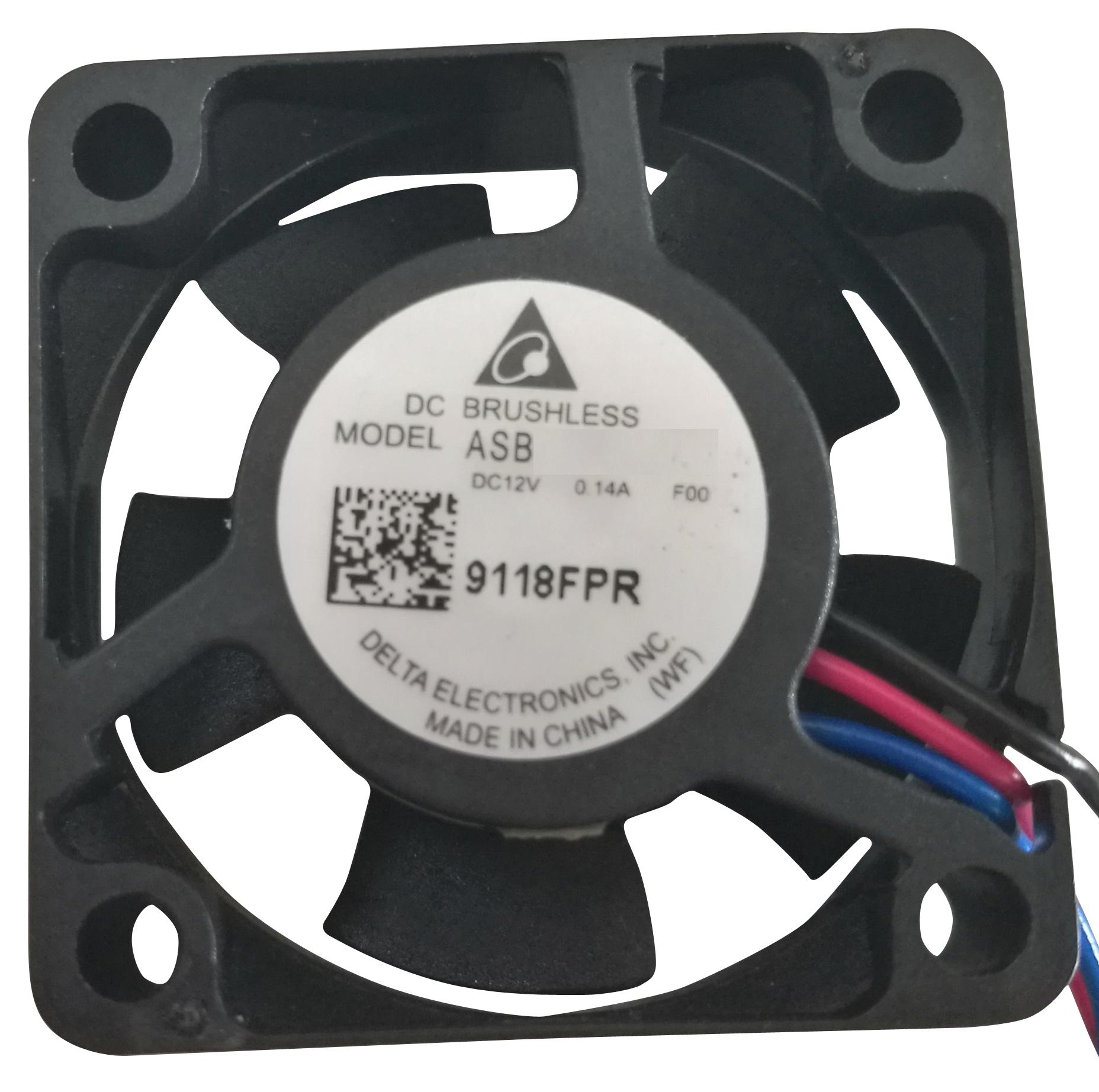

Buy the Buy Delta DC Fan Part Number ASBO305HA-DF00 Online
Experience reliable cooling with the Delta DC Fan ASBO305HA-DF00. Engineered for efficiency and durability, this fan operates at 5 VDC with a lifespan of 20,000 hours under continuous use. Designed with UL94V-0 plastic and sleeve bearings, it ensures safe operation and quiet performance. Suitable for electronic cooling systems, it features an open cover, counterclockwise rotation, and excellent airflow of up to 0.122 m3/min. Purchase online today for consistent, long-term reliability in your electronic equipment.
Get Delta DC Fan ASBO305HA-DF00 today—built for reliable cooling and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy DELTA ELECTRONICS / FANS ASB0305HADF00?
You can click on the BUY or RFQ button to purchase ASB0305HADF00 from an authorized DELTA ELECTRONICS / FANS distributor.
How do I troubleshoot issues or seek technical support for part ASB0305HADF00?
You can download the ASB0305HADF00 datasheet or visit the DELTA ELECTRONICS / FANS website for support.
Who is the manufacturer of ASB0305HADF00?
DELTA ELECTRONICS / FANS
