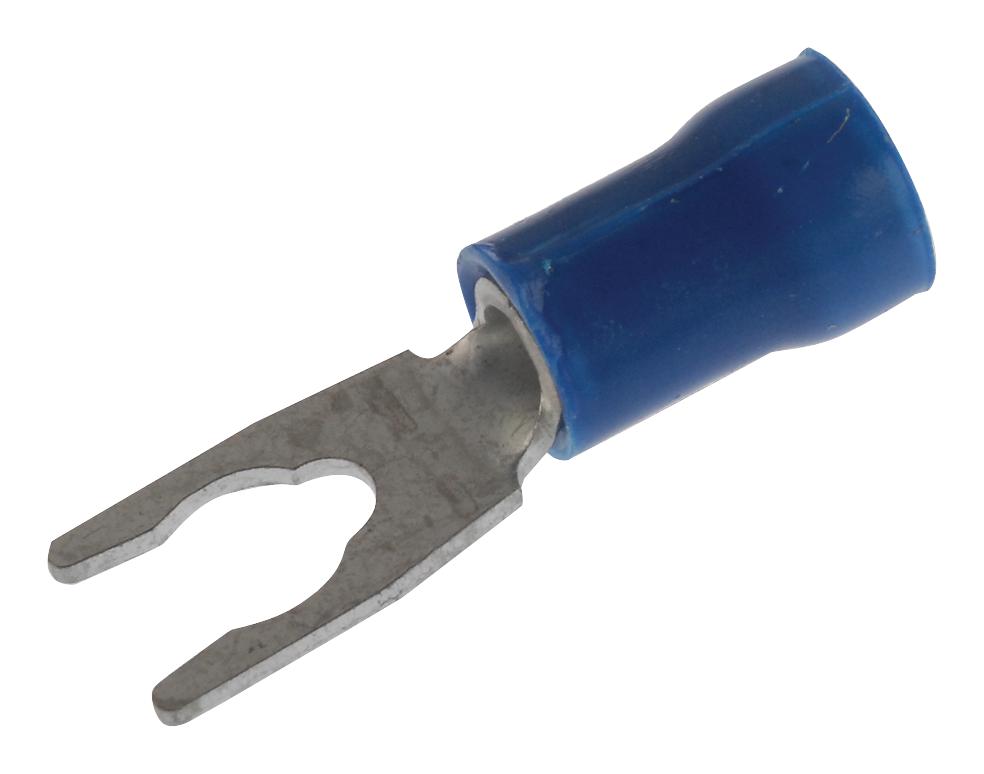

MOLEX 190990035 InsulKrimp Snap Spade Terminal
The MOLEX 19099-0035 InsulKrimp Snap Spade Terminal is a solderless termination solution designed for reliable connections in a variety of applications. This terminal is specifically engineered for use with 16-14 AWG wire and a stud size of 10 (M5), offering a secure and robust connection. The mylar tape carrier simplifies handling and assembly, making it ideal for automated processes. Its robust construction and reliable crimp design ensure long-lasting performance in demanding environments. Commonly used in automotive, industrial equipment, and consumer electronics.
MOLEX 190990035 InsulKrimp Snap Spade Terminal Specifications:
- status: Active
- overview: Solderless Terminals
- description: InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 10 (M5), Mylar Tape Carrier, Length 23.34mm, Blue
- series: 19099
- wire_size_awg: 14, 16
- stud_size: 10 (M5)
- wire_insulation_diameter: 4.40mm max.
- material_plating_mating: Tin
- net_weight: 0.859/g
- packaging_type: Adhesive Tape on Reel
- material_insulation: PVC
- flammability: 94V-0
- barrel_type: Closed
- color_resin: Blue
- crimp_quality_equipment: Yes
- mil_spec: N/A
- product_name_original: InsulKrimp
- type: Spade Snap
- upc: 800753089242
- engineering_number: BB-2717-10XT
- product_specification: PS-19902-009-001, PS-19902-011-001, PS-19902-015-001
- sales_drawing: BBCD20503
- eu_elv: Not Relevant
- eu_rohs: Not Reviewed
- reach_svhc: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
- application_tooling_description: ATP Crimp Dies for the Tape Crimp Module and ATP-101 & 301 Press, Mini-Mac Applicator
- application_tooling_product_number: 192880123, 638850400
