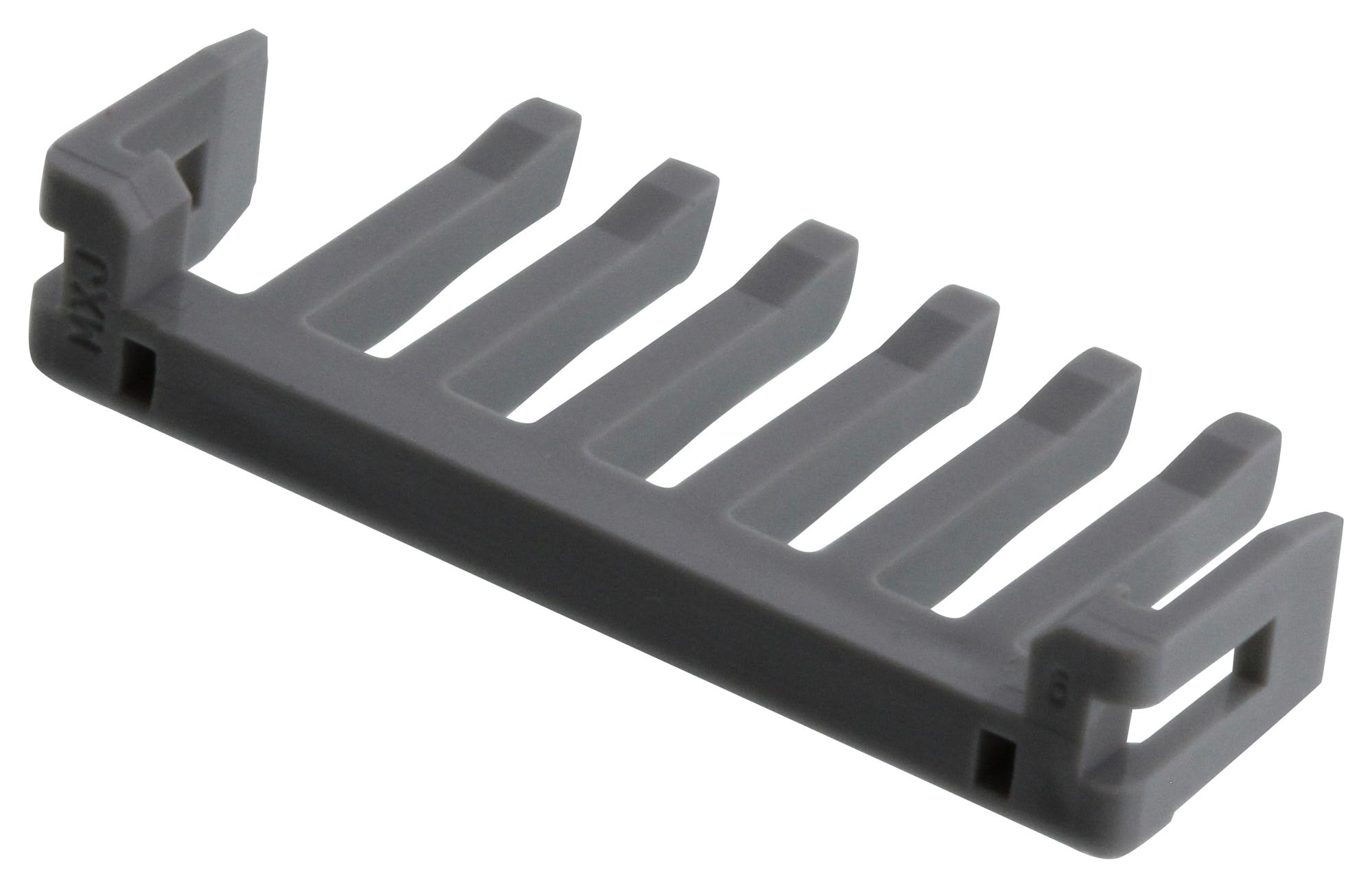

MOLEX 5008170605 Wire-to-Wire Connector
The 500817 series is a compact 2.50mm pitch wire-to-wire connector with a built-in terminal position assurance (TPA) retainer, ensuring secure and reliable connections for electronic assemblies. Crafted from durable grey polyester resin, it supports a maximum current of 3A per contact and operates efficiently within a temperature range of -40°C to +85°C. Designed for use with specific receptacle and plug housings, this connector system is ideal for applications requiring precise circuit isolation, secure mating, and high-reliability wire connections in industrial and consumer electronics.
MOLEX 5008170605 Wire-to-Wire Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 6
- Maximum Circuits: 6
- Color - Resin: Gray
- Material - Resin: Polyester
- Operating Temperature Range: -40°C to +85°C
- Current - Maximum per Contact: 3A
- Net Weight: 171.60 mg
- Packaging Type: Bag
- Reference Drawing Number: PS-500592-001-001
- RoHS Compliant: Yes
- Halogen-Free: No
- Suitable for use with receptacle housings 500592 and plug housings 500593
Buy the Molex Series 500817 Wire-to-Wire Connector: 5008170605
Enhance your electronic assemblies with this high-reliability wire-to-wire connector featuring a 2.50mm pitch and terminal position assurance. Made from durable polyester resin, it supports a maximum current of 3A per contact, operating reliably within -40°C to +85°C. Suitable for use with specific receptacle and plug housings, it ensures secure mating and circuit integrity, perfect for industrial, consumer, and automation applications. Order online today to supply your projects with dependable, easy-to-mate connectors engineered for performance.
Order your Molex Series 500817 wire-to-wire connector today and benefit from secure, high-quality electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5008170605?
You can click on the BUY or RFQ button to purchase 5008170605 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5008170605?
You can download the 5008170605 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5008170605?
MOLEX
