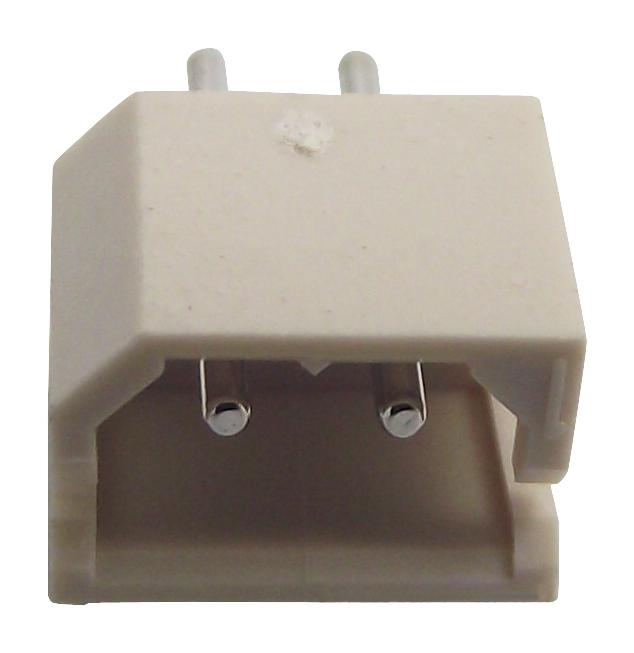

MOLEX 99990986 Mini-SPOX Connector
The Mini-SPOX Wire-to-Board Connector System by Molex features a 2.50mm pitch with a shrouded, vertical header that supports two circuits. Constructed with durable nylon resin, it is plated with tin for reliable electrical contact and corrosion resistance. Designed for ease of mating, it withstands up to 30 mating cycles and operates within a temperature range of -40°C to +105°C. Suitable for signal applications needing high current capacity up to 3.0A per contact and a maximum voltage of 250V, it is RoHS compliant and UL/CSA certified.
MOLEX 99990986 Mini-SPOX Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 2
- Color - Resin: Natural
- Material - Resin: Nylon
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Durability: 30 mating cycles
- Temperature Range: -40°C to +105°C
- Maximum Current per Contact: 3.0A
- Maximum Voltage: 250V
- Flammability: 94V-0
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- PCB Thickness - Recommended: 1.60mm
- PC Tail Length: 3.50mm
- Oriented vertically
- Shrouded: Yes
- Surface Mount Compatible (SMC): No
- Stackable: No
Buy the Molex Series Mini-SPOX Signal Connector: 99990986
Enhance your electronic assemblies with the Molex Mini-SPOX Connector, featuring a 2.50mm pitch and two circuits for versatile signal applications. This shrouded, vertical header boasts a robust nylon body with tin plating for excellent electrical performance and corrosion resistance. Capable of handling up to 3.0A per contact at 250V, it supports up to 30 mating cycles and operates reliably between -40°C to +105°C. RoHS compliant and UL/CSA certified, it's ideal for durable and safe electronic wiring connections.
Order your Molex Series Mini-SPOX signal connector today and ensure reliable connections with high current capacity and durable design for your projects.
