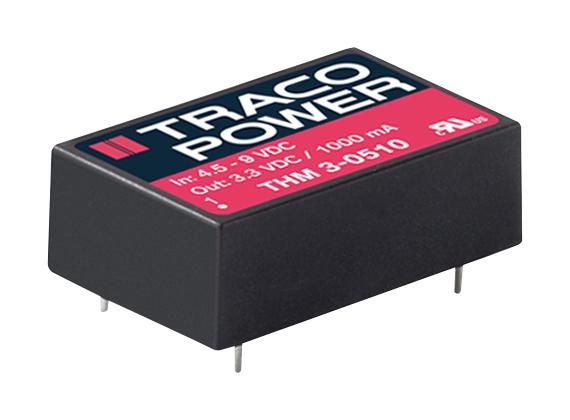

TRACO POWER THM30511 medical power converter
The THM-3 series comprises medical-grade 3 Watt DC/DC converters housed in a compact DIP-24 plastic case, offering wide 2:1 input voltage range, reinforced 5000 VACrms isolation, and extremely low leakage current below 2 microamps. Conforming to IEC/EN/ES 60601-1 3rd edition for 2x MOPP, these converters come with ISO 14971 risk management files and ISO 13485 quality compliance. Operating reliably from -40°C to +90°C, they serve medical, transportation, and measurement applications with high efficiency up to 87.5%, ensuring dependable power in demanding environments.
TRACO POWER THM30511 medical power converter Specifications:
- Input Voltage Range: 3.3 VDC to 24 VDC
- Output Voltage: 3.3 VDC, 5 VDC, 12 VDC, 15 VDC, 24 VDC
- Maximum Output Current: 125 mA to 1000 mA depending on model
- Efficiency: Up to 87.5%
- Isolation Voltage: 5000 VACrms rated, 250 VACrms working voltage
- Leakage Current: Less than 2 μA
- Ambient Temperature Range: -40°C to +90°C
- Start-up Voltage: 4.5 VDC to 36 VDC depending on model
- Short Circuit Protection: Continuous, automatic recovery
- Over Voltage Protection: Available on some models, e.g., 33 V, 50 V outputs
- Switching Frequency: 150 kHz ±15 kHz
- Humidity: 5% to 95% relative humidity
- Dimensions: Compact DIP-24 plastic package
- Certifications: IEC/EN/ES 60601-1, ISO 13485, ISO 14971
- Potting Material: Silicone, UL94 V-0 rated
- Soldering Temperature: 265°C for max 10 seconds
- Compliance: RoHS 2011/65/EU, tested for vibration and thermal shock
- Reliability: MTBF over 6 million hours
Buy the Traco Power THM-3 Series – Reliable Medical DC/DC Converter for Industrial Applications
Discover the trusted Traco Power THM-3 Series 3 Watt medical-grade DC/DC converters available online. Engineered with reinforced isolation, low leakage current, and high efficiency up to 87.5%, these compact converters guarantee reliable performance in demanding medical, transportation, and measurement environments. Ensure safety and durability in your critical applications by purchasing these certified power solutions online today. Fast shipping and excellent customer support make it easy to upgrade your equipment with trusted power modules designed for excellence.
Order your Traco Power THM-3 Series 3 Watt medical-grade DC/DC converter today and ensure your medical and industrial projects operate with dependable power and safety.
Frequently Asked Questions
Where can I buy TRACO POWER THM30511?
You can click on the BUY or RFQ button to purchase THM30511 from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part THM30511?
You can download the THM30511 datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of THM30511?
TRACO POWER
