TRACO POWER TMPW10112J Power Supply Module
The TMPW 10-J Series is a compact, 10-watt AC/DC power supply module designed for industrial and household applications. It features a wide input voltage range of 90-305 VAC, high efficiency up to 86%, and operates reliably in temperatures from -40°C to +70°C. Certified according to IEC/EN/UL standards, it offers reinforced insulation, a 47000 VAC isolation voltage, and internal filters for EMI compliance. Its small plastic case, low no-load power consumption below 0.1W, and versatile outputs make it ideal for space-sensitive, safety-conscious environments.
TRACO POWER TMPW10112J Power Supply Module Specifications:
- Input Voltage AC Range: 90 - 305 VAC, DC Range: 100 - 250 VDC (264 VAC max.)
- Input Frequency: 47 - 63 Hz (designed to meet 47 - 440 Hz)
- Output Power: 10 Watts, Output Voltages: 5V, 12V, 15V, 24V
- Output Current: 2A (5V), 0.83A (12V), 0.67A (15V), 0.42A (24V)
- Efficiency: up to 86%
- Ripple & Noise: 60-240 mVp-p depending on model
- Isolation Voltage: 47000 VAC
- Operating Temperature Range: -40°C to +70°C
- Protection Class: II, Safety Certifications: IEC/EN/UL 62368-1, EN 60335-1
- Dimensions: 2.17 x 1.08 inches (55.1 x 27.4 mm), Weight: 65g
- Power Consumption at No Load: <0.1W, Inrush Current: 60A at 230 VAC
- Short Circuit Protection: Continuous, automatic recovery
- Overvoltage Protection: 105-145% of Vout Nominal
- EMC Immunity & Emissions: EN 55032 class B, EN 61000 series
- Housing Material: UL 94 V-0 rated plastic, Potting Material: Silicone

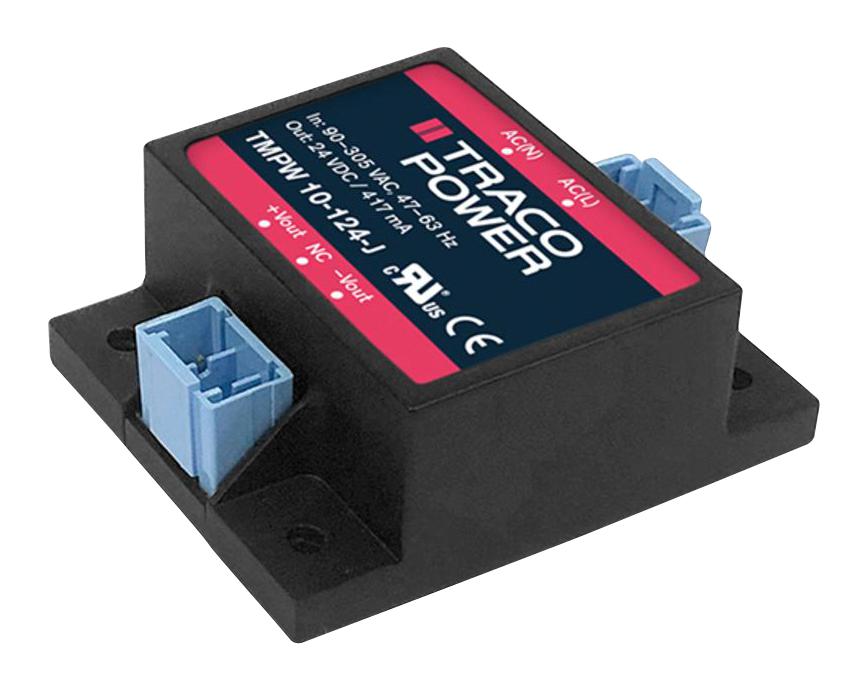

Buy the Buy TracoPower TMPW 10-J Part Number TMPW10112J Online
Order the TracoPower TMPW 10-J power supply online today for a compact, reliable, and energy-efficient solution suited for industrial and household technology. With an input range of 90-305 VAC, high efficiency up to 86%, and reinforced insulation, this 10-watt module ensures safety, durability, and space-saving design. Its certifications include IEC/EN/UL 62368-1 and EN 60335-1, making it compliant with global safety standards. Suitable for a wide range of applications, it offers low standby power, internal EMI filters, and a robust operating temperature range from -40°C to +70°C. Perfect for demanding technical environments requiring compact and certified power solutions.
Get TracoPower TMPW 10-J today—high-efficiency, compact power supply for reliable industrial and household applications.
Frequently Asked Questions
Where can I buy TRACO POWER TMPW10112J?
You can click on the BUY or RFQ button to purchase TMPW10112J from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TMPW10112J?
You can download the TMPW10112J datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TMPW10112J?
TRACO POWER
