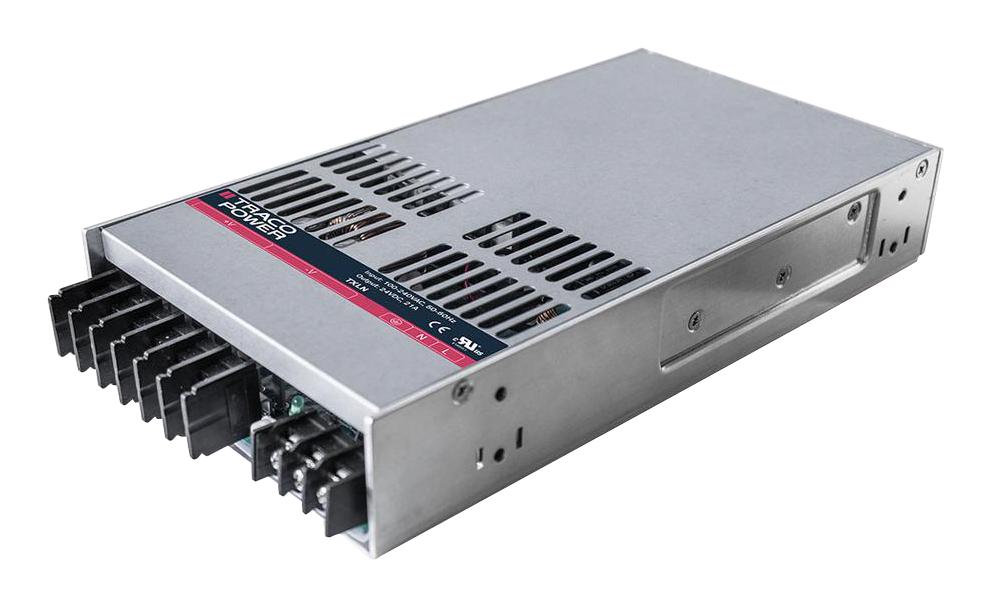

TRACO POWER TXLN500148 Power Supply
The TXLN 500 series is a family of compact, encased power supplies suitable for cost-sensitive applications. Featuring a low-profile metal casing and screw terminal connections, they allow easy installation in various equipment. These power supplies support universal input voltage (85-264VAC) and adhere to European EMC standards and the Low Voltage Directive (LVD). Key features include active Power Factor Correction (PFC) greater than 0.95, high efficiency up to 91%, and compliance with EN 61000-3-2. They offer protection against short circuits, overvoltage, and overload, with safety approvals according to IEC/EN/UL 62368-1, operating within -30°C to +70°C, and rated for 500W output power.
TRACO POWER TXLN500148 Power Supply Specifications:
- Input Voltage: 85 - 264 VAC, 120 - 375 VDC
- Input Frequency: 50-63 Hz
- Output Power: 500 W
- Output Voltage: 48 VDC
- Output Current: 10,500 mA
- Efficiency: Up to 91%
- Active PFC: >0.95
- Protection: Short circuit, overvoltage, overload
- Isolation Test Voltage: 3000 VAC input to earth, 1800 VAC input to case
- Operating Temperature: -30°C to +70°C
- Cooling: Forced air with internal fan
- Enclosure: Aluminum housing
- Certification: IEC/EN/UL 62368-1, EN 61000-6-3, EN 61000-6-1
- Protection Class: Class I, Pollution Degree 2, Overvoltage Category II
- Dimensions: Not specified, compact low-profile design
- Weight: Not specified
Buy the Traco Power Series TXLN 500 Power Supply: 500 Watt 48 VDC
Order the Traco Power TXLN 500 series 500W power supply online today and ensure your equipment benefits from high efficiency, active PFC, and proven safety standards. This compact, robust power supply features universal AC input (85-264VAC), high-level protection against short circuits, overvoltage, and overloads, along with a reliable aluminum housing. Easy to install with screw terminals, it’s ideal for industrial and automation applications. Enjoy the convenience of fast online purchasing, quick delivery, and 3-year warranty to keep your operations running smoothly and efficiently.
Buy Traco Power TXLN 500 power supply now and experience unmatched reliability and high efficiency for your industrial or cost-sensitive applications.
