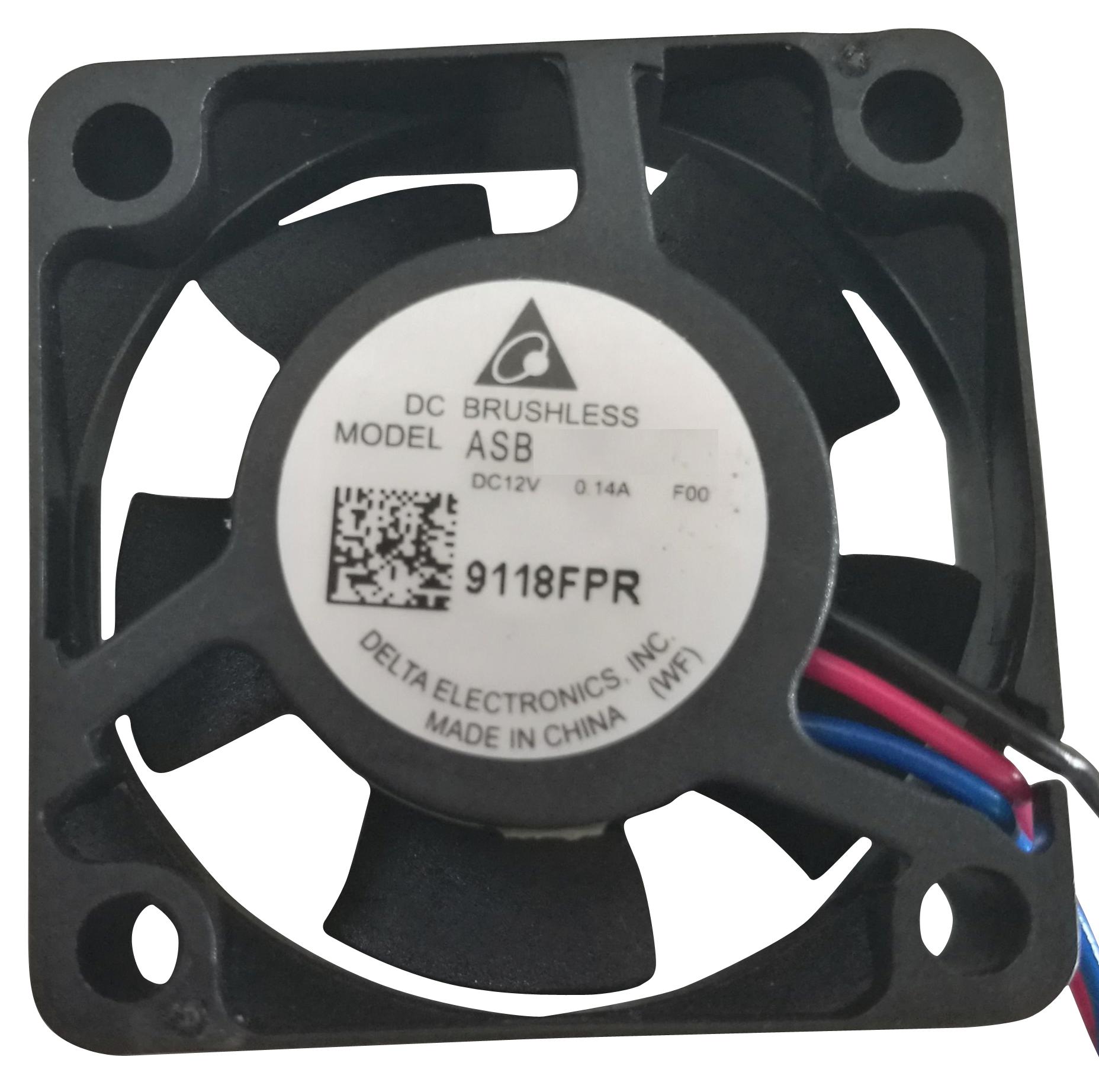

DELTA ELECTRONICS / FANS ASB0312LADF00 DC Brushless Fan
The product is a 12V DC brushless fan designed for various cooling applications in electronics and industrial equipment. Engineered with UL: Class A insulation, it features a sleeve bearing system, open external cover, and a lifespan of approximately 20,000 hours at 40°C and 65% RH. It operates within a voltage range of 7.0 to 13.2 VDC, producing a maximum airflow of 0.091 m3/min and generating an acoustical noise level up to 25.5 dB-A. Compact and lightweight, it is suitable for environments requiring reliable, low-noise airflow with excellent durability and safety features.
DELTA ELECTRONICS / FANS ASB0312LADF00 DC Brushless Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage: 7.0 - 13.2 VDC
- Minimum Start Voltage: 7.0 VDC
- Input Current: 0.05A (max 0.10A safety current label)
- Input Power: 0.60W (max 1.20W)
- Speed: 8000-4150 RPM
- Max Air Flow: 0.091 m3/min
- Air Flow at Zero Static Pressure: 3.21 CFM
- Max Air Pressure: 3.33 mmH2O
- At Zero Airflow: 0.131 inch H2O
- Acoustical Noise (Average): 21.0 dB-A (max 25.5 dB-A)
- Insulation Type: UL Class A
- Insulation Strength: 10 Mega Ohm min at 500 VDC
- Dielectric Strength: 5 mA max at 500 VAC
- External Cover: Open type
- Life Expectancy: 20,000 hours at 40°C and 65% RH
- Rotation: Counterclockwise from front view
- Lead Wires: UL 1061 AWG #28 (Black negative, Red positive, Blue frequency)
- Dimensions: Refer to drawing, approximate size with a 30mm frame width
- Material: Plastic UL: 94V-0
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +75°C
- Operating Humidity: 5% to 90% RH
- Storage Humidity: 5% to 95% RH
- Protection Features: Locked rotor protection, polarity protection
- RoHS Compliant
- Production Locations: China, Thailand
Buy the Delta Series ASB0312LA-D Fan: ASB0312LA-D F00
Purchase the Delta Series ASB0312LA-D fan online today and benefit from durable, low-noise operation with a lifespan of 20,000 hours. Designed for efficient cooling with a maximum airflow of 0.091 m3/min and operating voltage of 12V DC, this fan features UL Class A insulation and locked rotor protection. Its compact size and lightweight construction make it ideal for electronics, industrial equipment, and cooling systems. Buy now to ensure reliable performance and uninterrupted operation in your critical applications.
Order your Delta Series ASB0312LA-D fan today and ensure reliable, low-noise cooling for your electronic and industrial projects.
