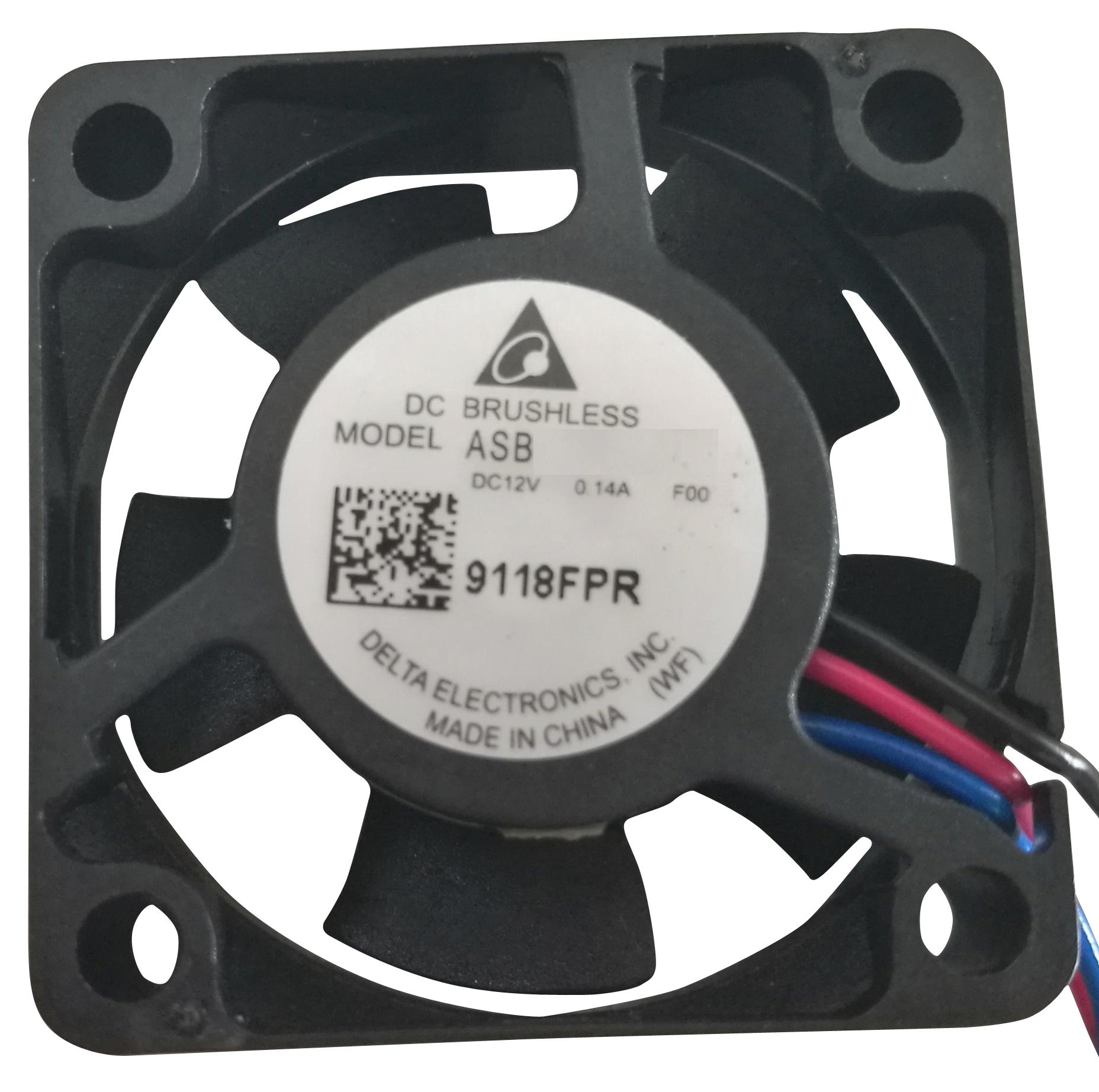

DELTA ELECTRONICS / FANS ASB0312MADF00 Industrial Cooling Fan
This high-performance 12V DC brushless fan features a sleek open type design, UL: Class A insulation, sleeve bearing system, and a lifespan of approximately 20,000 hours at 40°C with 65% RH. It operates efficiently with a rated voltage of 12V DC, an operational range of 7.0 to 13.2V DC, and a speed of around 9000 RPM. Compact and lightweight at 7.4 grams, it is suitable for various industrial cooling applications, offering excellent airflow, low noise levels, and robust environmental resilience.
DELTA ELECTRONICS / FANS ASB0312MADF00 Industrial Cooling Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage: 7.0 - 13.2 VDC
- Minimum Start Voltage: 7.0 VDC
- Input Current: 0.06 (max 0.12) A
- Input Power: 0.72 (max 1.44) W
- Speed: 9000+15% RPM
- Max Air Flow: 0.105 m3/min (3.72 CFM)
- Min Air Flow: 0.089 m3/min (3.16 CFM)
- Max Air Pressure: 4.25 mmH2O
- Min Air Pressure: 3.07 mmH2O
- Acoustical Noise: 23.0 dB-A (max 27.5 dB-A)
- Insulation Type: UL Class A
- Insulation Strength: 10 Meg Ohm min. at 500 VDC
- Dielectric Strength: 5 mA max. at 500 VAC for 1 min
- External Cover: Open type
- Life Expectancy: 20,000 hours continuous
- Rotation: Counterclockwise from front view
- Lead Wires: UL 1061 AWG #28 (Black Negative, Red Positive, Blue Frequency)
- Dimensions: Refer to detailed drawing
- Material: Plastic UL: 94V-0
- Bearing System: Sleeve bearing
- Environmental Operating Temp: -10°C to +70°C
- Storage Temp: -40°C to +75°C
- Operating Humidity: 6% to 90% RH
- Storage Humidity: Up to 95% RH
- Protection: Locked rotor, Polarity resistant
- Standards: RoHS Compliant, UL 1061
Buy the Delta ASBO312MA-DF00 – Reliable Cooling Fan for Industrial Applications
Enhance your industrial cooling solutions with the reliable Delta cooling fan. Designed for high efficiency, low noise, and long lifespan, this 12V DC brushless fan is perfect for maintaining optimal equipment performance. Its UL Class A insulation and sleeve bearing system ensure safety and durability in demanding environments. Easy to install and maintain, this fan offers excellent airflow and pressure capabilities, making it an ideal choice for electronics enclosures, HVAC, and manufacturing systems. Order online now for fast delivery and guaranteed quality.
Order your Delta SeriesASBO312MA-DF00 today and give your projects the dependable cooling performance they deserve.
