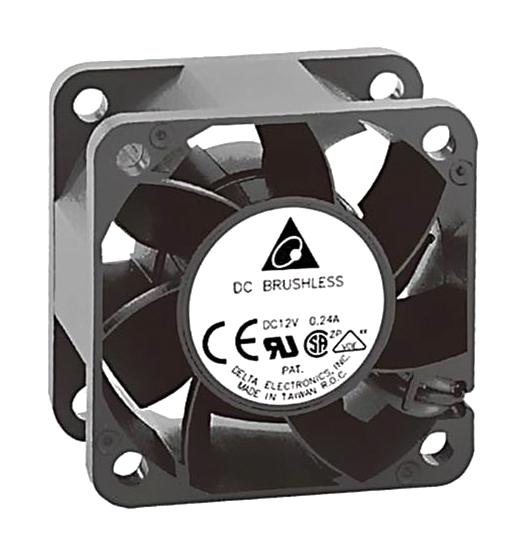

DELTA ELECTRONICS / FANS FFB0412VHNB Axial Flow Fan
The DC brushless axial flow fan model FFB0412VHN-B is designed for reliable thermal management in electronic and industrial applications. It features a 12 VDC rated voltage, operating across a voltage range of 4.5 to 13.2 VDC, with a maximum current of 0.24 A and an input power of 1.92 W. The fan includes two ball bearings, UL Class A insulation, and an open plastic enclosure. It offers an operating temperature of -10°C to +70°C, a lifespan of 70,000 hours, and a noise level around 45 dB. Its dimensions, lightweight build (32 grams), and environmental protections make it suitable for demanding environments.
DELTA ELECTRONICS / FANS FFB0412VHNB Axial Flow Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage: 4.5 - 13.2 VDC
- Maximum Current: 0.24 A
- Input Power: 1.92 W
- Speed: 9500 ±8% RPM
- Air Flow: 0.447 M3/Min (Min. 0.402), 15.79 CFM (Min. 14.20)
- Maximum Air Pressure: 12.94 mmH2O (Min. 10.49), 0.509 inchH2O (Min. 0.413)
- Acoustical Noise (Avg.): 45.0 dB-A (Max. 49.0)
- Insulation Type: UL Class A
- External Cover: Open Type
- Life Expectance: 70,000 hours at 40°C with 15-65% RH
- Rotation: Clockwise view from nameplate side
- Lead Wires: UL 1007, AWG #24 (Black negative, Red positive)
- Dimensions: Refer to detailed drawing, approx. 32 grams weight
- Housing: Plastic UL: 94V-0
- Bearing System: Two ball bearings
- Environmental Conditions: -10°C to +70°C operating, -40°C to +75°C storage, 5-90% RH operating, 5-95% RH storage
- Protection: Locked rotor protection, Polarity protection
- Production Locations: China, Thailand, Taiwan
- Reliability Measures: Thermal cycling, humidity, vibration, shock, life testing under specified conditions
- Durability: Designed for continuous operation, minimal risks of failure when correctly handled and mounted
Buy the Delta FFB0412VHN-B – Reliable Axial Flow Fan for Industrial Applications
Enhance your electronic cooling systems with the high-quality Delta axial flow fan FFB0412VHN-B. Engineered for durability and efficient airflow, this 12 VDC fan features two ball bearings for long-lasting performance, UL Class A insulation, and an open plastic cover for optimal airflow. Suitable for industrial environments, it offers a lifespan of 70,000 hours, operates at low noise levels, and withstands a wide temperature range. Easily integrate into your designs to ensure effective thermal management and reliable operation for continuous device performance.
Order your Delta Series FFB0412VHN-B today and give your electronic cooling projects the dependable quality they deserve.
