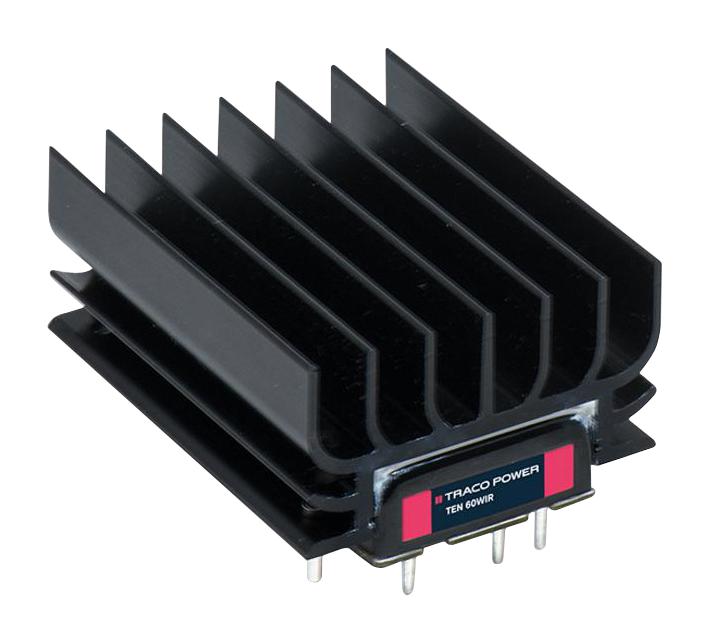

TRACO POWER TEN607213WIR Railway Power Converter
The TEN 6OWIR Series is a rugged 60 Watt railway-approved DC/DC converter offering a wide 4:1 input voltage range from 9-36V, 18-75V, or 36-160VDC. It features high efficiency up to 92%, with an operating temperature range of -40°C to +70°C without derating thanks to a preassembled heatsink. Certified for EN 50155 and EN 61373 railway standards, it ensures electromagnetic interference immunity, shock resistance, and thermal robustness. The converter provides adjustable outputs, 3,000 VDC I/O isolation, under-voltage lockout, remote On/Off, and operates reliably in harsh environments, making it ideal for transportation systems.
TRACO POWER TEN607213WIR Railway Power Converter Specifications:
- Input Voltage Range: 9-36, 18-75, 36-160 VDC
- Output Power: 60 Watt
- Efficiency: Up to 92%
- Isolation Voltage: 3,000 VDC
- Operating Temperature: -40°C to +70°C without derating
- Case Size: 2" x 1" metallic package
- Adjustable Output Voltage: ±10% to +20%
- Remote On/Off Control: Yes
- Overvoltage Protection: 124-133% of Vout
- Short Circuit Protection: Continuous, auto-recovery
- Efficiency: 91-94% depending on model
- Vibration & Shock Resistance: EN 61373 certified
- Fire Qualification: EN 45545-2 compliant
- Input Surge Voltage: Up to 200 VDC for 1 second
- Start-up Time: 30 ms typical
Buy the Buy TRACO POWER DC/DC Converter Part Number TEN607213WIR Online
Discover the high-performance TRACO POWER railway approved 60 Watt DC/DC converter, model TEN 6OWIR. Designed for harsh environments, it offers a wide input range, up to 92% efficiency, and robust electrical insulation. Its certified standards for railway and electromagnetic compatibility ensure safety and reliability in all transportation systems. Featuring adjustable output voltages, remote On/Off, and superior shock or vibration resistance, this compact converter is perfect for demanding industrial and transit applications. Purchase online today for secure, dependable power solutions.
Order your TRACO POWER Series TEN 6OWIR 60 Watt converter today and ensure reliable power delivery for railway and transportation applications.
Frequently Asked Questions
Where can I buy TRACO POWER TEN607213WIR?
You can click on the BUY or RFQ button to purchase TEN607213WIR from an authorized TRACO POWER distributor.
How do I troubleshoot issues or seek technical support for part TEN607213WIR?
You can download the TEN607213WIR datasheet or visit the TRACO POWER website for support.
Who is the manufacturer of TEN607213WIR?
TRACO POWER
