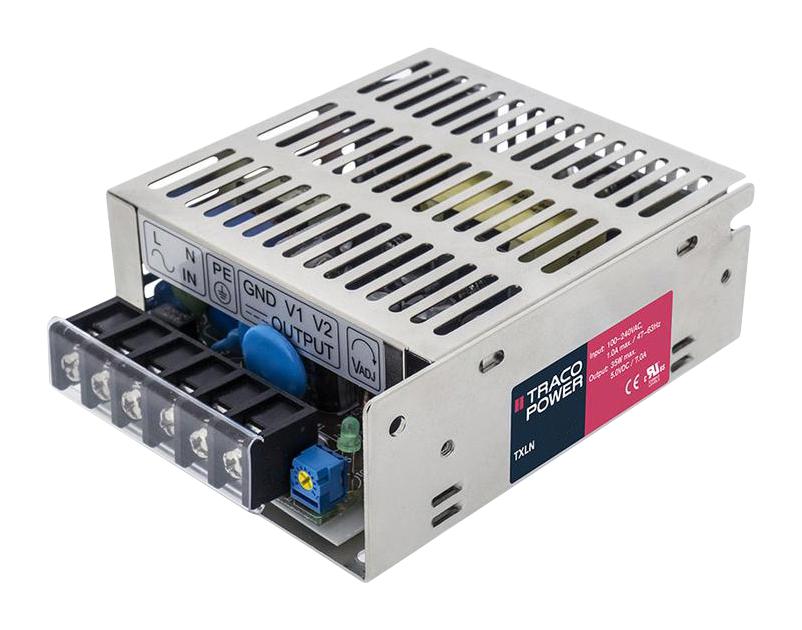

TRACO POWER TXLN035124 power supply
The TXLN 035 series is a family of compact, encased power supplies suitable for cost-sensitive applications. Featuring a low-profile metal enclosure and screw terminal connections, these units are easy to install. They support universal input voltages (88-264VAC) and comply with European EMC standards and the Low Voltage Directive (LVD). The power supplies are convection-cooled (fanless), with high efficiency up to 85%. They meet EN 61000-3-2 standards and include protections against short circuits, overvoltage, and overloads. Approved under IEC/EN/UL 62368-1 safety standards, they come with a 3-year warranty. The device is class I (prepared for PE connection), rated for Pollution Degree 2 and Overvoltage Category II. Operating temperature ranges from -20°C to +70°C, featuring a switching frequency between 58kHz and 72kHz (PWM). Built with an aluminum housing, this power supply provides reliable performance in various environments.
TRACO POWER TXLN035124 power supply Specifications:
- Input Voltage Range: 88 - 264 VAC
- Input Frequency: 47 - 63 Hz
- Output Power: 24 VDC, 1,500 mA, 36 W
- Efficiency: Up to 86%
- Power Consumption at No Load: 500 mW max
- Display: Green LED status indicator
- Output Voltage Adjustment: ±10%
- Regulation: 1% max. for single output models
- Ripple & Noise: 70-200 mVp-p depending on model
- Protection: Short circuit, overvoltage, overload
- Isolation: Input to Output 3,000 VAC, Input to Case 1,500 VAC
- Temperature Range: -20°C to +70°C
- Housing Material: Aluminum
- Cooling: Natural convection
- Dimensions: Approx. 94 x 50 x 30 mm
- Weight: 350 g
- Safety Standards: IEC/EN/UL 62368-1
Buy the Traco Power TXLN035124 – Reliable Power Supply for Industrial Applications
Purchase the Traco Power TXLN 035124 power supply online today and ensure your equipment has a dependable, efficient power source. This high-quality, convection-cooled unit offers up to 86% efficiency, universal input compatibility (88-264VAC), and is protected against short circuits, overloads, and overvoltage conditions. Its compact aluminum case allows easy installation, making it suitable for industrial, automation, and cost-sensitive applications. With IEC/EN/UL safety certifications and a 3-year warranty, this power supply guarantees reliable performance in demanding environments. Order now for quick delivery and peace of mind.
Buy Traco Power TXLN035124 now and experience unmatched reliability and performance for your industrial power needs.
