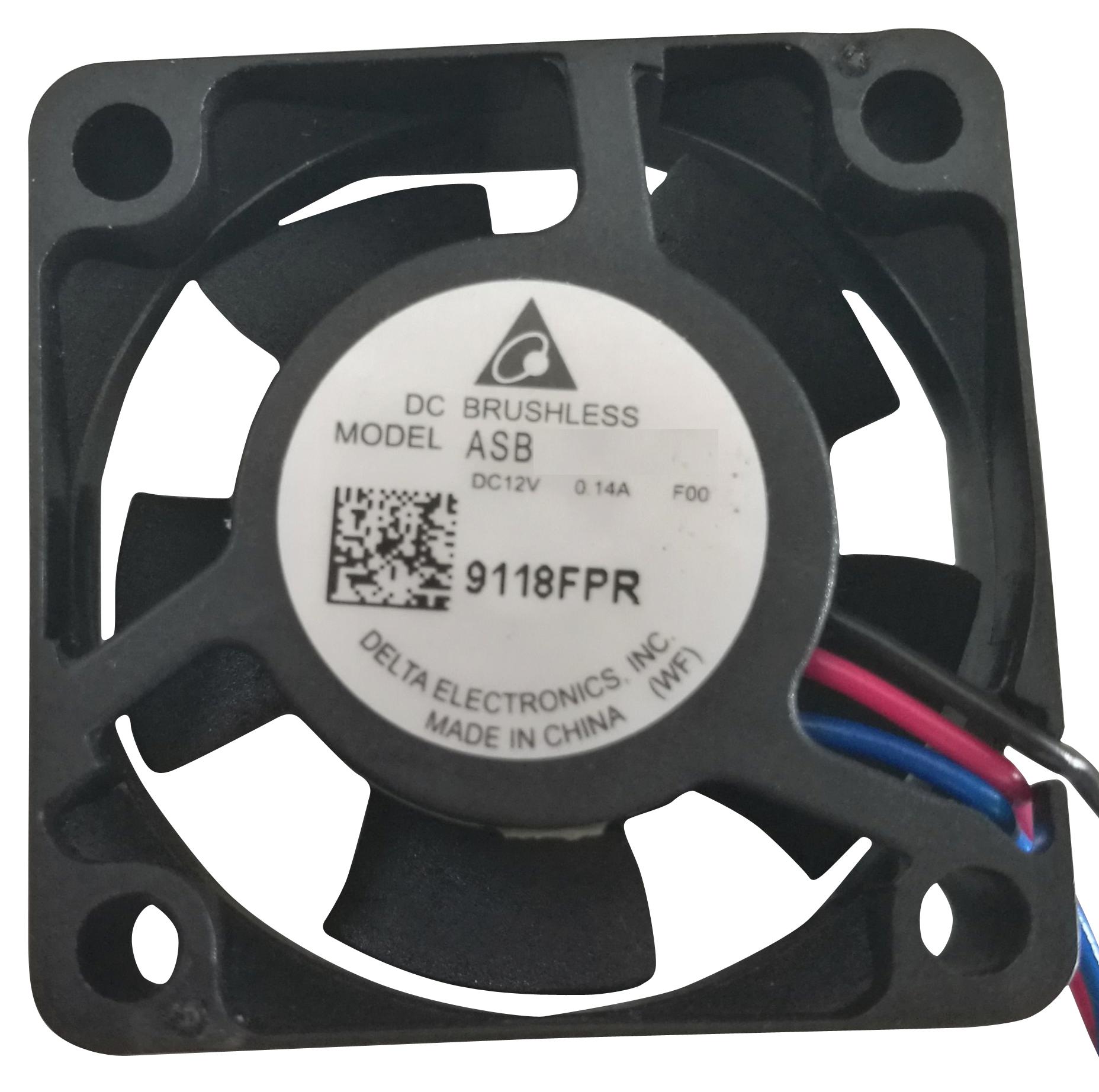

DELTA ELECTRONICS / FANS ASB0312HADF00 Axial Cooling Fan
This axial flow DC fan features a 12VDC rated voltage with an operational voltage range of 7.0 to 13.2VDC. It offers a speed of approximately 10500 to 14515 RPM, maximum airflow of 0.122 m³/min, and a max noise level of 32 dB-A. Constructed with UL: Class A insulation, it includes a plastic frame and impeller, sleeve bearing system, and UL 1061 AWG #28 lead wires. Designed for continuous operation up to 20,000 hours at 40°C, it is suitable for cooling and ventilation in electronic applications, with features ensuring safety and durability.
DELTA ELECTRONICS / FANS ASB0312HADF00 Axial Cooling Fan Specifications:
- Rated Voltage: 12 VDC
- Operation Voltage: 7.0 - 13.2 VDC
- Minimum Start Voltage: 7.0 VDC
- Input Current: 0.07 (max. 0.14) A
- Input Power: 0.84 (max. 1.68) W
- Speed: 10500-14515 RPM
- Max Air Flow: 0.122 m³/min
- Max Air Pressure: 5.44 mmH20
- Sound Level: 27.0-32.0 dB-A
- Insulation: UL Class A
- Life Expectancy: 20,000 hours at 40°C, 65% RH
- Frame Material: Plastic UL: 94V-0
- Impeller Material: Plastic UL: 94V-0
- Bearing System: Sleeve bearing #42
- Lead Wires: UL 1061 AWG #28, black (negative), red (positive), blue (frequency)
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +75°C
- Humidity Operation: 5% to 90% RH
- Humidity Storage: 5% to 95% RH
- Rotation: Counterclockwise from front view
- Protection: Locked rotor and polarity protection
- External Cover: Open type
- Production Locations: China or Thailand
Buy the Delta Series Axial Cooling Fan: ASB0312HA-DF00
Order the Delta axial cooling fan today to enhance your electronic cooling systems. This high-performance 12VDC fan offers reliable operation, low noise levels, and a lifespan of up to 20,000 hours. Perfect for minimizing overheating in electronic devices, it features UL Class A insulation, durable plastic construction, and safe operation with built-in protection features. Easy to install and suitable for various industrial and consumer applications, ensuring your equipment stays cool and runs efficiently.
Buy Delta ASB0312HA-DF00 cooling fan now and ensure efficient, reliable airflow for your electronic cooling needs.
